Automatic Level Control Suspension Component Views

WARNING: This page is about a different car, the 2005 Buick LeSabre. However, it is still accessible from the selected car via links, so may be relevant.

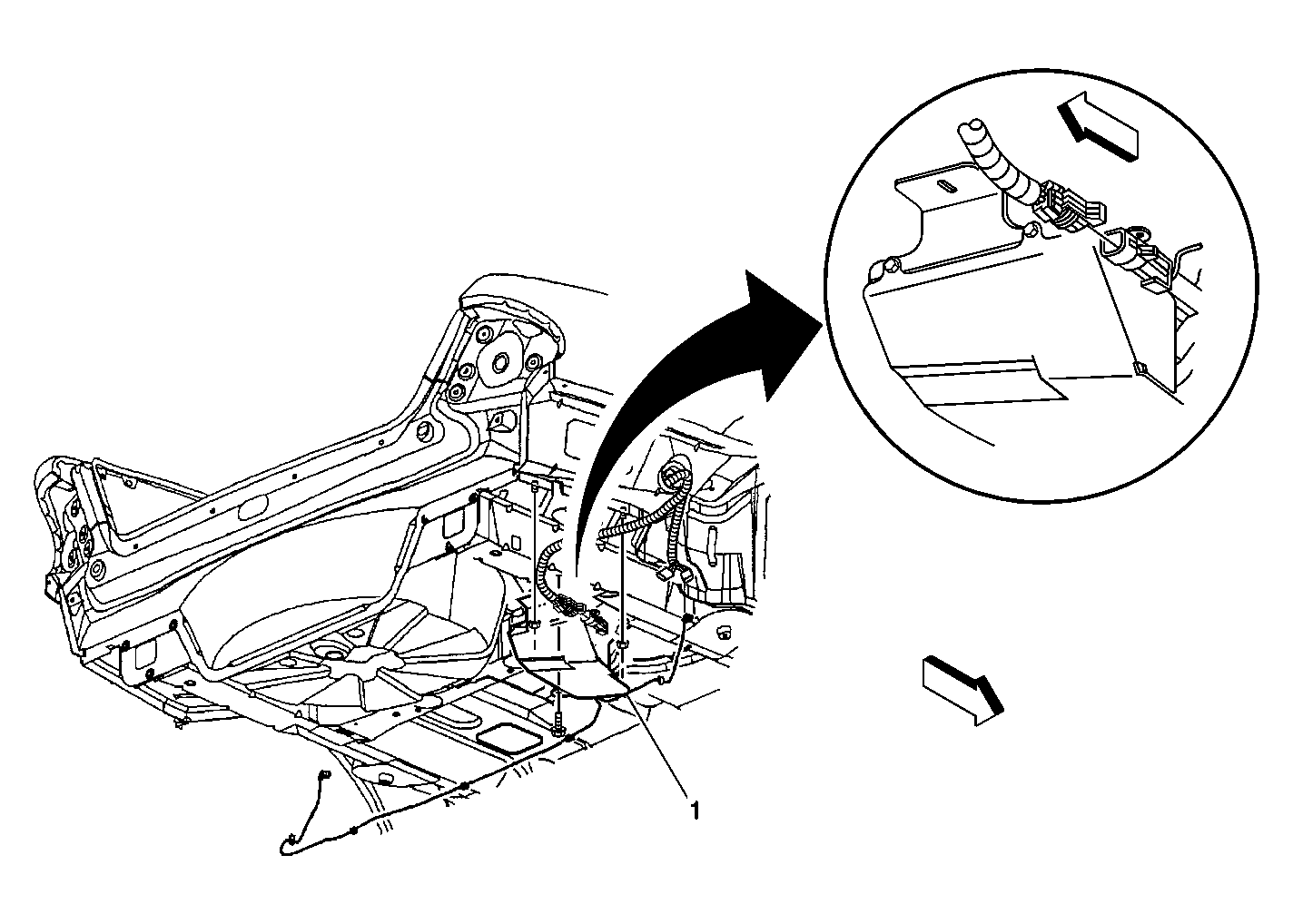

Fig 1: Automatic Level Control Compressor Assembly

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Auto Level Control Compressor Assembly

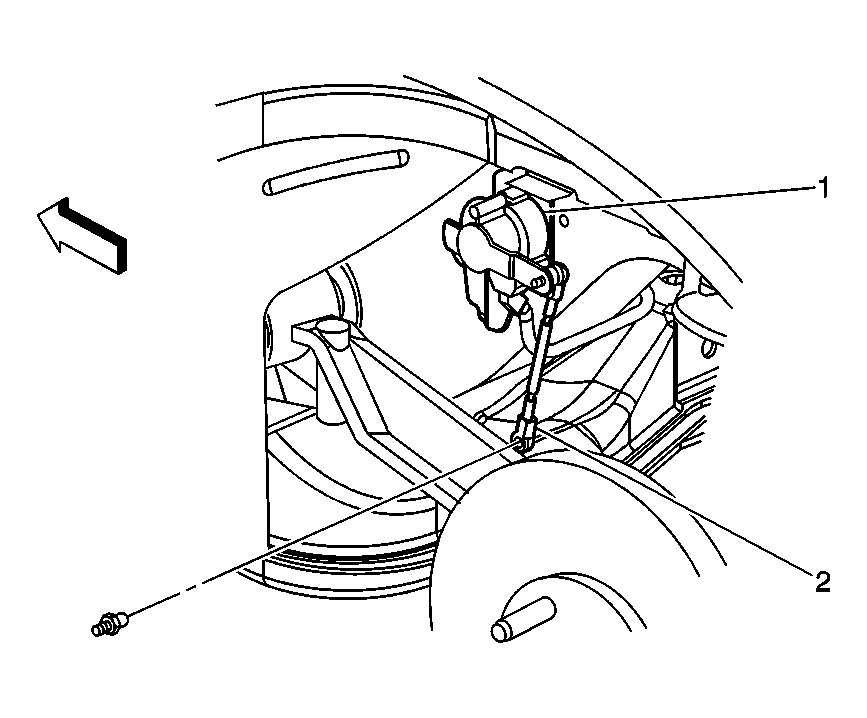

Fig 2: Suspension Position Sensor & Link (Under Left Rear of Vehicle)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Suspension Position Sensor
2	Suspension Position Sensor Link

Fig 3: Rear Integration Module (RIM)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Integration Module (RIM) C1
2	Rear Integration Module (RIM) C2
