Installation Procedure

WARNING: This page is about a different car, the 2005 Buick LeSabre. However, it is still accessible from the selected car via links, so may be relevant.

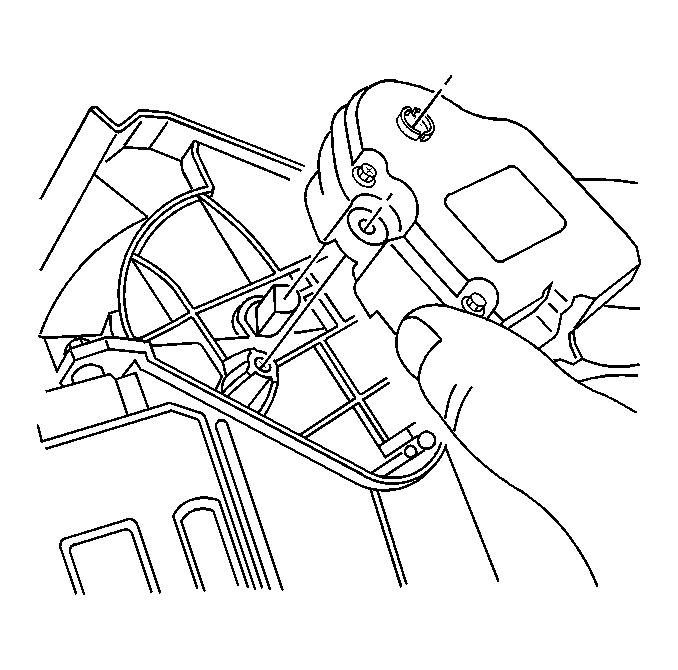

    Fig 1: Removing/Installing Actuator Assembly
    GM292146Courtesy of GENERAL MOTORS CORP.
  1. Install the recirculation actuator.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the recirculation actuator retaining screws (1).

    Tighten:  Tighten the screws to 1.4 N.m (12 lb in).

  3. Connect the electrical connector to the recirculation actuator.

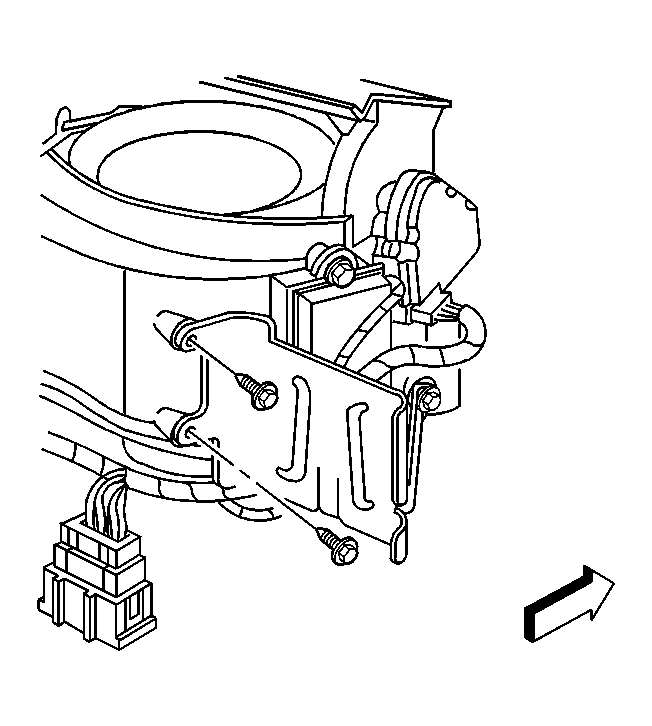

    4. Fig 2: View Of HVAC Module
    GM291175Courtesy of GENERAL MOTORS CORP.
  4. Position the DIM module bracket to the original position.
  5. Install the rear two DIM module bracket screws.

    Tighten:  Tighten the screws to 1.4 N.m (12 lb in).

  6. Install the DIM module into the bracket.
  7. Install the right sound insulator. Refer to Closeout/Insulator Panel Replacement - Right in Instrument Panel, Gages and Console.
  8. Install the instrument panel compartment. Refer to Storage Compartment Replacement - Instrument Panel (I/P) in Instrument Panel, Gages and Console.
  9. Recalibrate the actuator. Refer to Re-Calibrating Actuators .
