Installation Procedure

WARNING: This page is about a different car, the 2005 Buick LeSabre. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the temperature sensor electrical connector.
  2. Install the inside air temperature sensor to the aspirator hose and turn clockwise 1/4 turn.

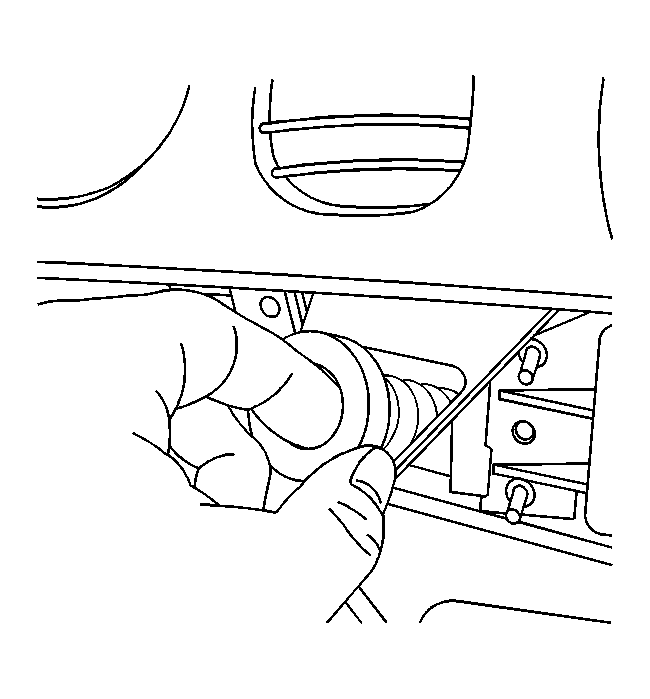

    3. Fig 1: View of Temperature Sensor Electrical Connector
    GM422259Courtesy of GENERAL MOTORS CORP.
  3. Install the aspirator hose into the instrument panel.
  4. Install the knee bolster. Refer to Knee Bolster Replacement in Instrument Panel, Gages and Console.
  5. Install the right instrument panel trim plate. Refer to Trim Plate Replacement - Instrument Panel (I/P) Accessory Right in Instrument Panel, Gages and Console.
