Removal Procedure

WARNING: This page is about a different car, the 2005 Buick LeSabre. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the right sound insulator. Refer to Closeout/Insulator Panel Replacement - Right In Instrument Panel, Gages and Console.
  2. Remove the instrument panel compartment. Refer to Storage Compartment Replacement - Instrument Panel (I/P) in Instrument Panel, Gages and Console.
  3. Remove the Dash Integration Module (DIM) from the bracket and position aside.
  4. Remove the rear DIM bracket screws and lower the bracket enough to access the blower module.

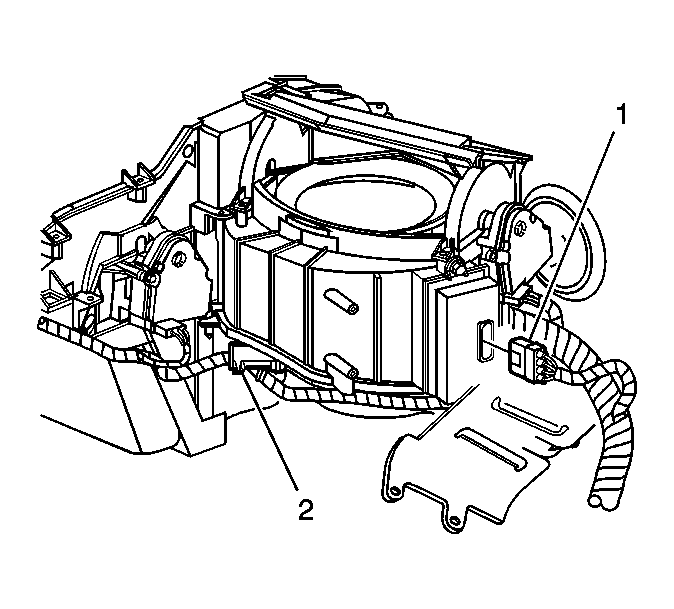

    5. Fig 1: View of Blower Control Module, and HVAC Module
    GM419246Courtesy of GENERAL MOTORS CORP.
  5. Disconnect the electrical connector (1).
  6. Remove the blower motor control processor retaining screw.
  7. Remove the blower motor control processor.
