Power Roof Systems Component Views
WARNING: This page is about a different car, the 2005 Buick LeSabre. However, it is still accessible from the selected car via links, so may be relevant.

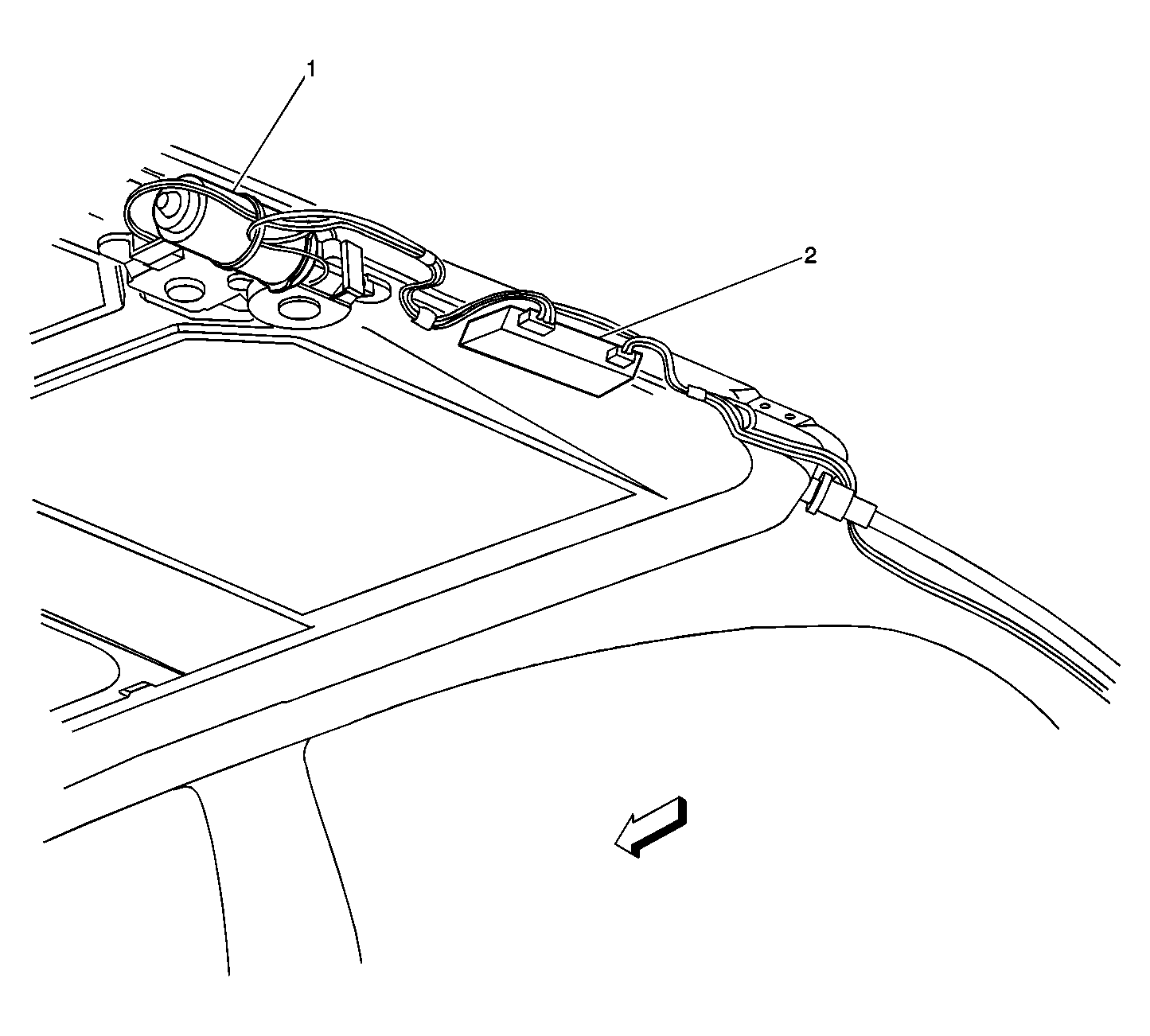

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Sunroof Motor |
| 2 |
Sunroof Module |
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Sunroof Switch |
| 2 |
Vanity Mirror - Front Passenger (on sunshade) |
| 3 |
Courtesy/Reading Lamp - Front Passenger |
| 4 |
Courtesy/Reading Lamp - Driver |
| 5 |
Vanity Mirror - Drivers (on sunshade) |
| 6 |
Garage Door Opener Switches |
