Removal Procedure

WARNING: This page is about a different car, the 2005 Buick LeSabre. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: Use only the recommended tools for separating the ball joint from the knuckle. Failure to use the recommended tools may cause damage to the ball joint and seal.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
  2. Remove the tire and wheel. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.
  3. Remove the stabilizer shaft link. Refer to Stabilizer Shaft Link Replacement .

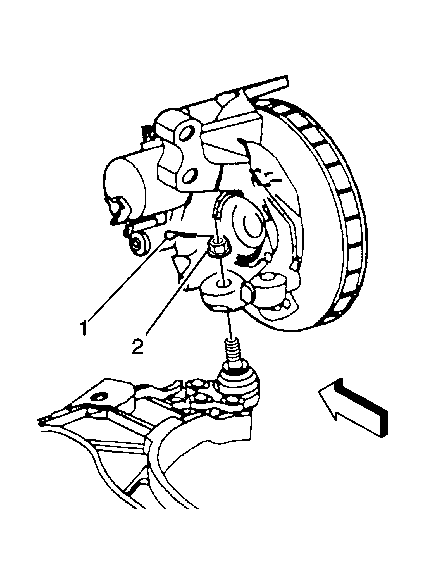

  4. Fig 1: Removing Lower Ball Joint
    GM155692Courtesy of GENERAL MOTORS CORP.
  5. Remove the lower ball joint cotter pin (1).
  6. Loosen the lower ball joint retaining nut (2) from the ball stud.

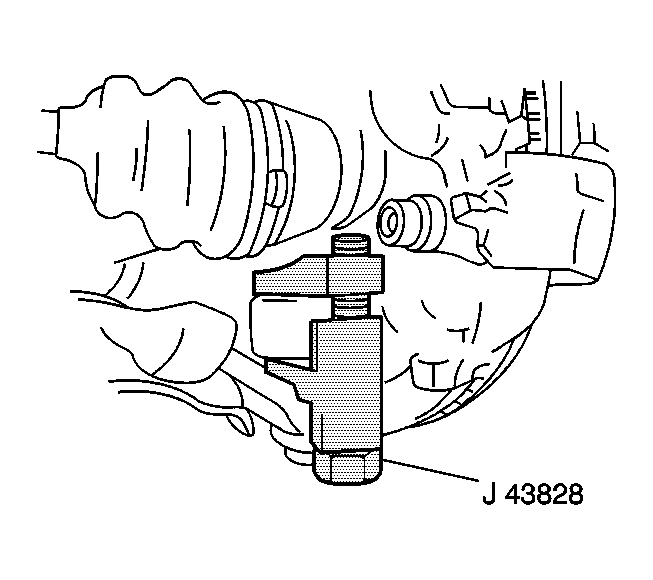

  7. Fig 2: Removing Steering Knuckle
    GM491713Courtesy of GENERAL MOTORS CORP.
    NOTE: Care must be exercised to prevent Tri-Pot joints from being over-extended. When either end of the shaft is disconnected, over-extension of the joint could result in separation of internal components and possible joint failure. Drive axle joint seal protectors should be used any time service is performed on or near the drive axles. Failure to observe this can result in interior joint or seal damage and possible joint failures.
  8. Using J 43828  remove the lower ball joint from the steering knuckle. See Special Tools .
  9. Remove the lower ball joint retaining nut.

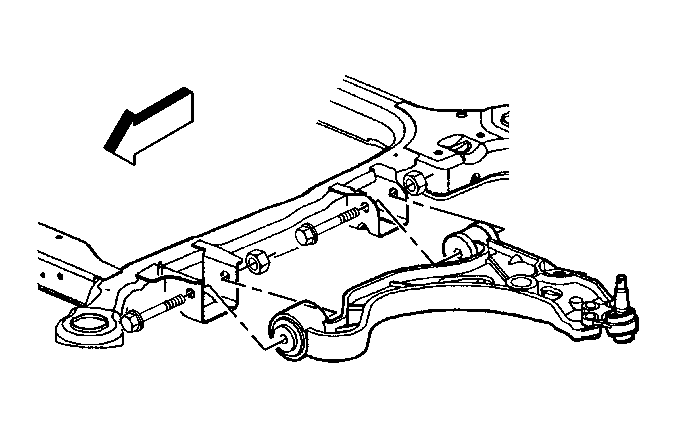

  10. Fig 3: Removing/Installing Lower Control Arm From Frame
    GM183653Courtesy of GENERAL MOTORS CORP.
  11. Remove the lower control arm mounting bolts and nuts.
  12. Remove the lower control arm from the frame.
