Installation Procedure

WARNING: This page is about a different car, the 2005 Buick LeSabre. However, it is still accessible from the selected car via links, so may be relevant.

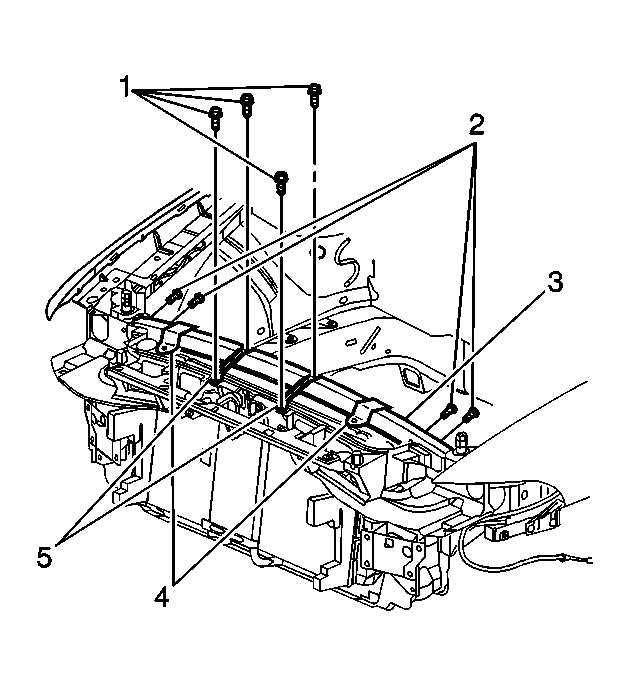

    Fig 1: View Of Headlamp/Fascia Panel And Radiator Support Brackets
    GM644716Courtesy of GENERAL MOTORS CORP.
  1. Install the Radiator support brackets (4) onto the vehicle.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the Radiator support bracket fasteners.

    Tighten:  Tighten the Radiator support bracket fasteners to 9 N.m (80 lb in).

  3. Close the hood.
