Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the hood insulator to hood.
  2. Install the push-in retainers to the hood insulator.
  3. Close the hood.

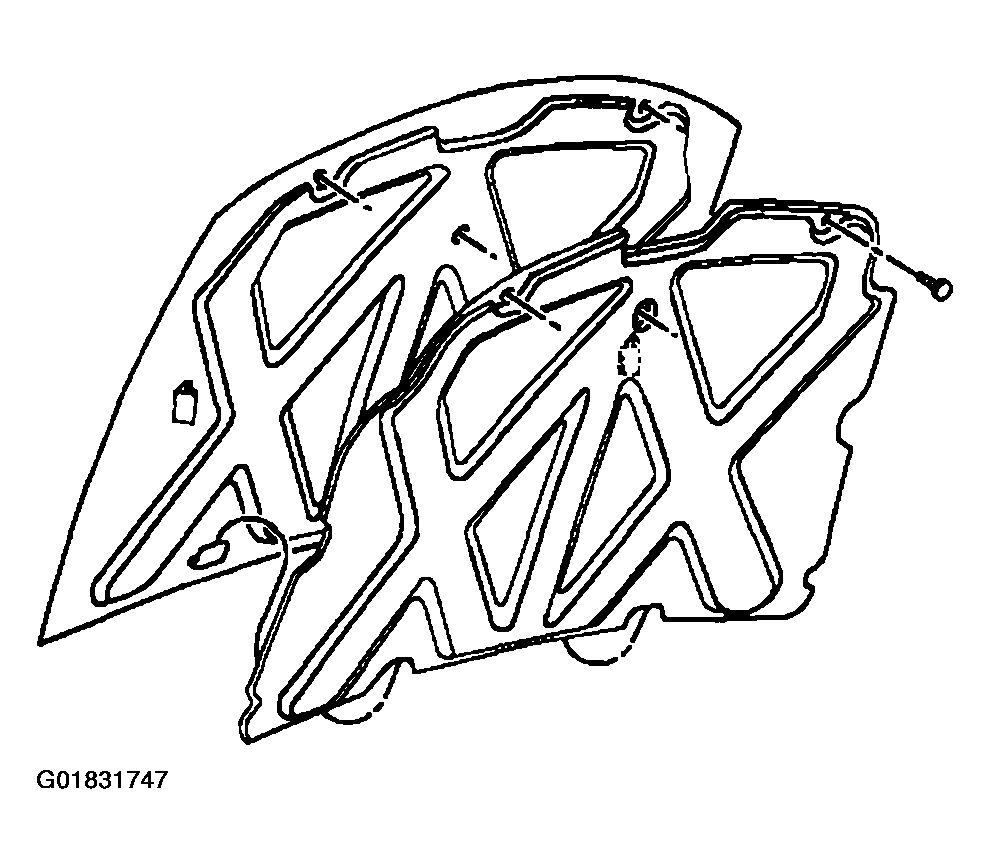

    Fig 1: Installing Push - In Retainers To Hood Insulator
    G01831747Courtesy of GENERAL MOTORS CORP.
