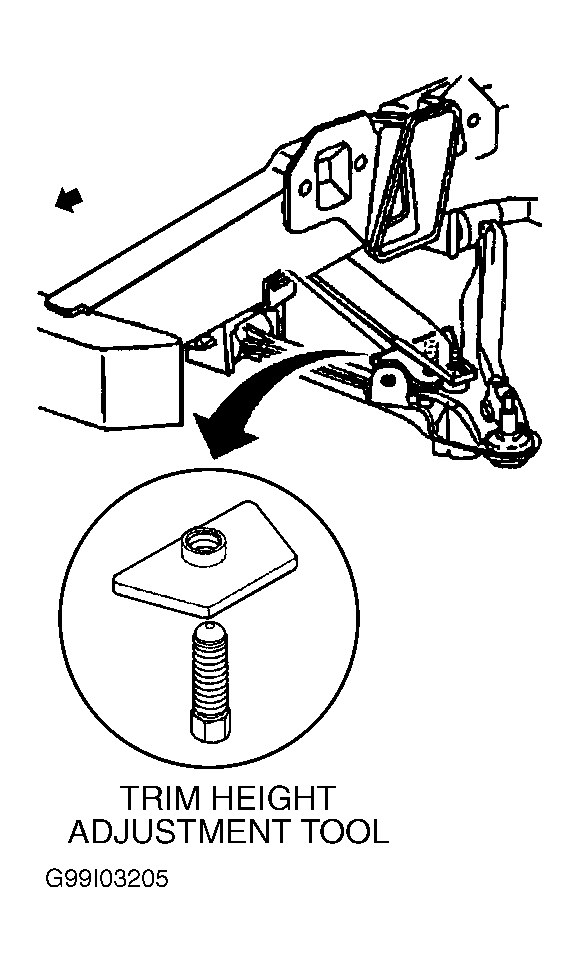

Ride Height Specifications

On "C", "G", "H", and "J" Bodies, maximum variation between side-to-side and front-to-rear should not exceed .75" (19 mm). On "N" Body, maximum variation between side-to-side should not exceed 0.24" (6 mm). On all other models, maximum variation between side-to-side and front-to-rear should not exceed .47" (12 mm).

RIDE HEIGHT SPECIFICATIONS ("C", "H" & "K" BODIES)

Application

In. (mm)

Bonneville, DeVille, LeSabre, Park Avenue & Seville ⁽¹⁾

Dimension "A"

23.5 (600)

Dimension "B"

23.22 (590)

Dimension "J"

6.44-7.25 (164-184)

Dimension "K"

8.38-9.19 (213-233)

Dimension "Z"

1.19-2.0 (30-50)

Dimension "D"

3.0-3.75 (79-96)

⁽¹⁾	See Fig 1.

RIDE HEIGHT SPECIFICATIONS ("E" BODY)

Application

In. (mm)

Eldorado ⁽¹⁾

Dimension "A"

22.84 (580)

Dimension "B"

22.17 (563)

Dimension "J"

8.66 (220)

Dimension "K"

8.43 (214)

Dimension "E"

28.15 (715)

Dimension "F"

27.91 (709)

Dimension "Z"

1.97 (50)

Dimension "D"

1.14 (29)

⁽¹⁾	See Fig 2.

RIDE HEIGHT SPECIFICATIONS ("F" BODY)

Application

In. (mm)

Camaro & Firebird ⁽¹⁾

Dimension "1" (Side Rocker Panel)

8.0 (204)

Dimension "2" (Side Rocker Panel)

8.2 (208)

Dimension "3" (Front Fascia)

Camaro

17.4 (443)

Firebird With 235/55 Tires

13.4 (342)

Trans Am Except Base Model

13.4 (342)

Trans Am Base Model

16.3 (416)

Dimension "4" (Rear Fascia)

Camaro

14.4 (367)

Firebird
& Trans Am

14.7 (375)

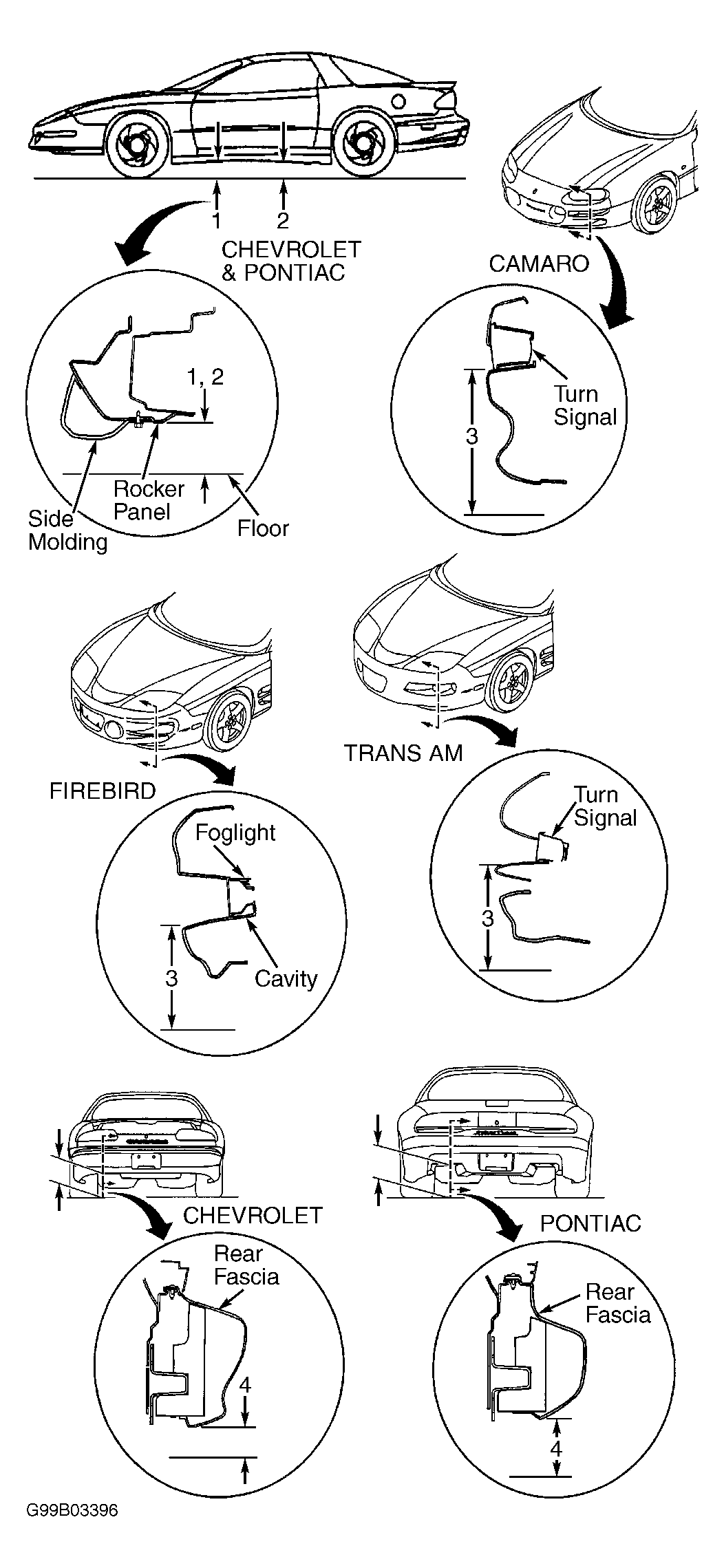

⁽¹⁾	See Fig 3.

RIDE HEIGHT SPECIFICATIONS ("G" BODY)

Application

In. (mm)

Aurora ⁽¹⁾

Dimension "D"

3.0-3.8 (76-96)

Dimension "Z"

1.2-2.0 (30-50)

⁽¹⁾	See Fig 1 .

RIDE HEIGHT SPECIFICATIONS ("J" BODY)

Application

In. (mm)

Cavalier & Sunfire ⁽¹⁾

Dimension "A"

31 (800)

Dimension "B"

22 (560)

Dimension "J"

87 (223)

Dimension "K"

9 (230)

Dimension "Z"

With 14" Tires

0.16 (4)

With 15" Tires

2.2L ⁽²⁾

0 (0)

2.4L ⁽³⁾

- 0.08 (- 2.0)

2.4L ⁽⁴⁾

0.4 (1.0)

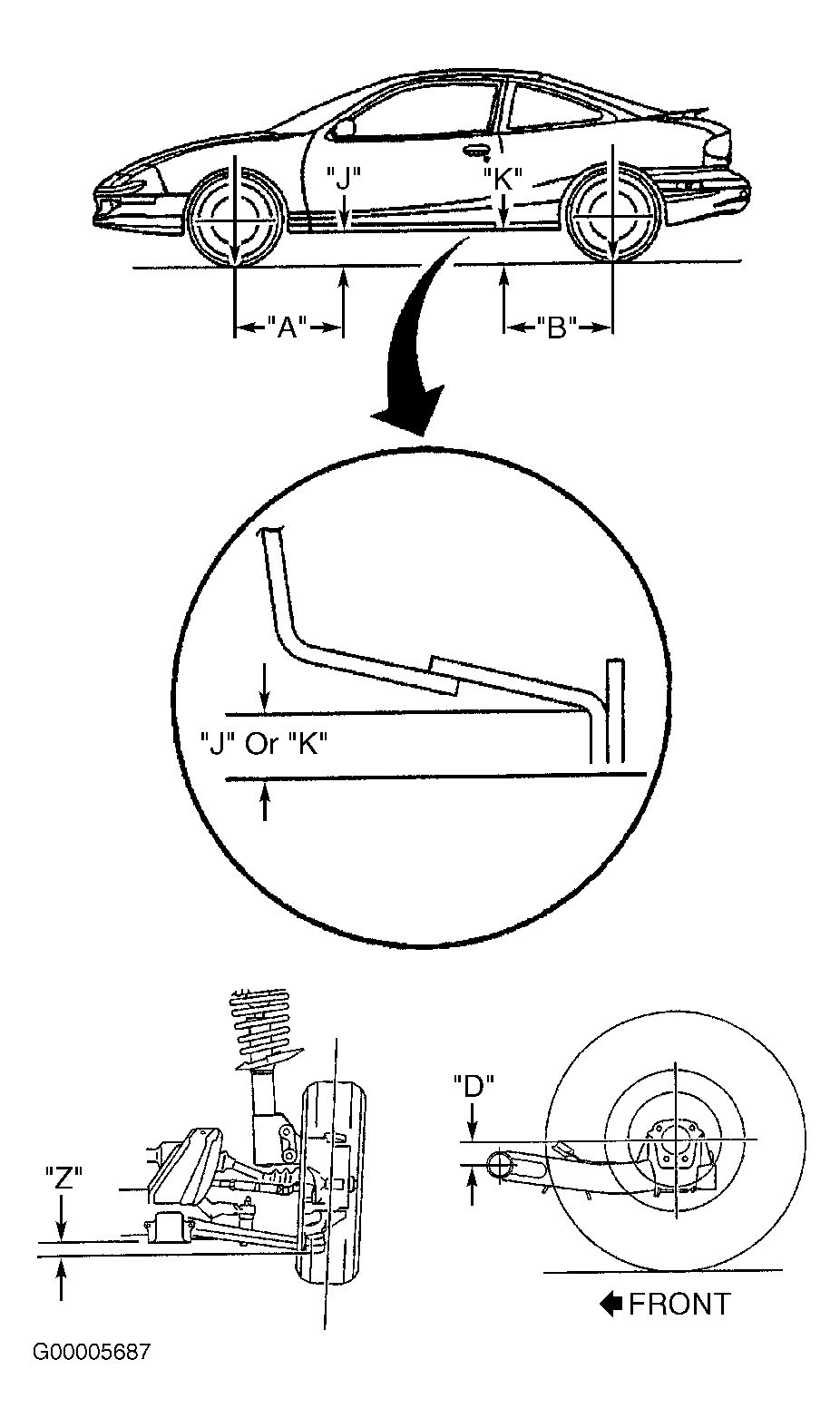

⁽¹⁾	See Fig 4.

⁽²⁾	With active suspension.

⁽³⁾	With ride handling suspension.

⁽⁴⁾	With soft ride suspension.

RIDE HEIGHT SPECIFICATIONS ("M" BODY)

Application

In. (mm)

Metro & Firefly (Canadian) ⁽¹⁾

Dimension "A"

17.75 (450)

Dimension "B"

17.75 (450)

Dimension "J"

8.25 (210)

Dimension "K"

8.85 (225)

Dimension "Z"

1.75 (45)

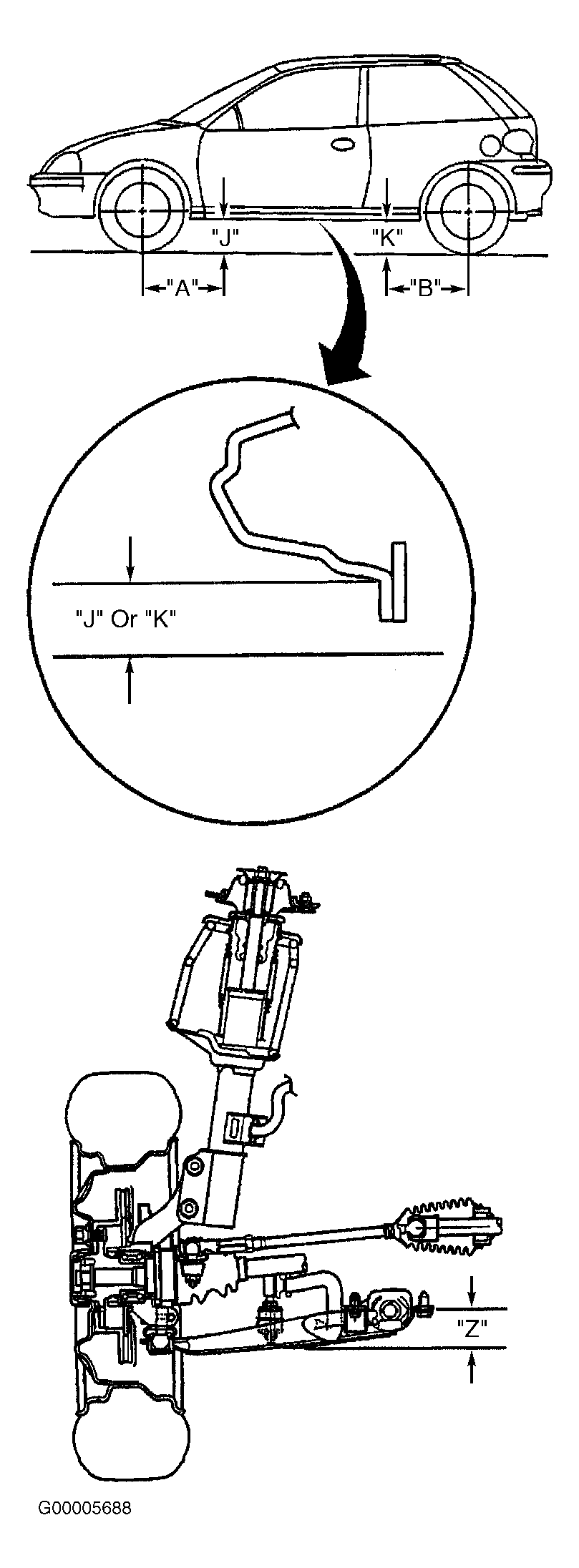

⁽¹⁾	See Fig 5.

RIGHT HEIGHT SPECIFICATIONS ("N" BODY)

Application

In. (mm)

Alero ⁽¹⁾

Dimension "A"

32.2 (817)

Dimension "B"

25.0 (635)

Dimension "J"

9.33 (237)

Dimension "K"

9.61 (244)

Dimension "D"

15" Wheels

4.84 (123)

16" Wheels

4.72 (120)

Dimension "Z"

15" Wheels

0 (0)

16" Wheels

- 5 (- 20)

Grand Am ⁽¹⁾

Dimension "A"

32.2 (817)

Dimension "B"

25.0 (635)

Dimension "J"

9.33 (237)

Dimension "K"

9.61 (244)

Dimension "D"

15" Wheels

0 (0)

16" Wheels

4.72 (120)

Dimension "Z"

15" Wheels

0 (0)

16" Wheels

- 5 (- 20)

Malibu ⁽¹⁾

Dimension "A"

32.2 (817)

Dimension "B"

25.0 (635)

Dimension "J"

9.33 (237)

Dimension "K"

9.61 (244)

Dimension "D"

4.84 (123)

Dimension "Z"

0 (0)

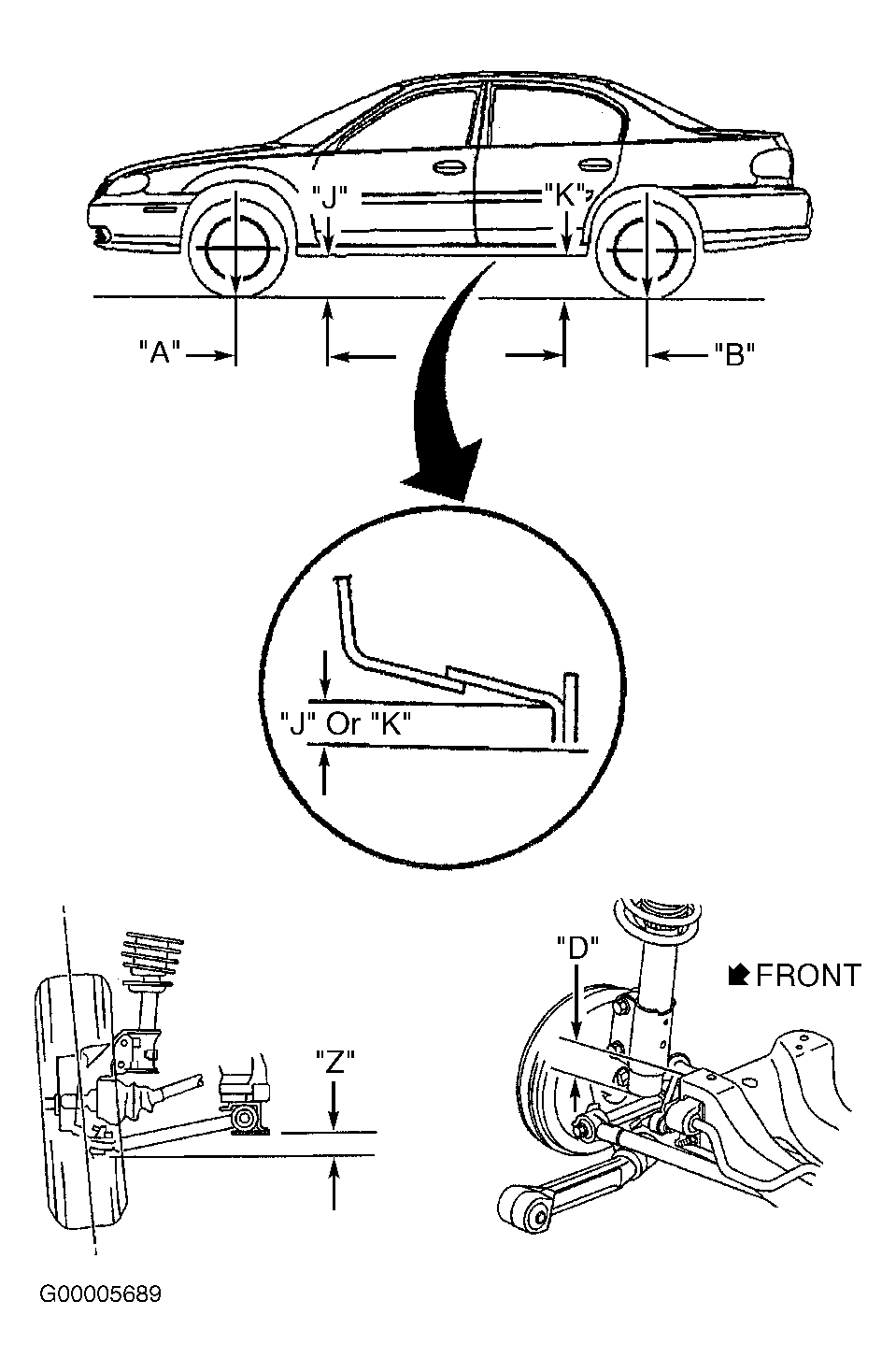

⁽¹⁾	See Fig 6.

RIDE HEIGHT SPECIFICATIONS ("S" BODY)

Application

In. (mm)

Prizm ⁽¹⁾

Dimension "Z"

With P175/64R14 Tires

6.88 To 7.68 (175 To 195)

With P185/64R14 Tires

7.08 To 7.88 (180 To 200)

Dimension "D"

With P175/64R14 Tires

9.25 To 10.05 (235 To 255)

With P185/64R14 Tires

9.44 To 10.24 (240 To 260)

⁽¹⁾

See Fig 7

RIDE HEIGHT SPECIFICATIONS ("V" BODY)

Application

In. (mm)

Catera ⁽¹⁾

Dimension "P"

27.3 (693)

Dimension "J"

6.9 (175)

Dimension "K"

6.5 (165)

Dimension "R"

27.3 (693)

⁽¹⁾	See Fig 8.

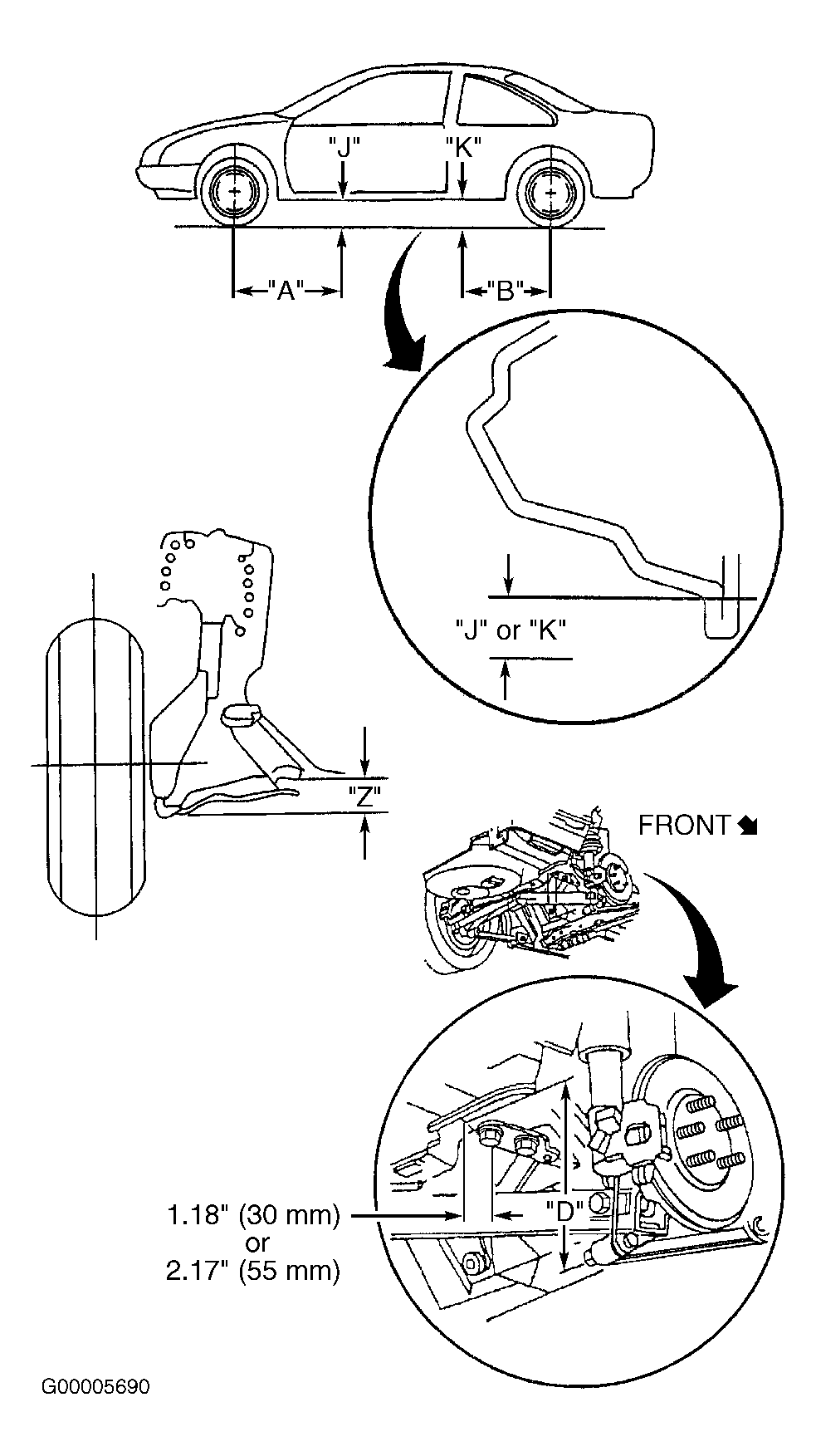

RIDE HEIGHT SPECIFICATIONS ("W" BODY)

Application

In. (mm)

Except Lumina ⁽¹⁾

Dimension "A"

23.8 (605)

Dimension "B"

20.7 (526)

Dimension "J" & "K"

8.4 (213.3)

Dimension "Z"

With 225/60R16 Tires

1.89 (48)

With 225/70R15 Tires

2.13 (55)

Dimension "D"

With 225/60R16 Tires

10.4 (255)

With 225/70R15 Tires

10.3 (261)

Lumina ⁽¹⁾

Dimension "A"

23.8 (605)

Dimension "B"

20.7 (525)

Dimension "J" & "K"

8.4 (213.3)

Dimension "Z"

With 205/70R15 Tires

2.13 (55)

With 225/60R16 Tires

1.89 (48)

Dimension "D"

With 205/70R15 Tires

10.28 (261)

With 225/60R16 Tires

10.04 (255)

⁽¹⁾	See Fig 9.

RIDE HEIGHT SPECIFICATIONS ("Y" BODY)

Application

In. (mm)

Corvette ⁽¹⁾

Dimension "A"

35 (889)

Dimension "B"

31 (787)

Dimension "J"

6.02 (153)

Dimension "K"

6.22 (158)

Dimension "D"

4.0 To 4.5 (102 To 114)

Dimension "Z"

1.48 To 1.99 (38 To 50)

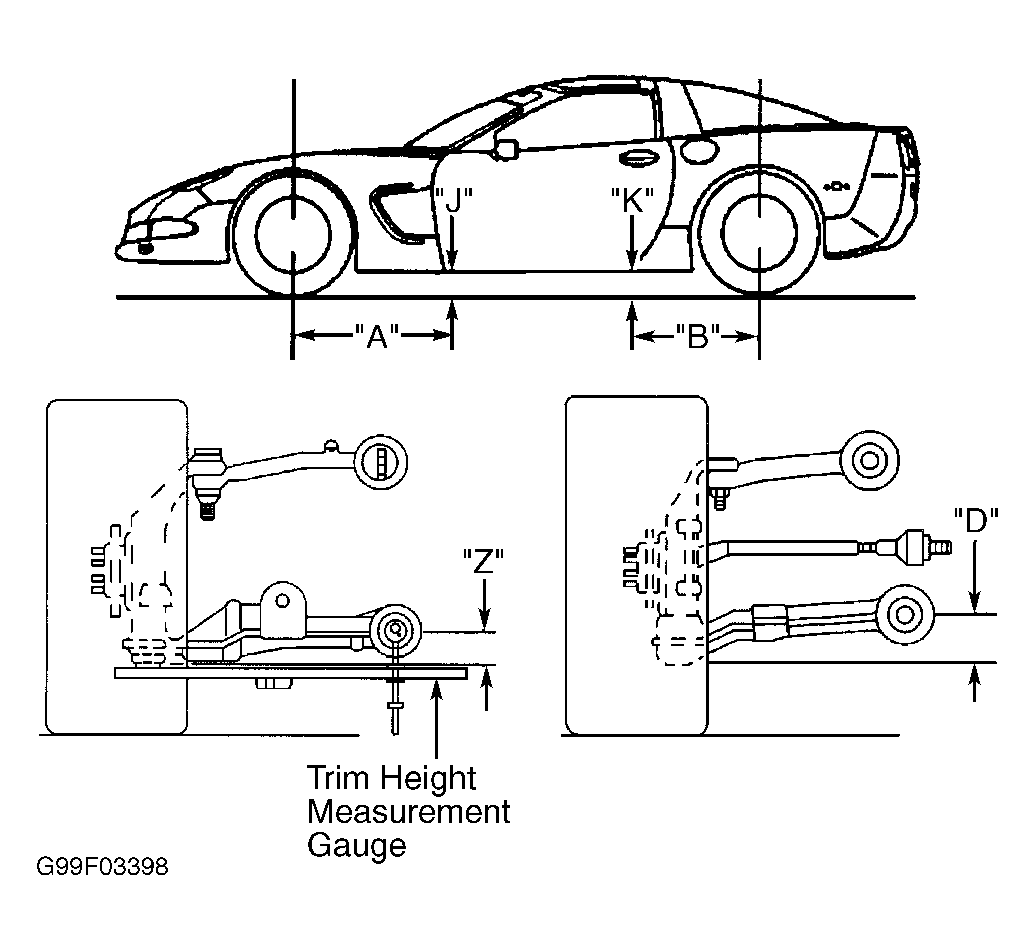

⁽¹⁾	See Fig 10

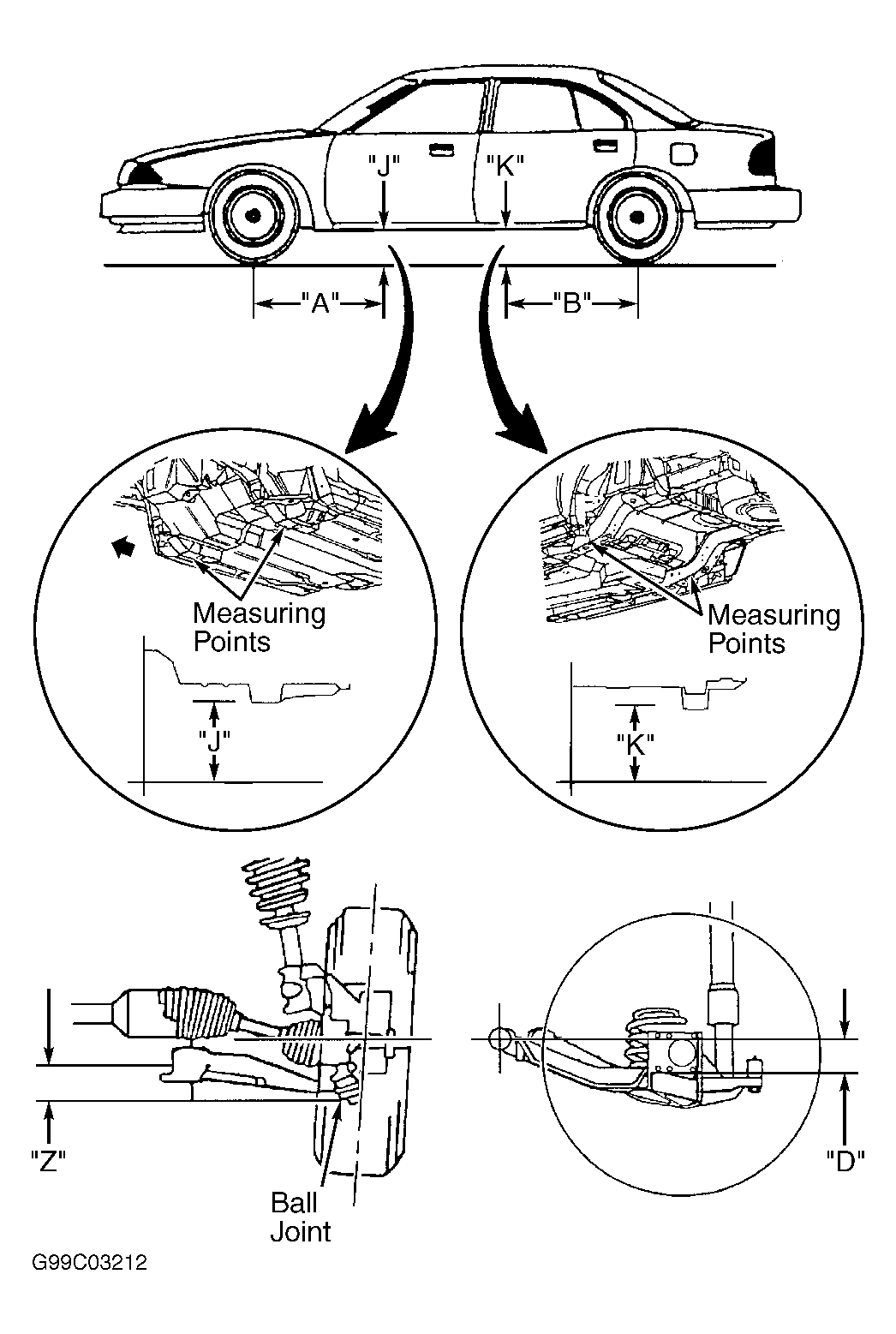

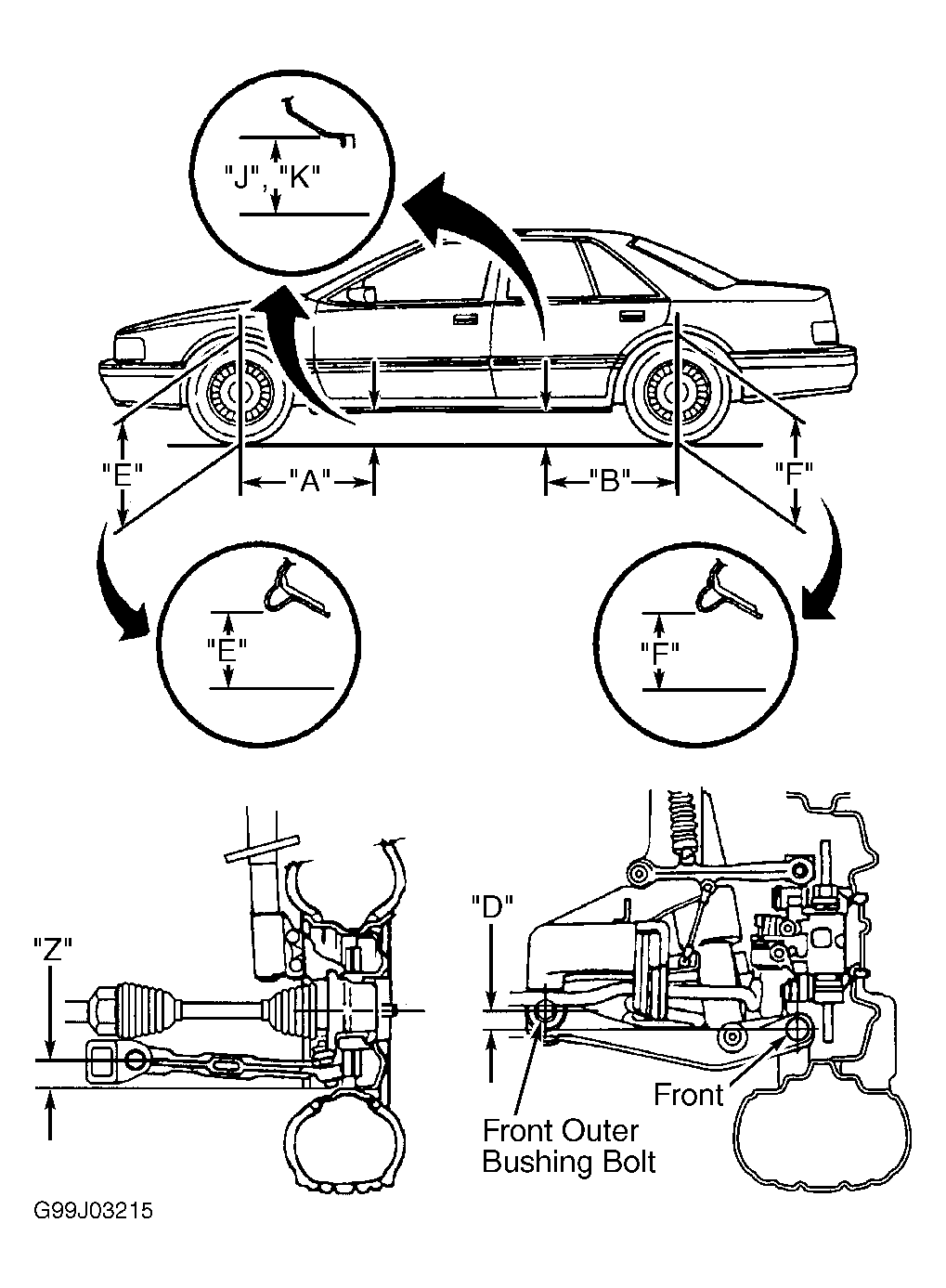

Fig 1: Ride Height Measuring Points ("C", "G", "H" & "K" Bodies)
