Frame Contact Hoist

Hoist adapters must contact vehicle in specified areas. See Fig 1-Fig 8 . Adapters must be positioned to distribute load and support vehicle in a stable manner. DO NOT allow lift pads to contact body panels or exhaust system components.

WARNING: If removing rear axle, fuel tank, spare tire or liftgate using single-post hoist, anchor vehicle to hoist. Place jack stands under vehicle, or add weight on rear end of vehicle to prevent tipping when center of gravity changes.
Fig 1: Lifting Points ("C", "G" & "H" Bodies)
G95E14609Courtesy of GENERAL MOTORS CORP.

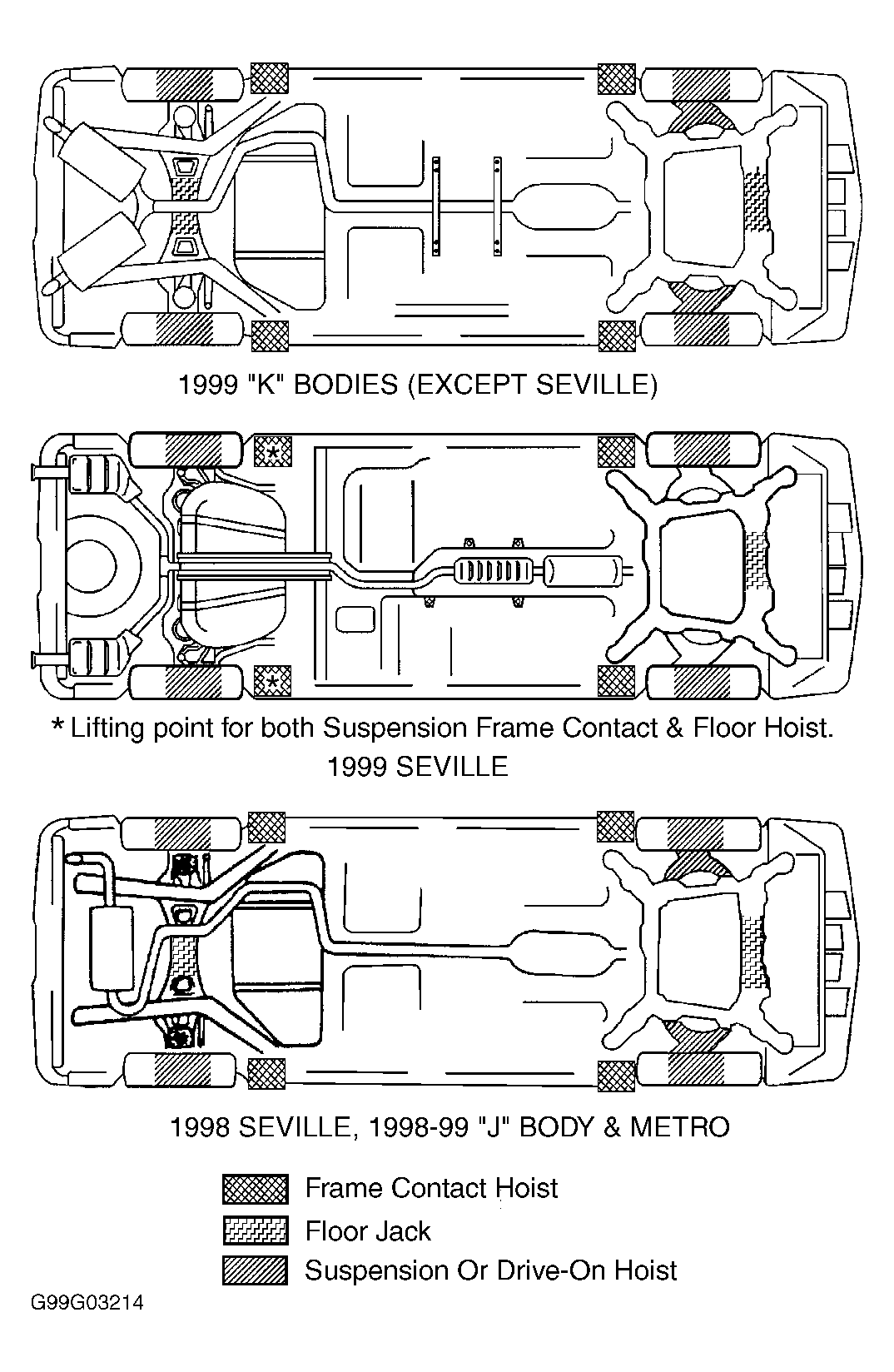

Fig 2: Lifting Points ("E" & "K" Bodies)
G99G03214Courtesy of GENERAL MOTORS CORP.
Fig 3: Lifting Points ("F" Body)
G95A14613Courtesy of GENERAL MOTORS CORP.
Fig 4: Lifting Points ("J" & "N" Bodies)
G95C14615Courtesy of GENERAL MOTORS CORP.

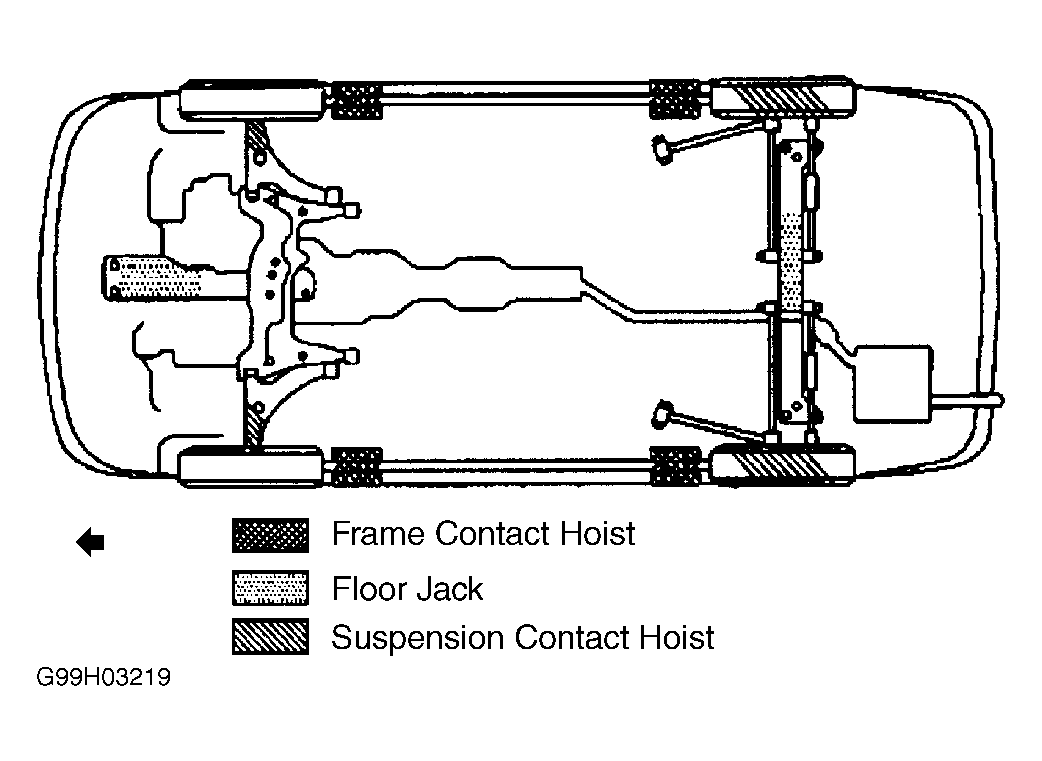

Fig 5: Lifting Points ("M" & "S" Bodies)
G99H03219Courtesy of GENERAL MOTORS CORP.

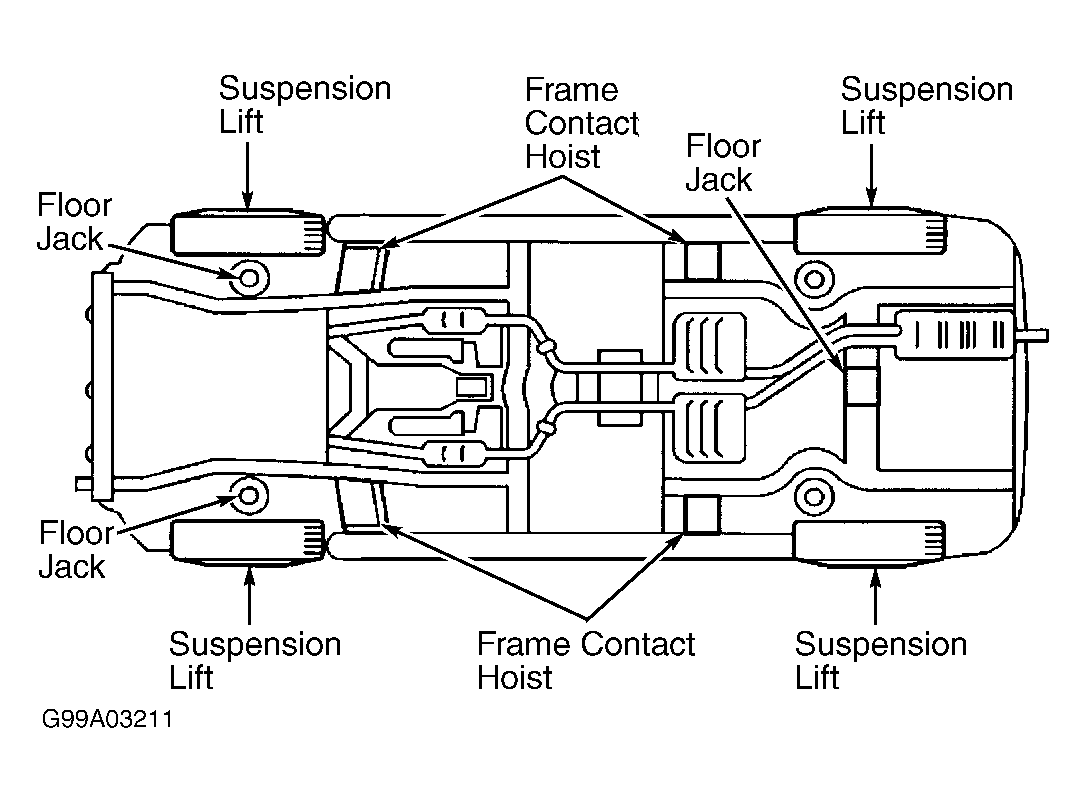

Fig 6: Lifting Points ("V" Body)
G99A03211Courtesy of GENERAL MOTORS CORP.

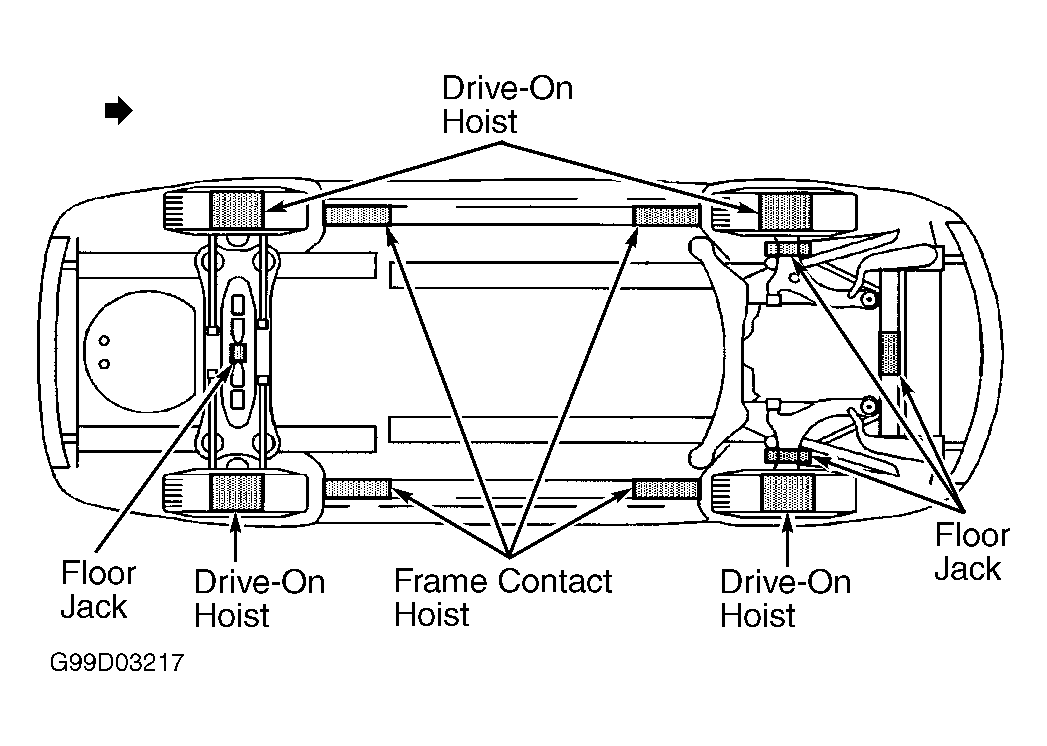

Fig 7: Lifting Points ("W" Body)
G99D03217Courtesy of GENERAL MOTORS CORP.

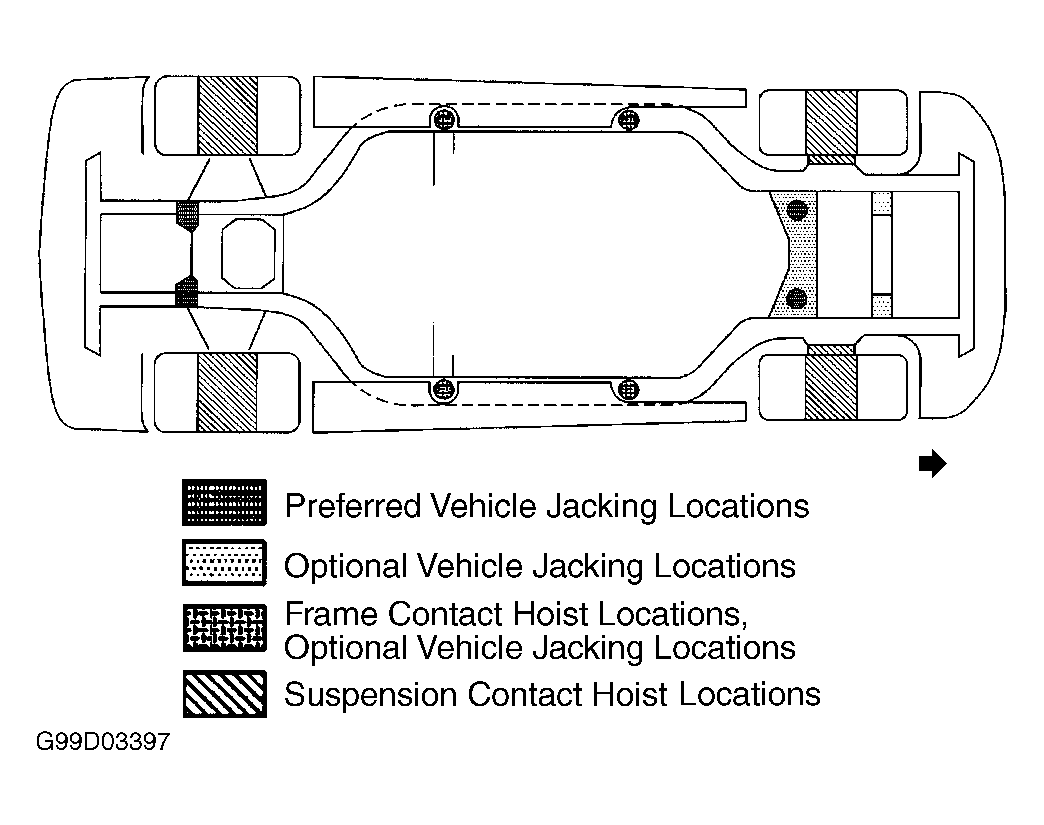

Fig 8: Lifting Points ("Y" Body)
G99D03397Courtesy of GENERAL MOTORS CORP.
