Removal & Installation: Notes
NOTE:

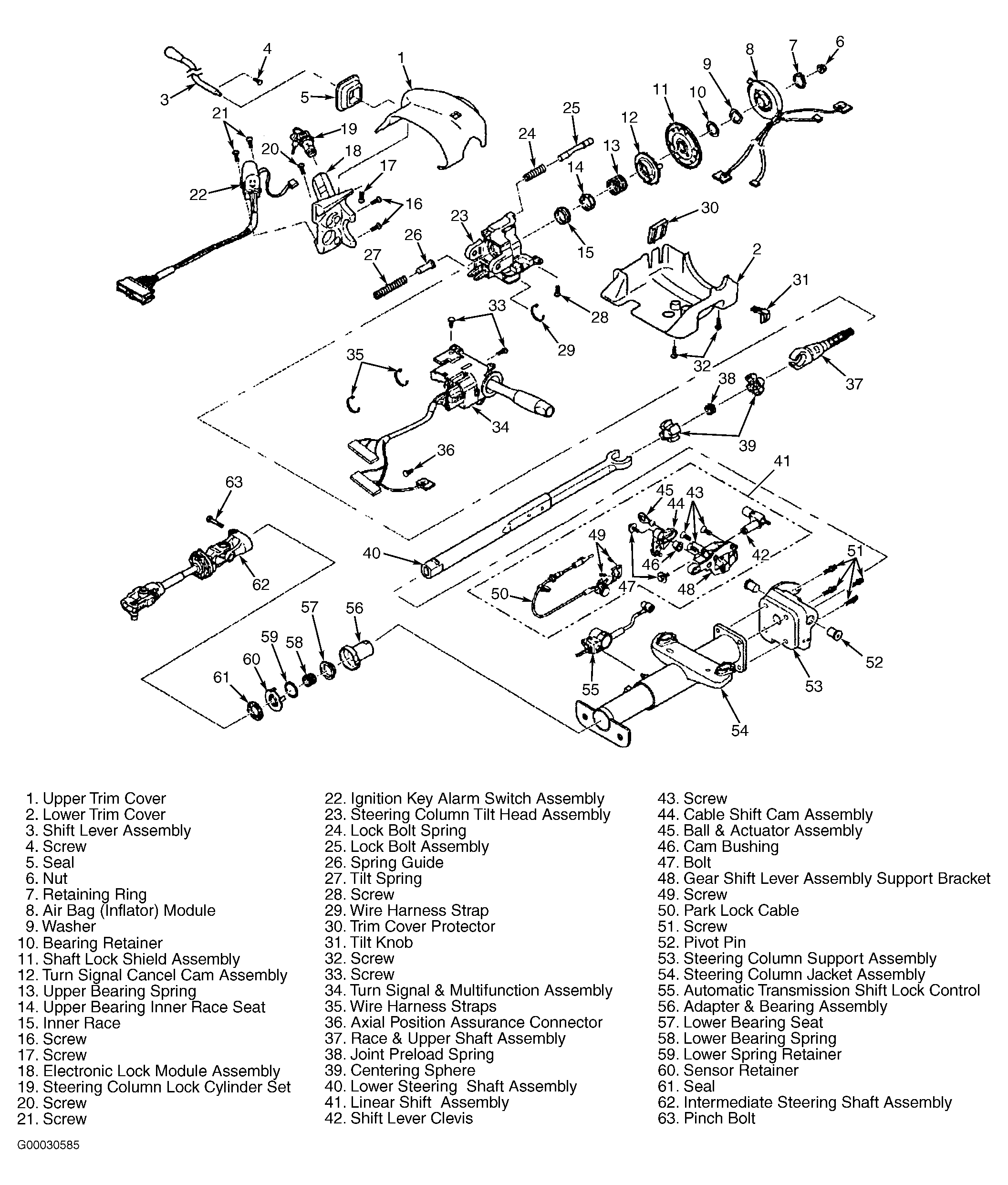

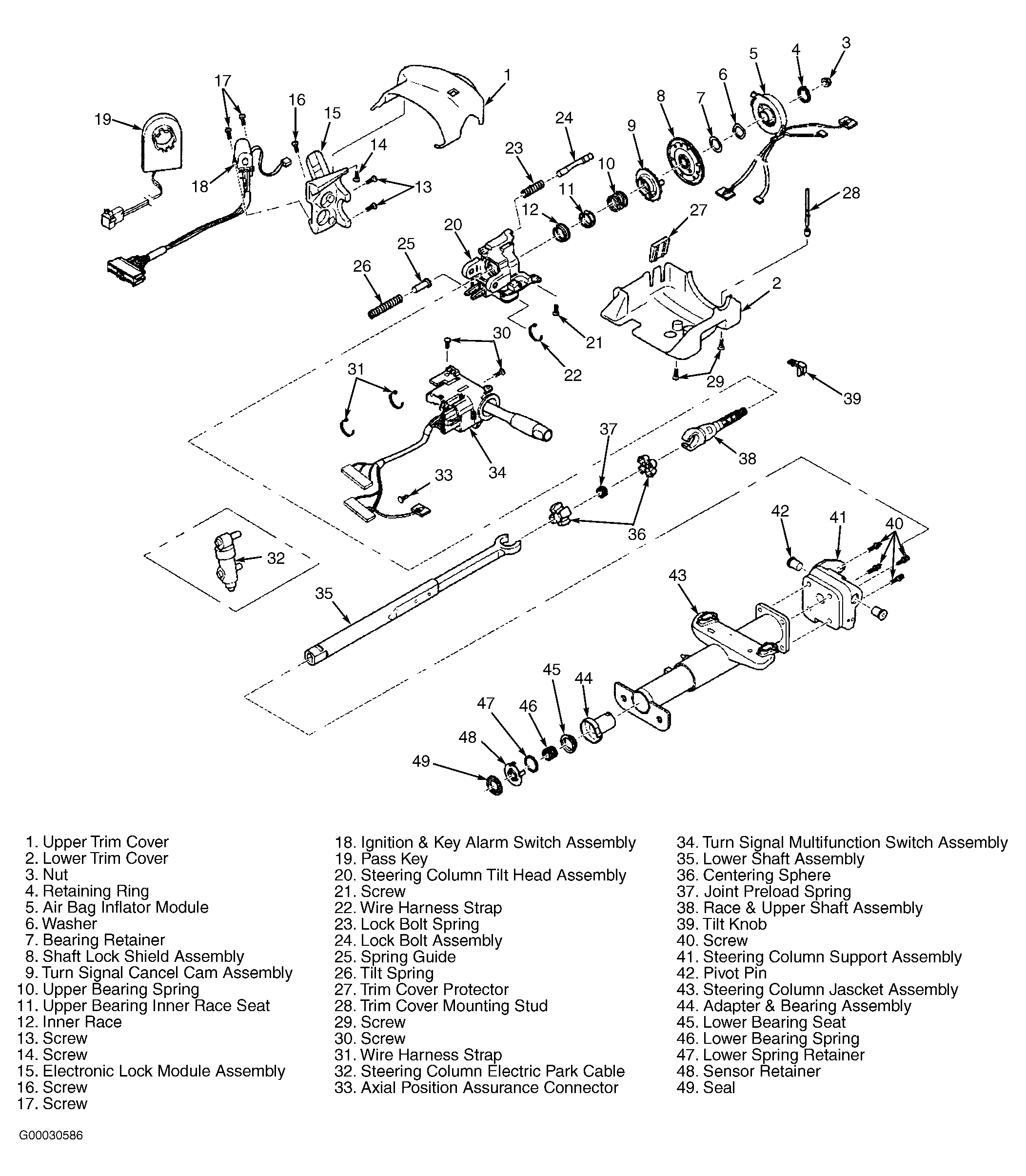

Use exploded view illustrations for overhaul of steering column assembly. SeeFigure
and Figure
. For removal and installation of all components not listed under REMOVAL & INSTALLATION, see OVERHAUL
. Before servicing steering column, place shift lever in Park, turn lock cylinder to OFF-LOCK position, and remove key.
