Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the stop lamp switch (2) to the brake pedal bracket.

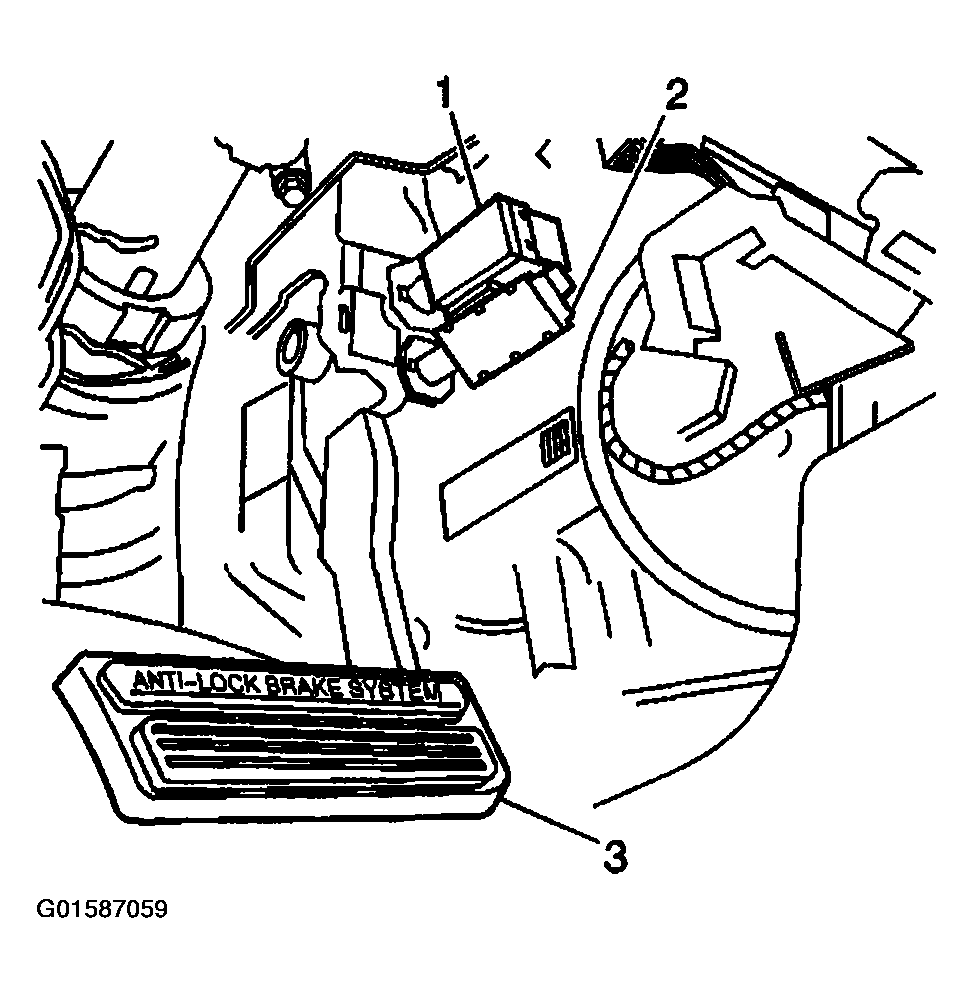

    Fig 1: View Of Stop Lamp Switch
    G01587059Courtesy of GENERAL MOTORS CORP.
  2. Connect the electrical connector to the stop lamp switch.
  3. Install the left side of the I/P insulator.
  4. Adjust the stop lamp switch. Refer to STOP LAMP SWITCH ADJUSTMENT  .
