Diagnostic Procedures

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

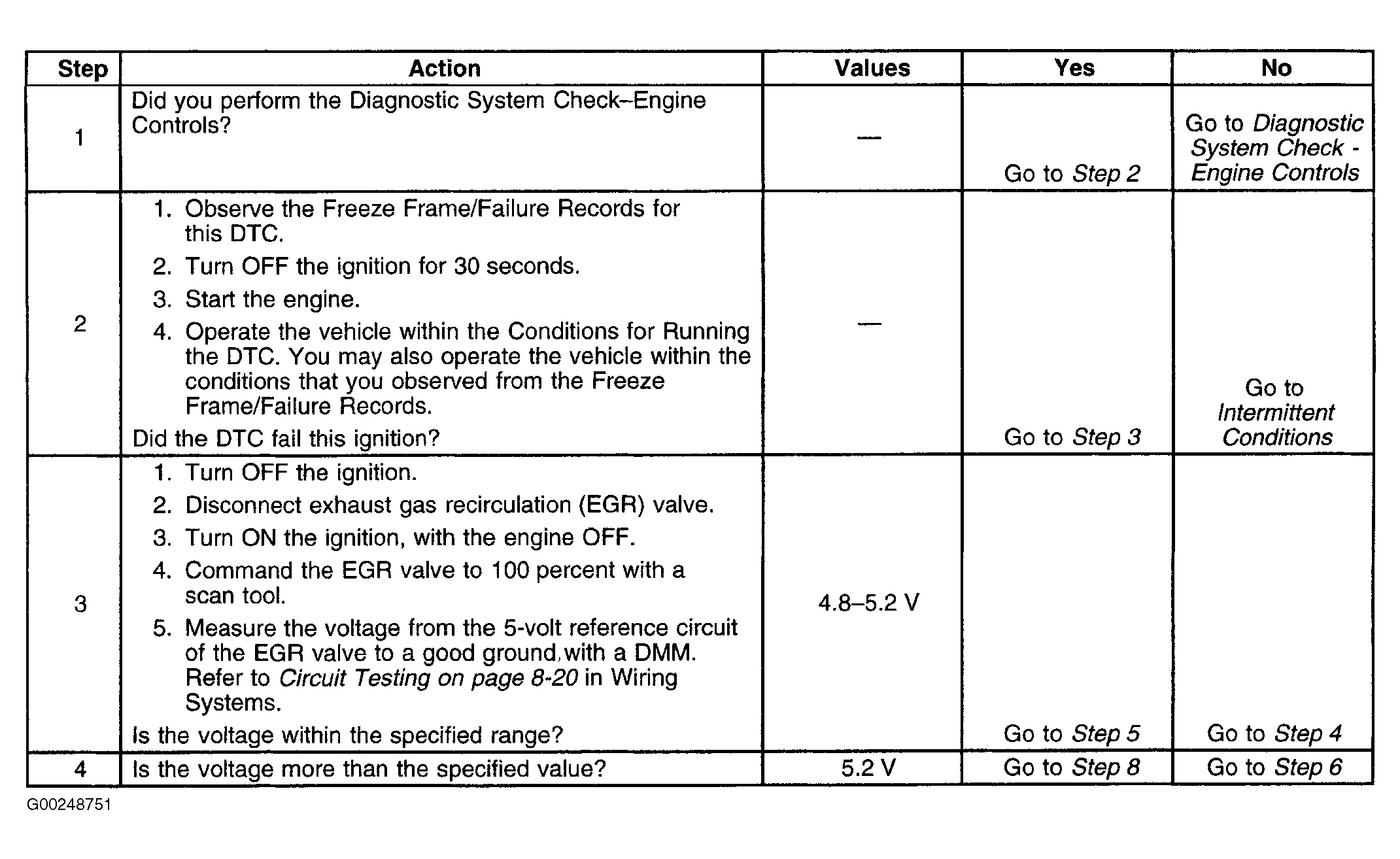

Fig 1: DTC P1635: 5-Volt Reference 1 Circuit (Steps 1-4)
G00248751Courtesy of GENERAL MOTORS CORP.

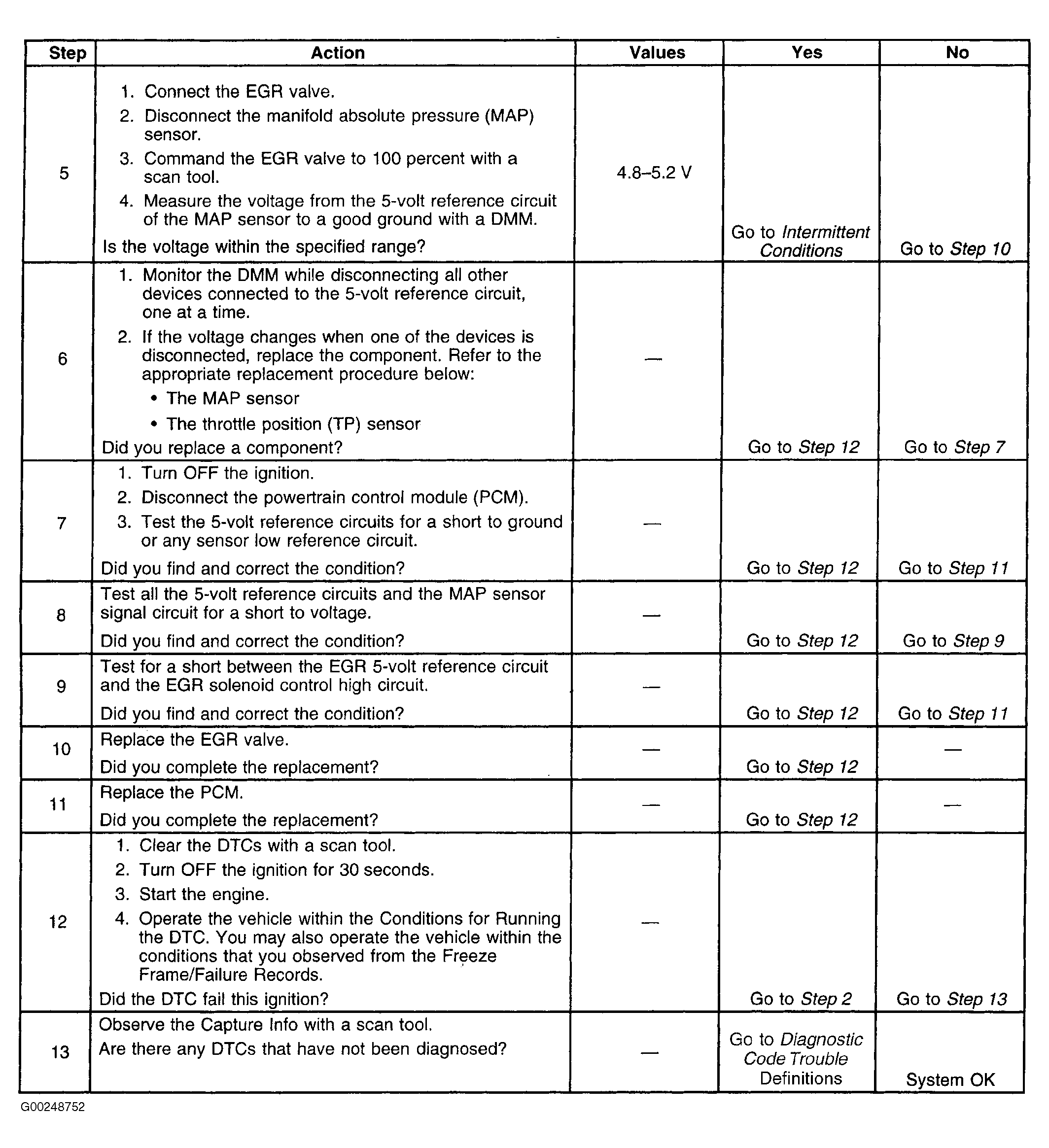

Fig 2: DTC P1635: 5-Volt Reference 1 Circuit (Steps 5-13)
G00248752Courtesy of GENERAL MOTORS CORP.
