WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

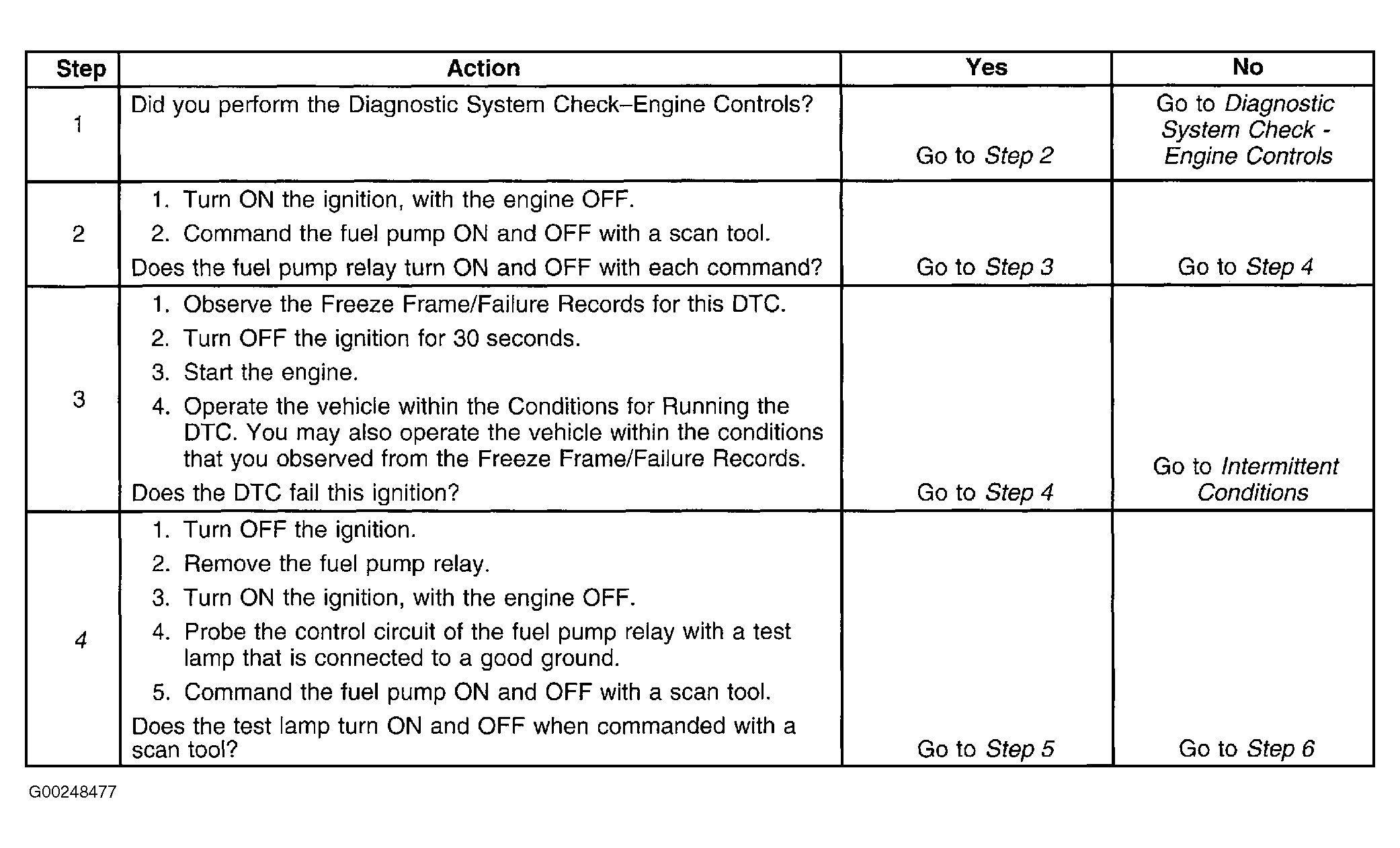

Fig 1: DTC P0230: Fuel Pump Control Circuit (Steps 1-4)
Courtesy of GENERAL MOTORS CORP.

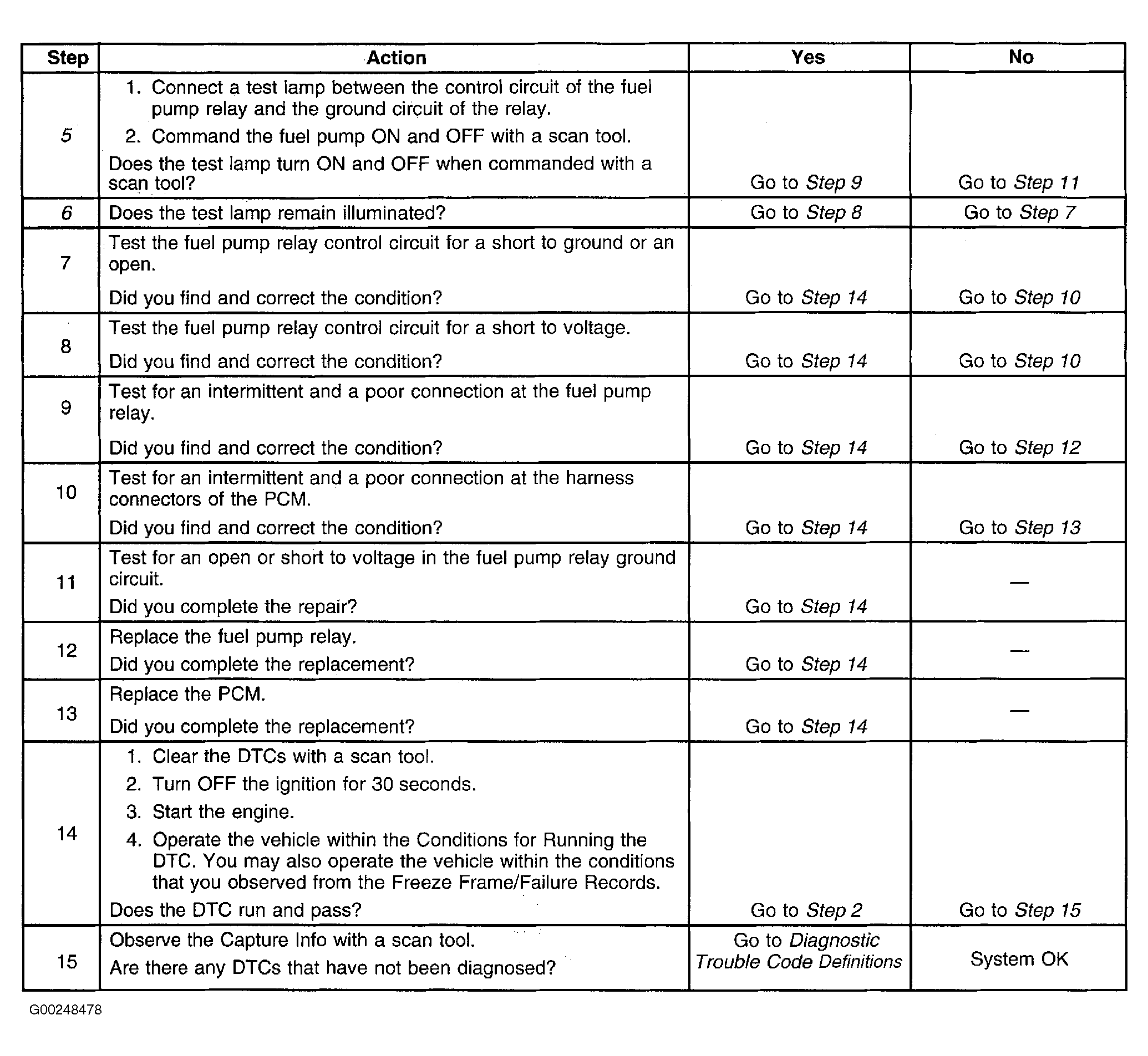

Fig 2: DTC P0230: Fuel Pump Control Circuit (Steps 5-15)
