Diagnostic Procedures

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

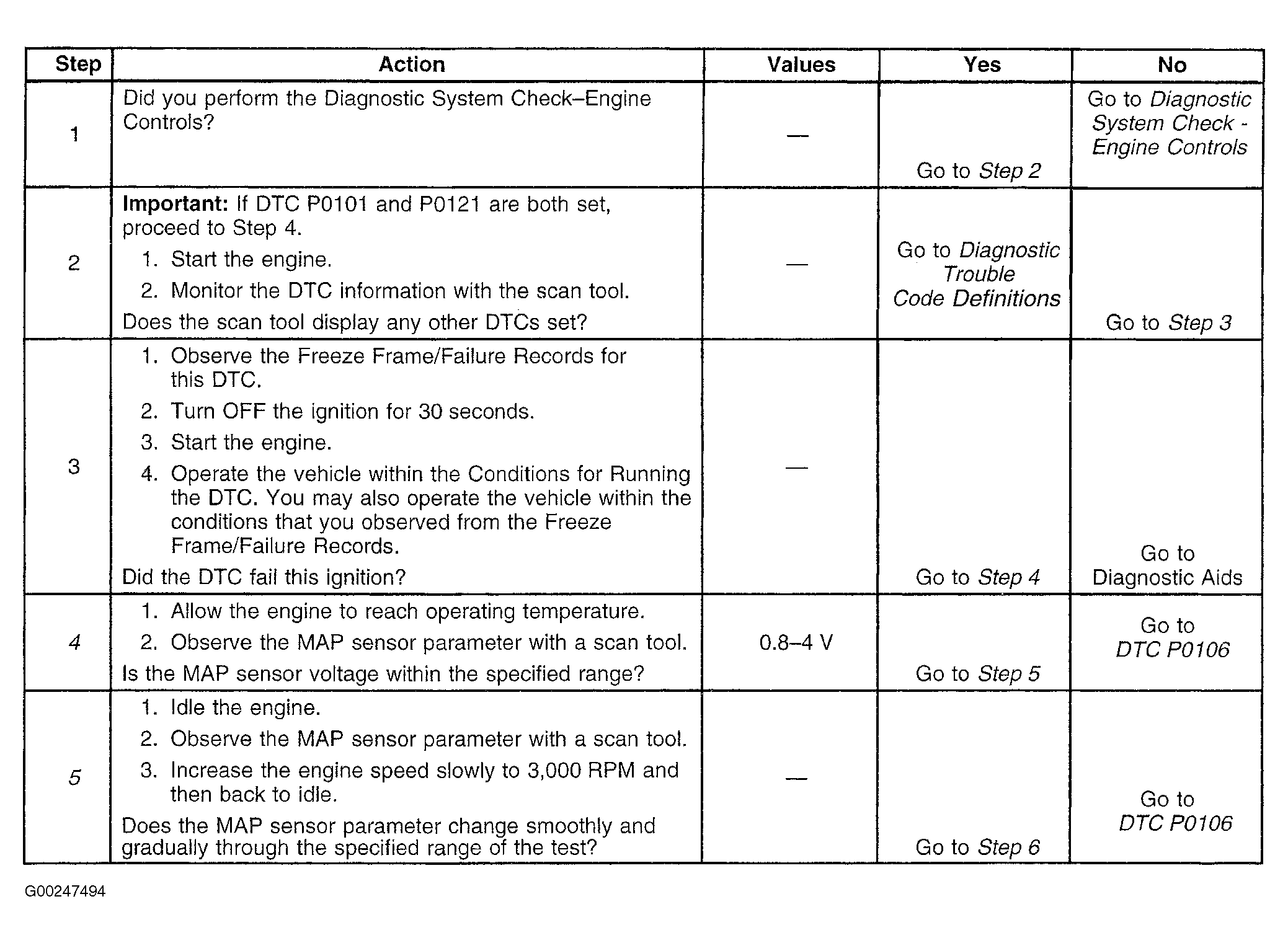

Fig 1: DTC P0101: Mass Airflow Sensor System Performance (Steps 1-5)
G00247494Courtesy of GENERAL MOTORS CORP.

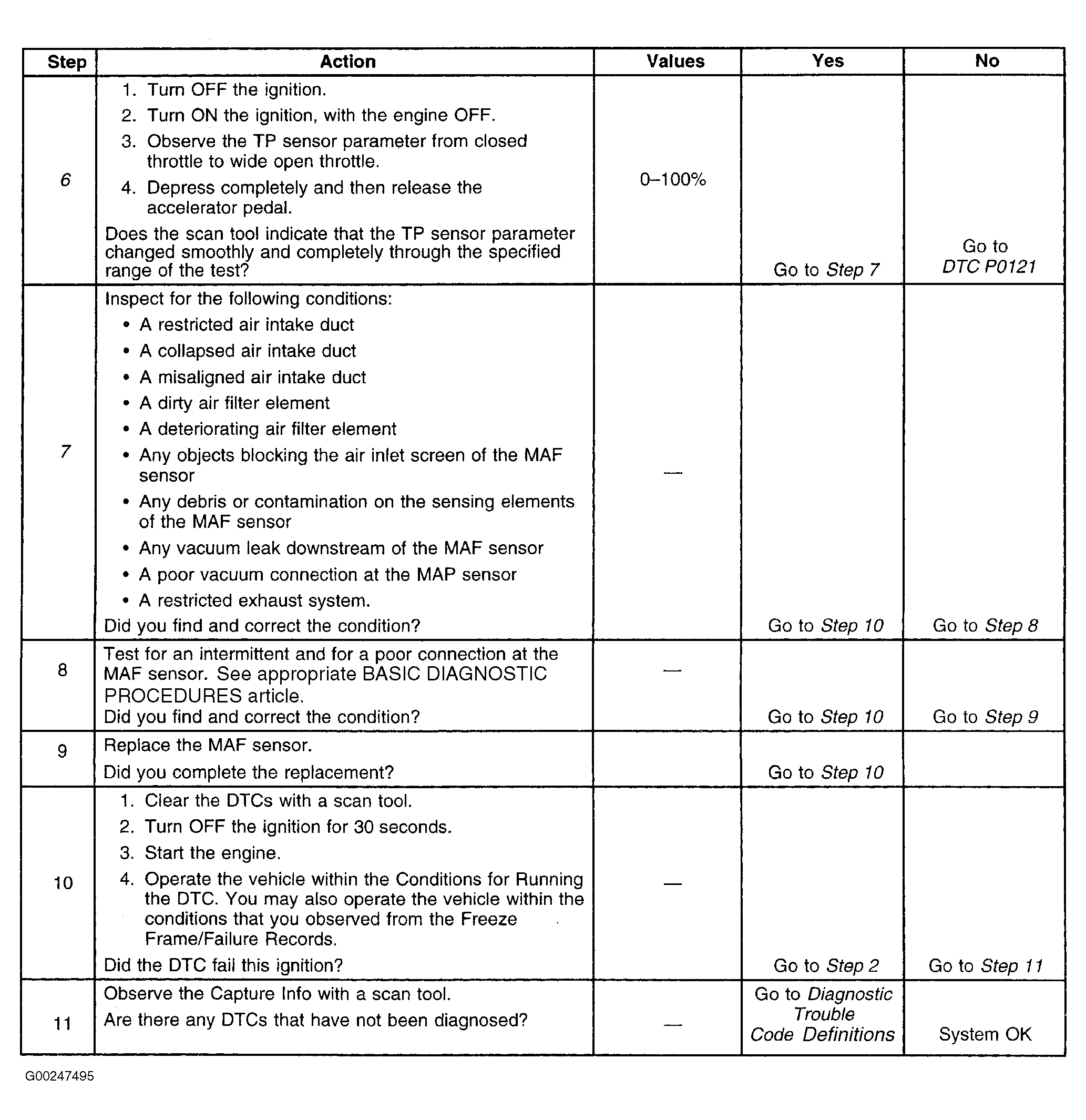

Fig 2: DTC P0101: Mass Airflow Sensor System Performance (Steps 6-11)
G00247495Courtesy of GENERAL MOTORS CORP.
