Test B: Automatic Door Lock Lock/Unlock Mode Inoperative

NOTE: If the automatic door lock Lock/Unlock mode is inoperative, see Fig 1 .

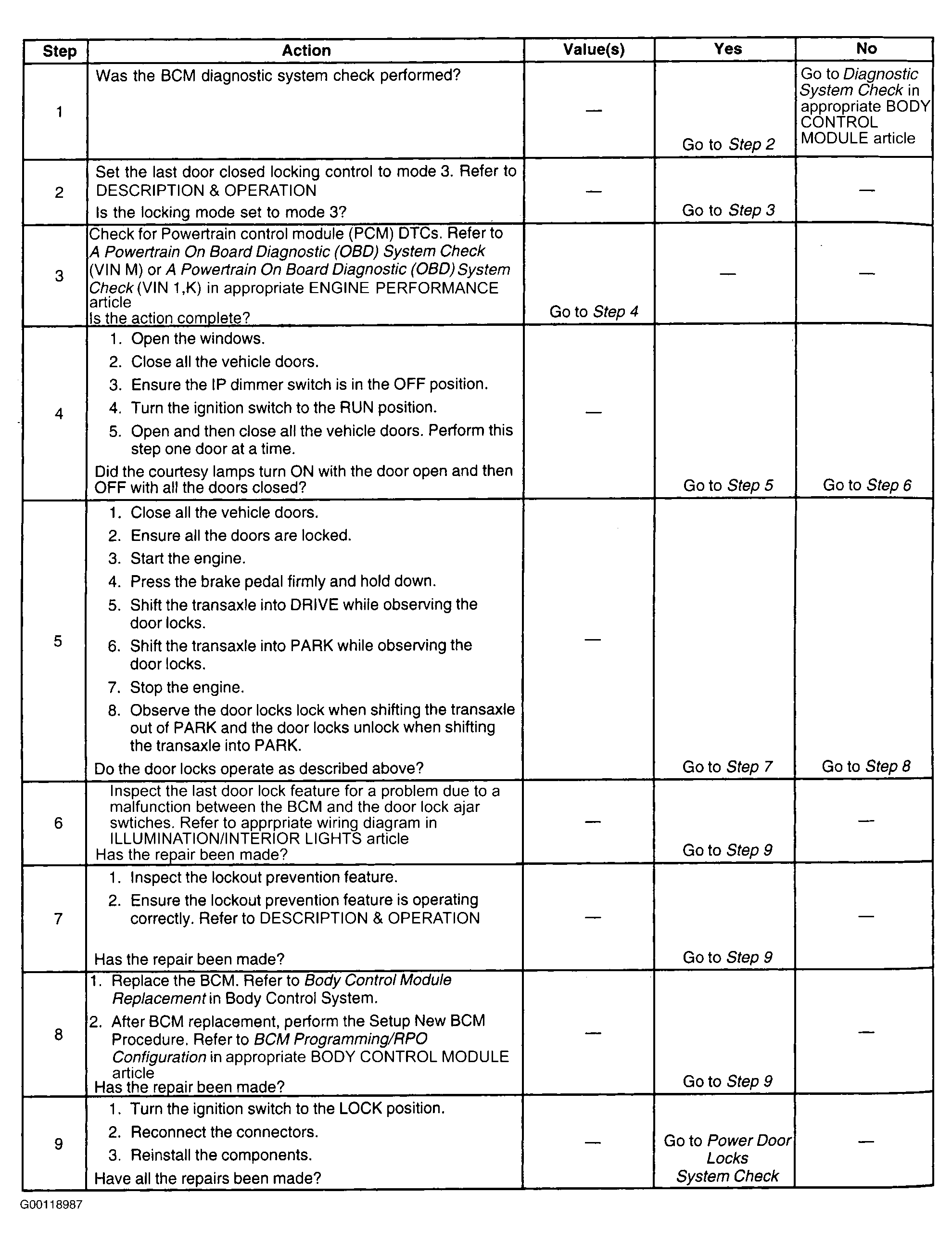

Fig 1: Test B: Automatic Door Lock/Unlock Mode Inoperative

Courtesy of GENERAL MOTORS CORP.
