Wiring Diagrams

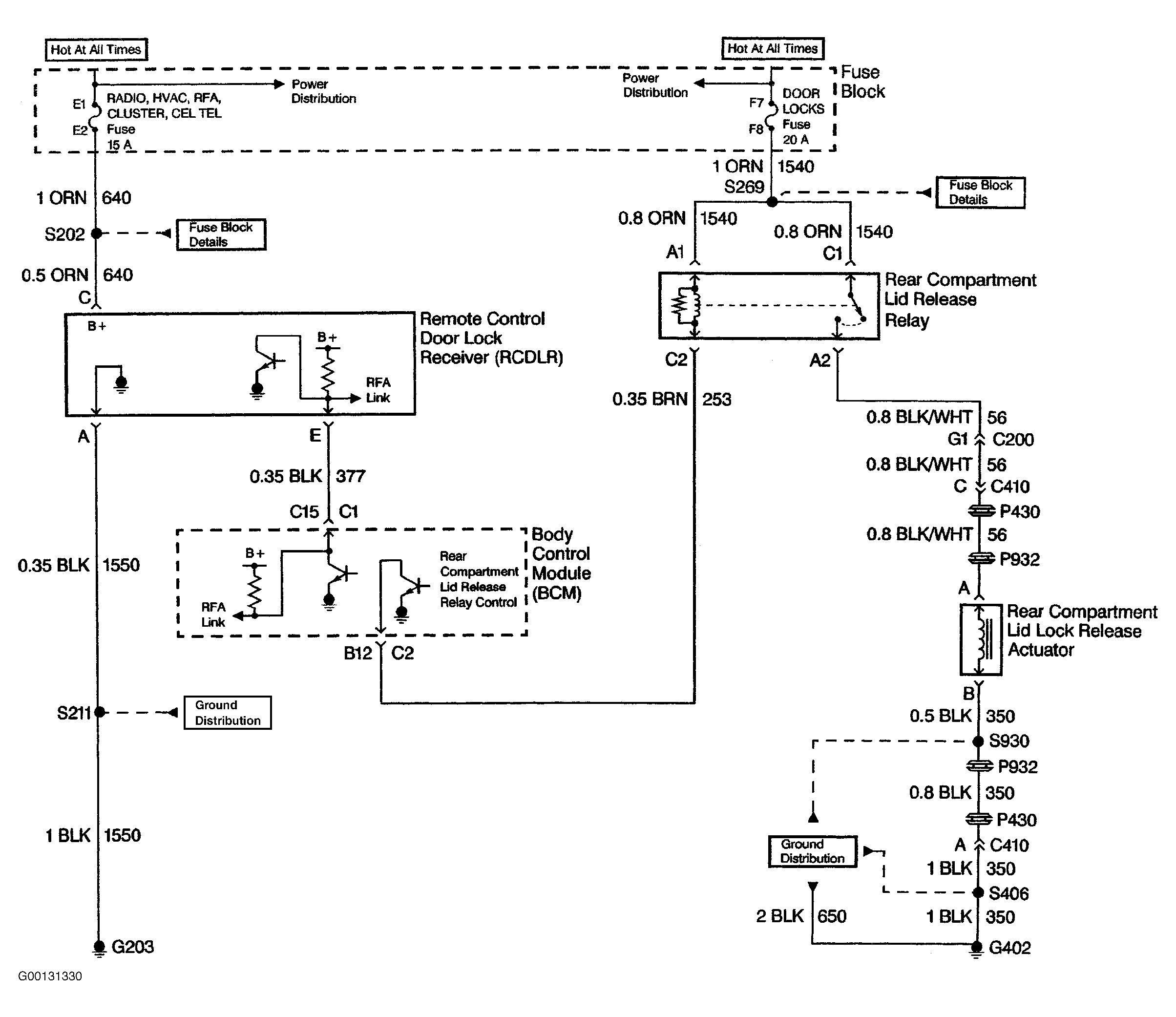

Fig 1: Keyless Entry Wiring Diagram
Courtesy of GENERAL MOTORS CORP.
Fig 2: Power Door Lock Wiring Diagram
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
