System Operation Check

NOTE: To check system operation, see Fig 1 -Fig 3 . If an abnormal result is found, refer to SYMPTOM INDEX table under SYSTEM TESTS.

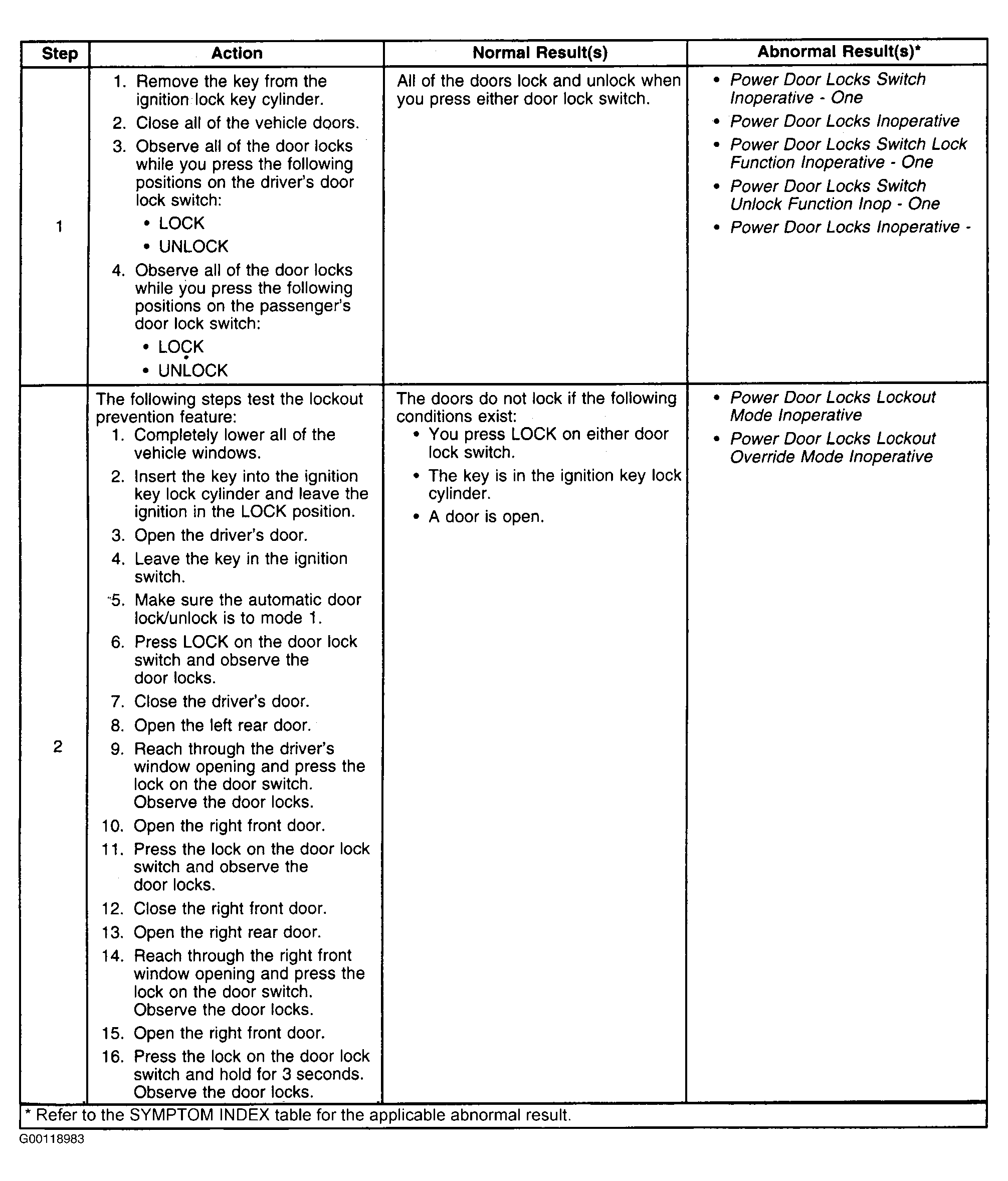

Fig 1: Power Door Locks System Check (1 Of 3)

Courtesy of GENERAL MOTORS CORP.

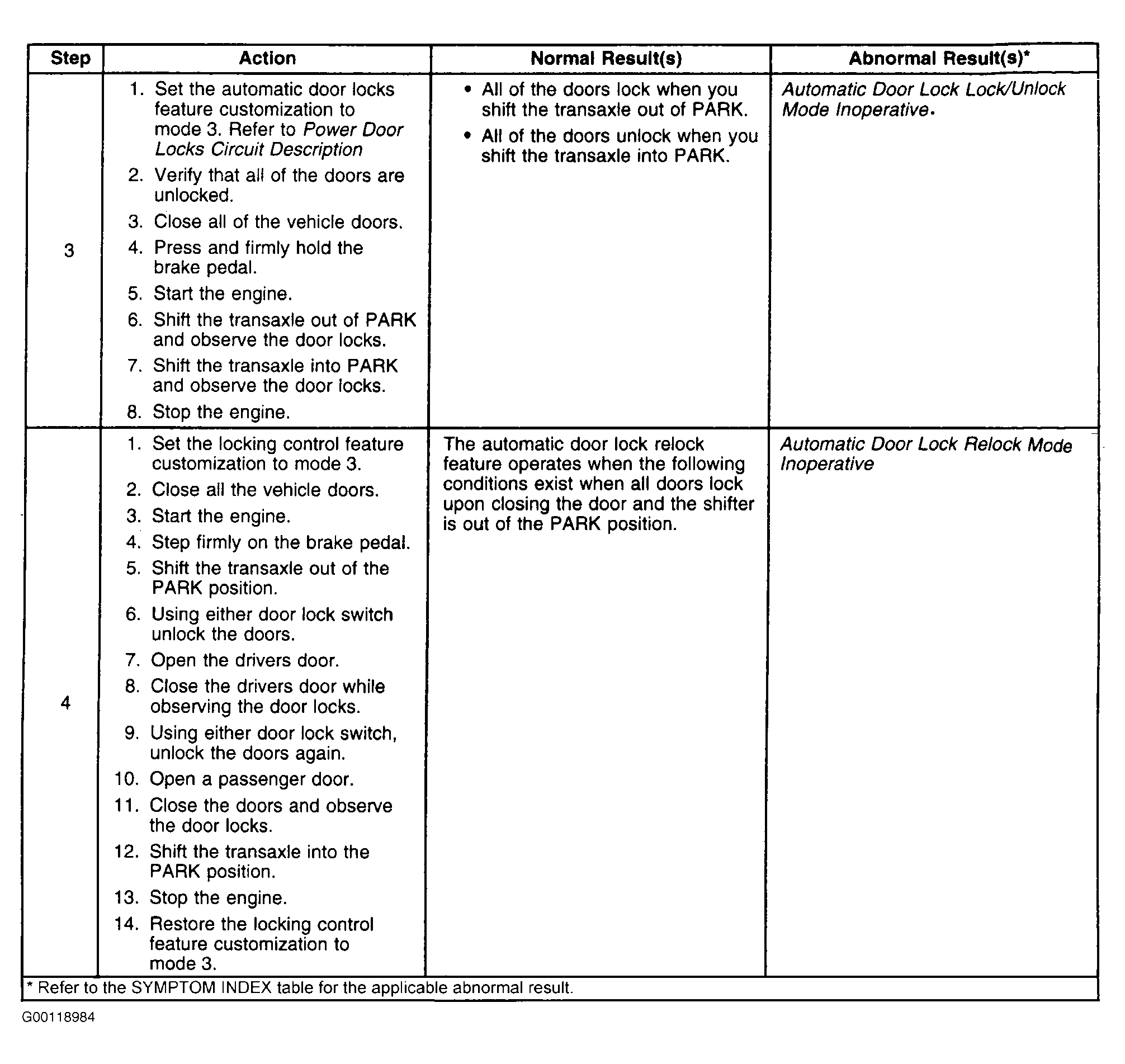

Fig 2: Power Door Locks System Check (2 Of 3)

Courtesy of GENERAL MOTORS CORP.

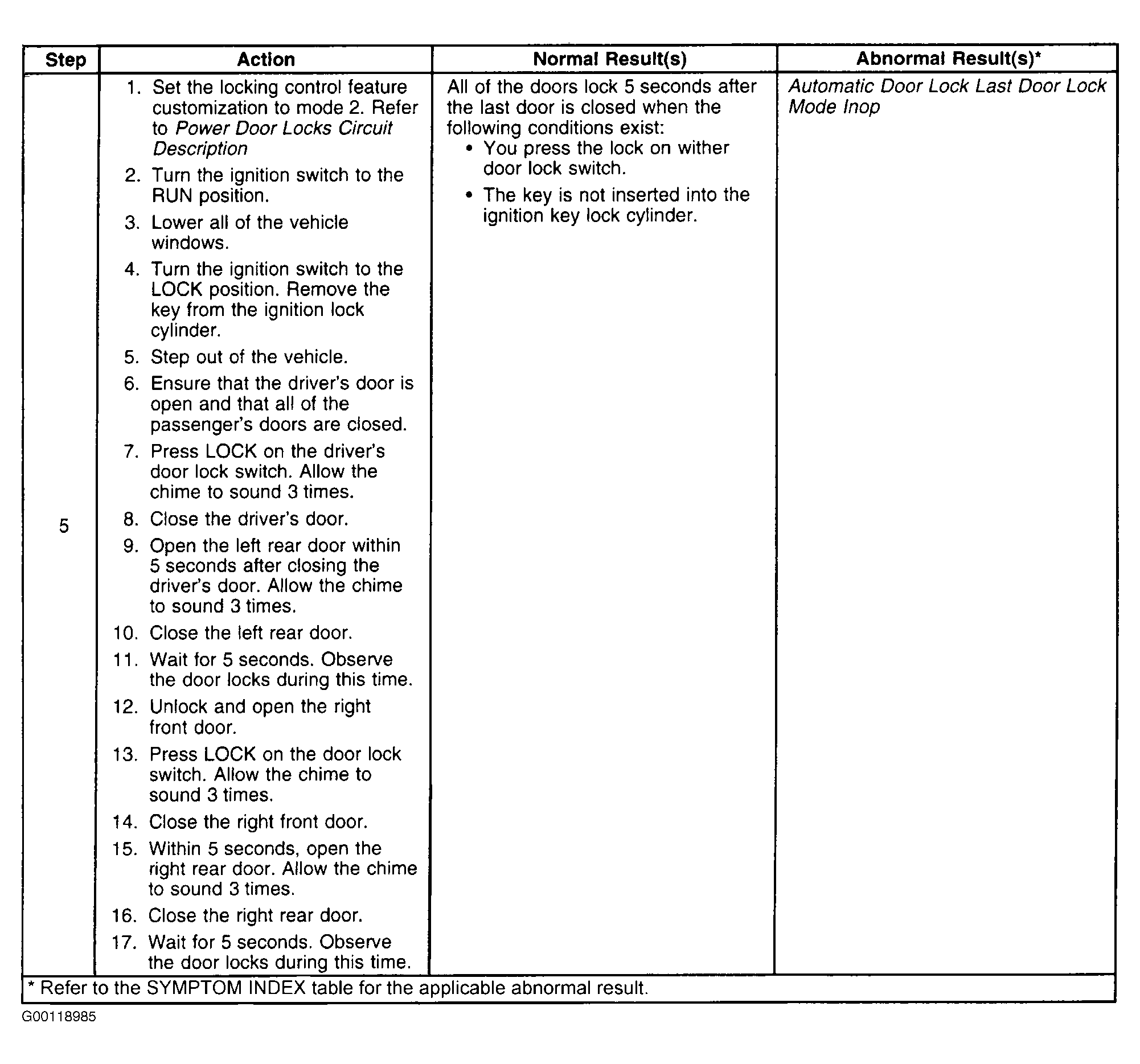

Fig 3: Power Door Locks System Check (3 Of 3)

Courtesy of GENERAL MOTORS CORP.
