Test K: One Power Door Lock Switch Unlock Function Inoperative

NOTE: If one power door lock switch unlock function is inoperative, see Fig 1 .

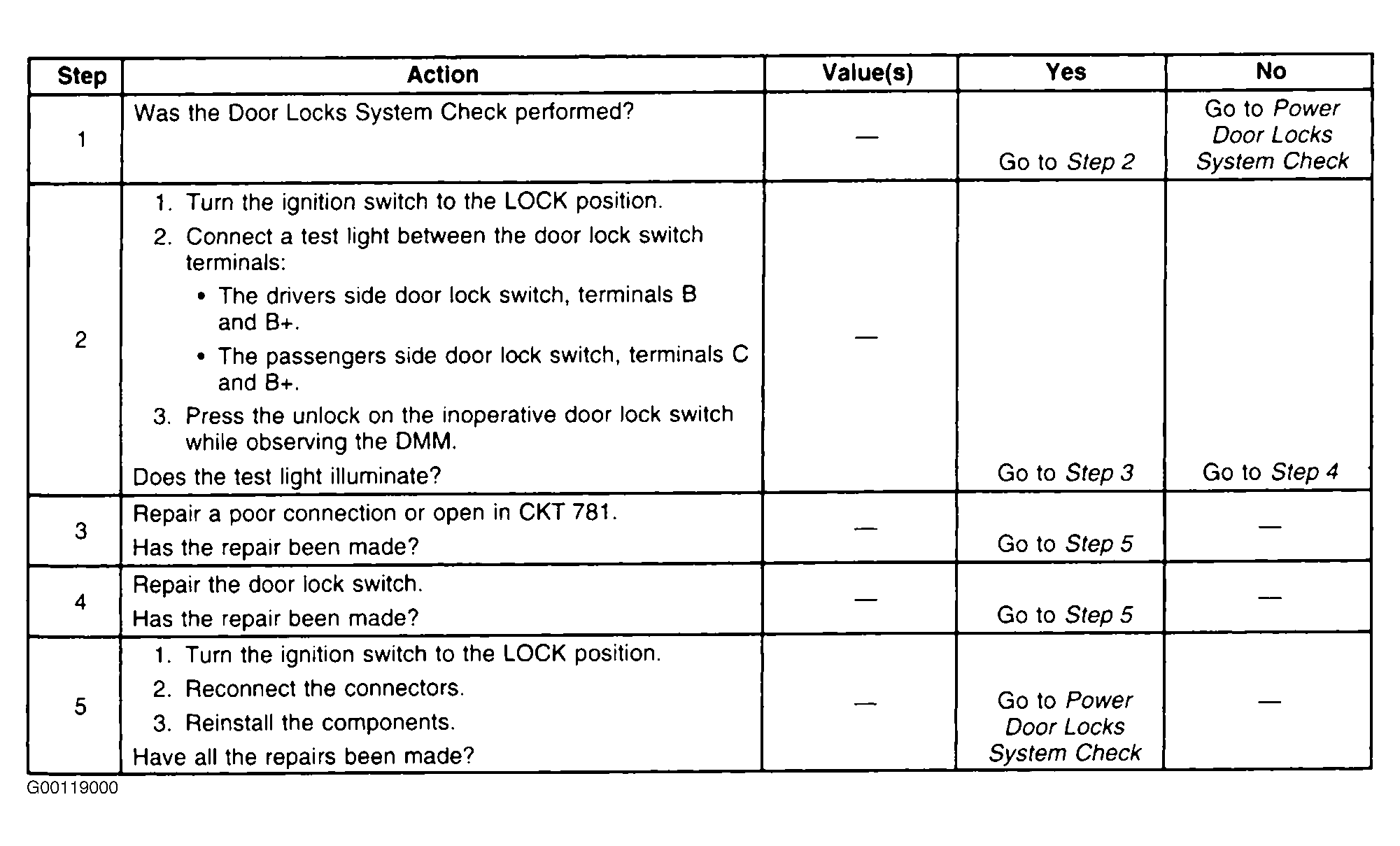

Fig 1: Test K: One Power Door Lock Switch Unlock Function Inoperative

Courtesy of GENERAL MOTORS CORP.
