Data Line Diagnosis
Refer to flowchart. See
Fig 1
.

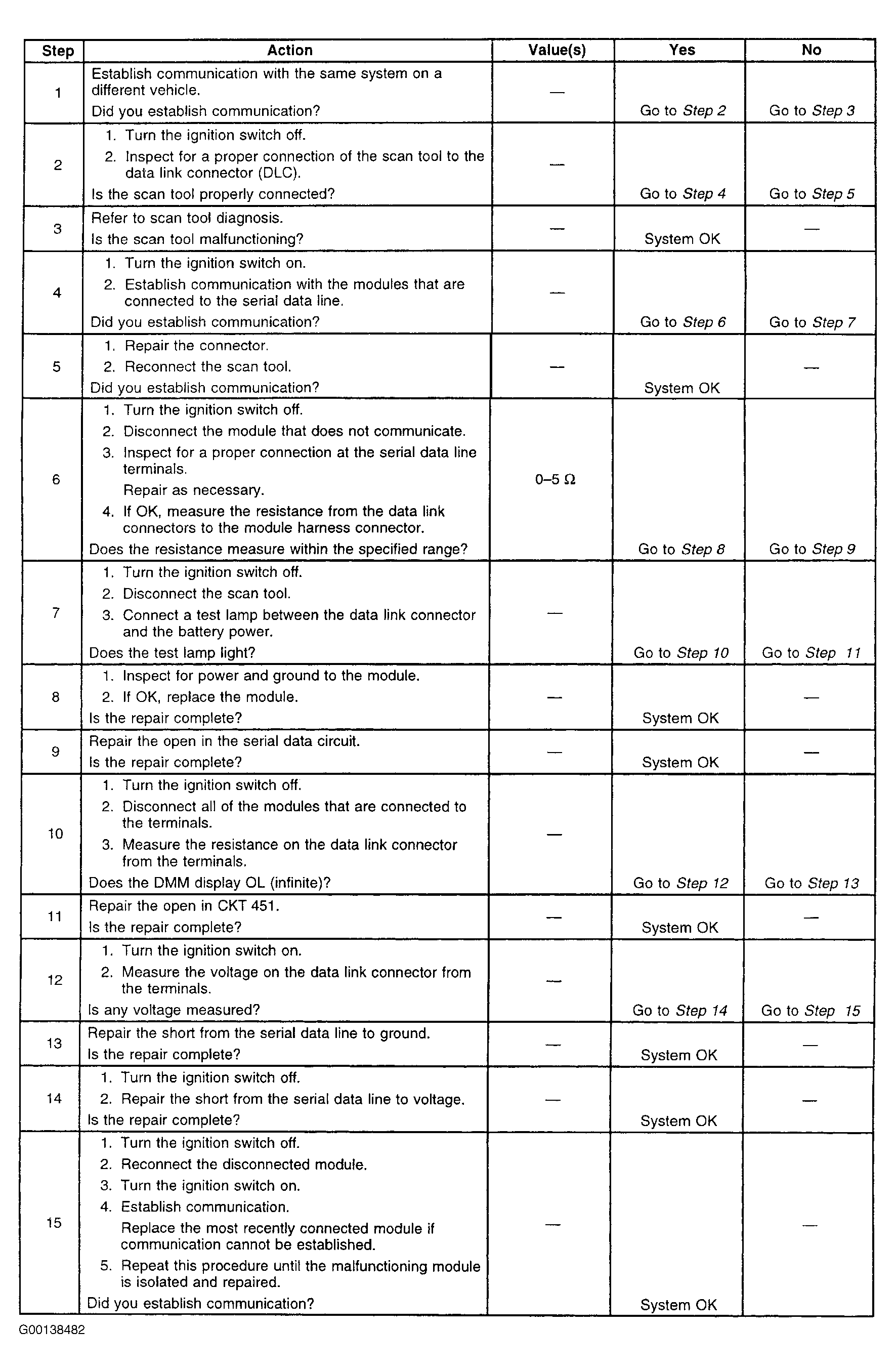

Fig 1: Serial Data Line Diagnostic Flowchart
Courtesy of GENERAL MOTORS CORP.
