Component Locations
COMPONENT LOCATIONS
| Component | Location |
|---|---|

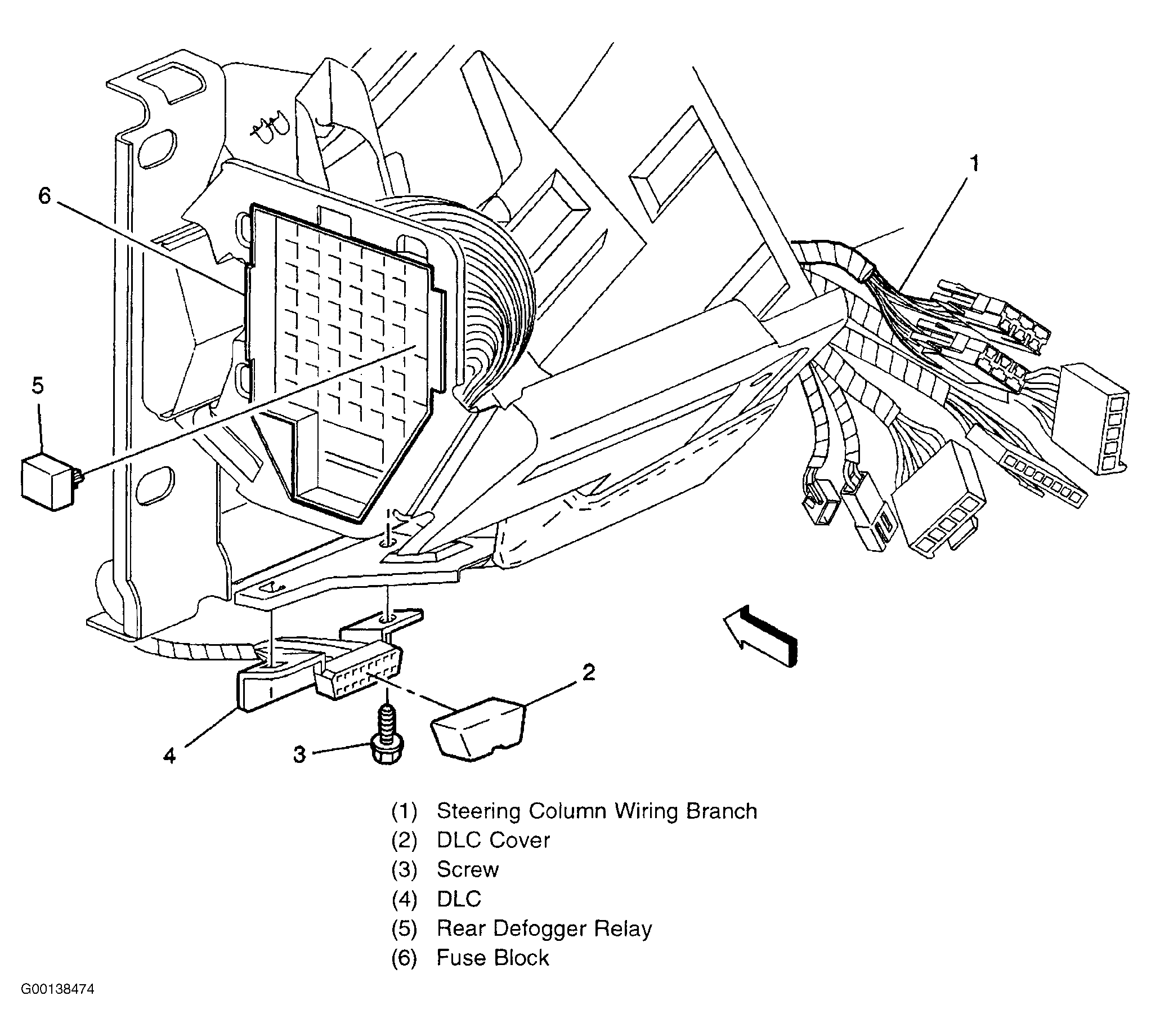

| Data Link Connector (DLC) | Driver Side Of Instrument Panel (Fig 1 ) |

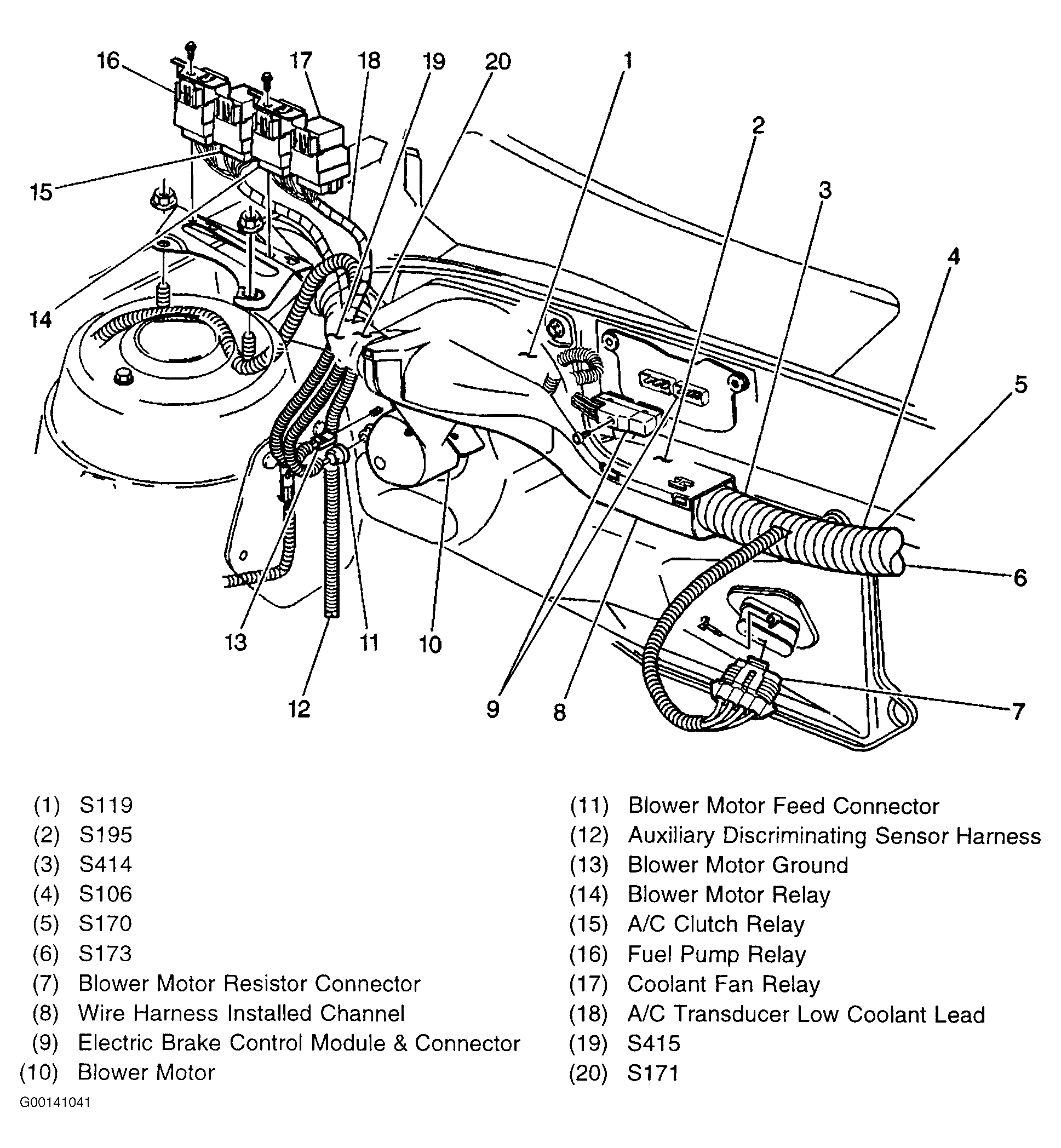

| Electronic Brake Control Module (EBCM) | Passenger Rear Of Engine Compartment (Fig 2 ) |
| Fuse Block | Driver Side Of Instrument Panel (Fig 1 ) |

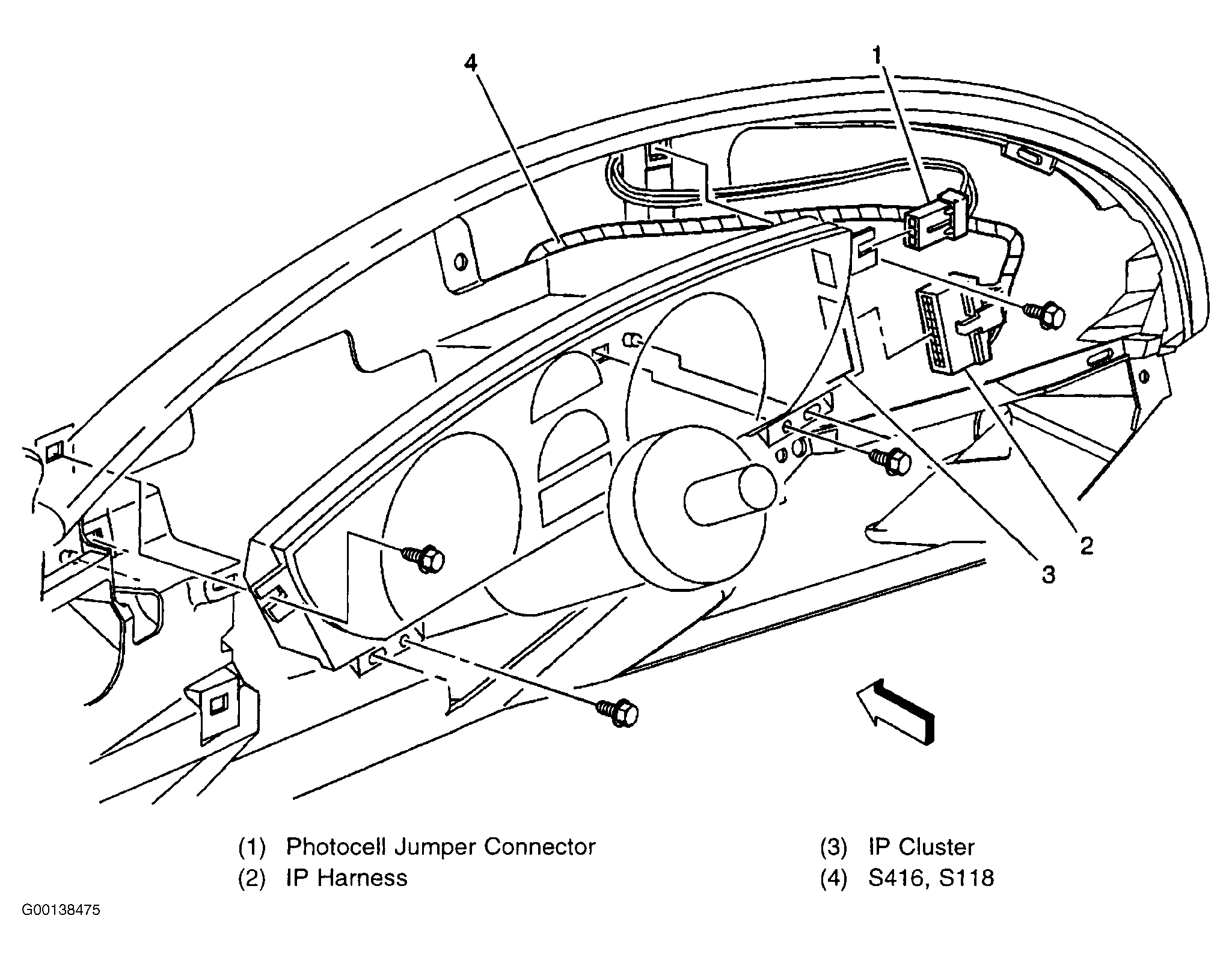

| Instrument Panel Cluster | Driver Side Of Instrument Panel (Fig 3 ) |

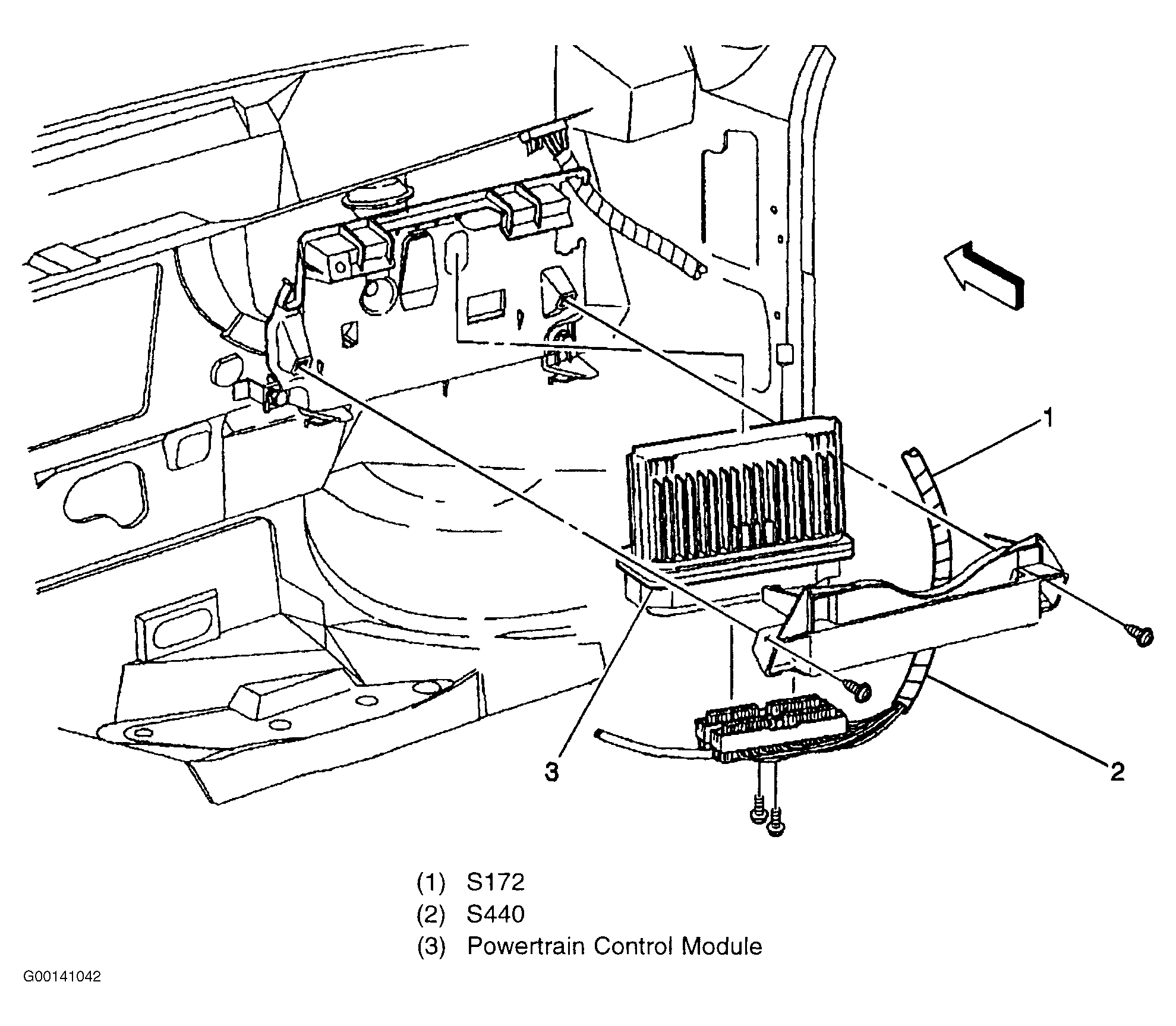

| Powertrain Control Module (PCM) | Passenger Front Of Instrument Panel (Fig 4 ) |

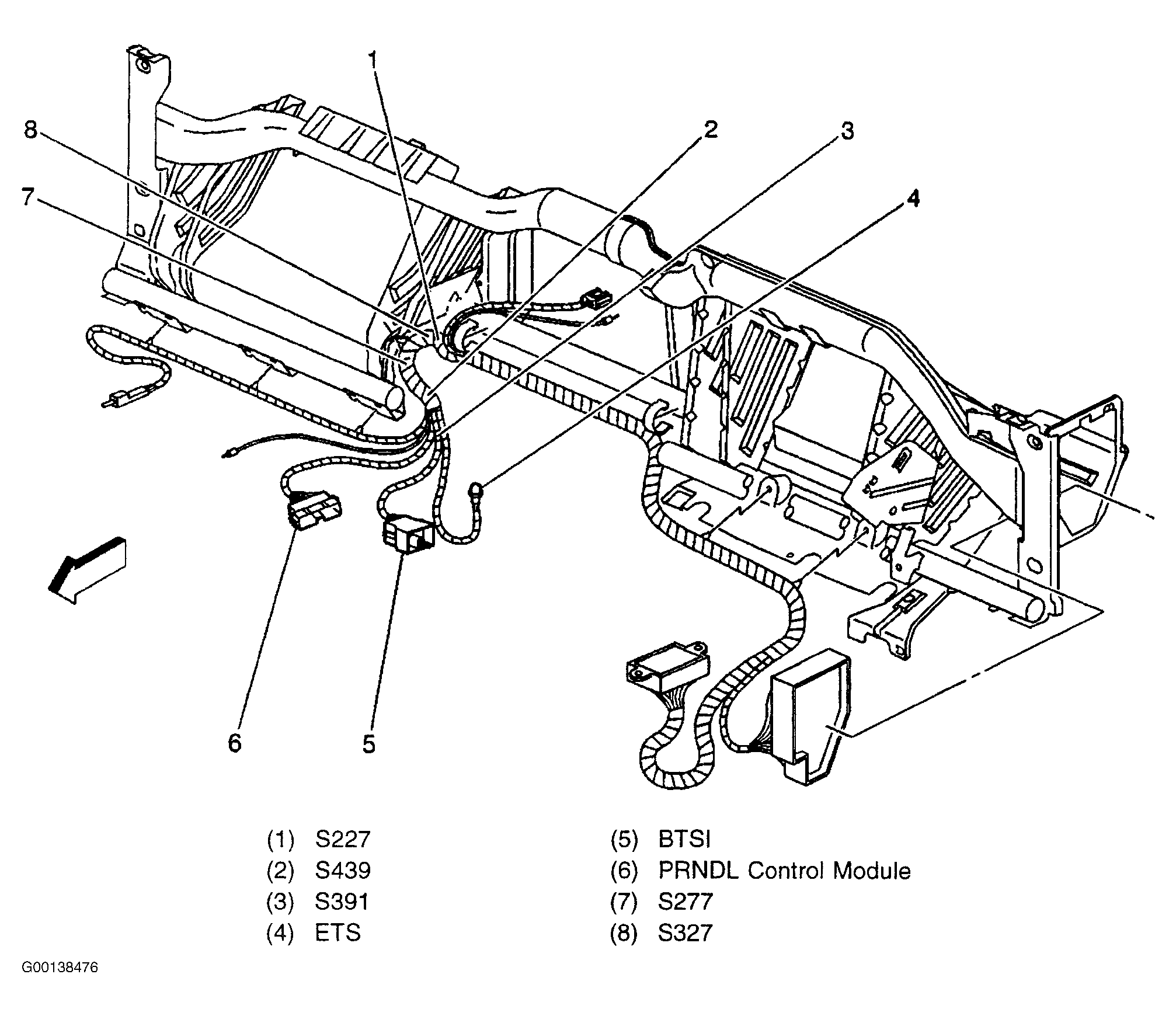

| PNRDL Control Module | Center Of Instrument Panel, Near Tie Bar (Fig 5 ) |

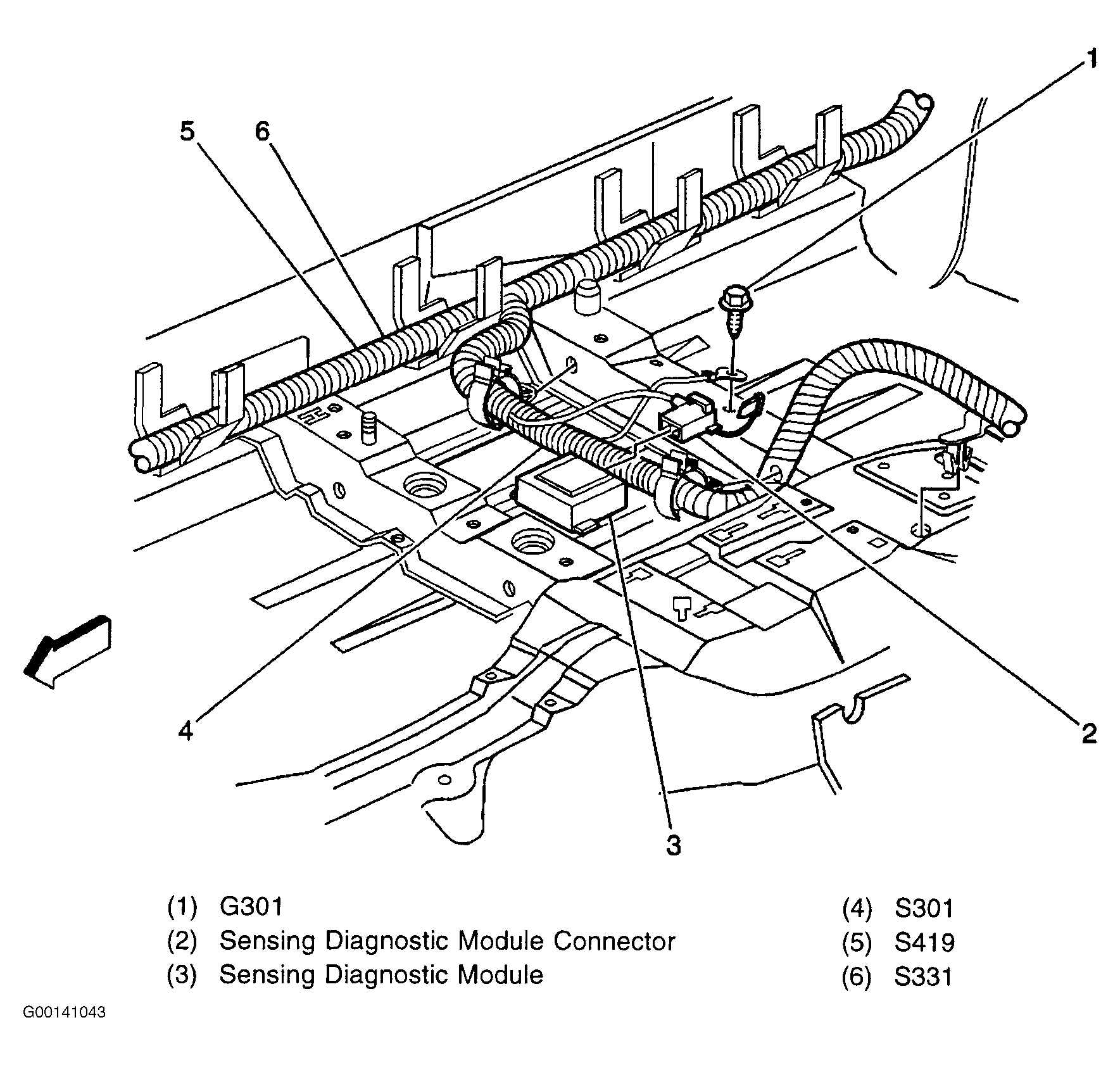

| Sensing And Diagnostic Module (SDM) | Passenger Side Of Cabin (Fig 6 ) |

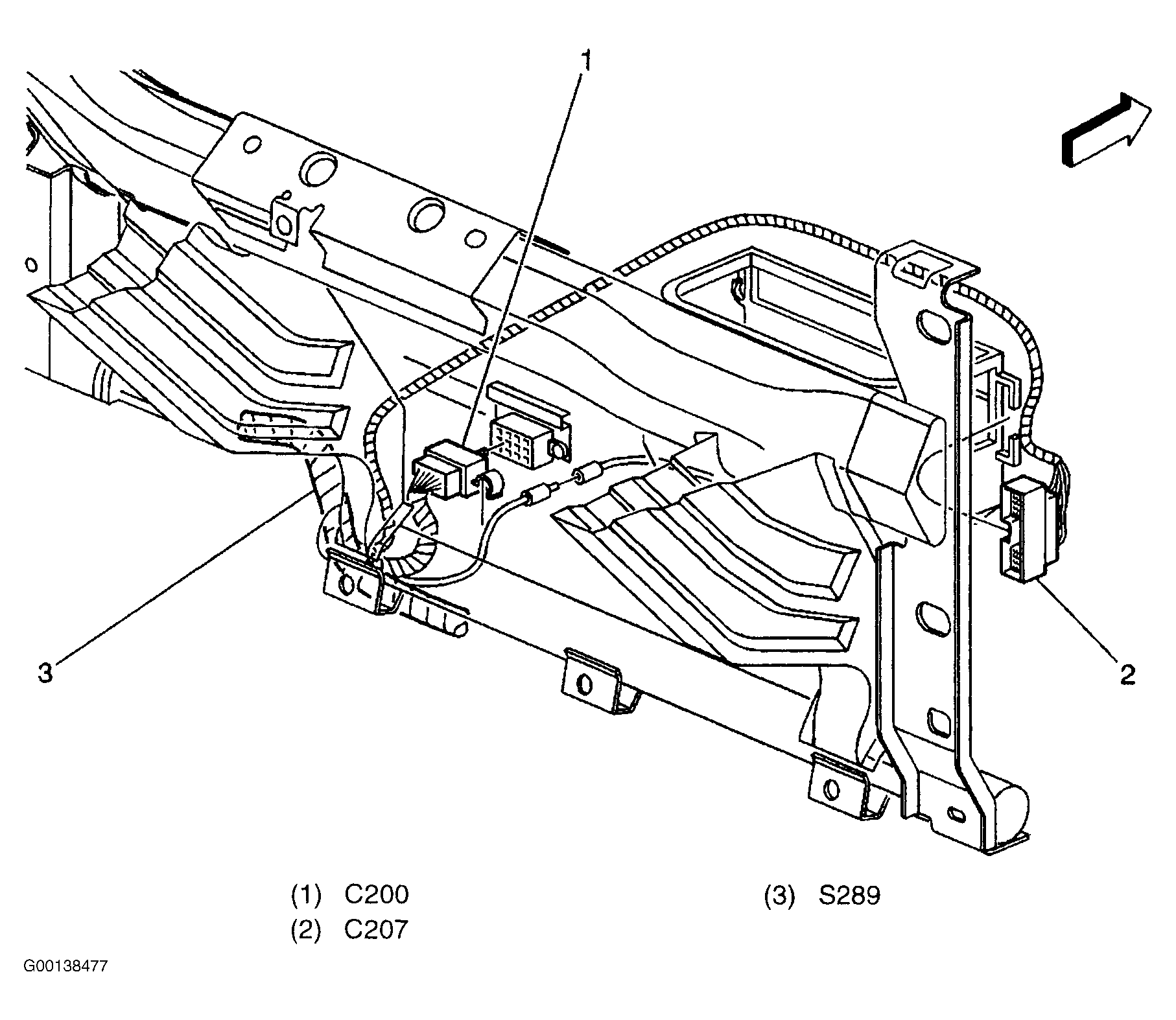

| C200 | Passenger Side Of Instrument Panel (Fig 7 ) |

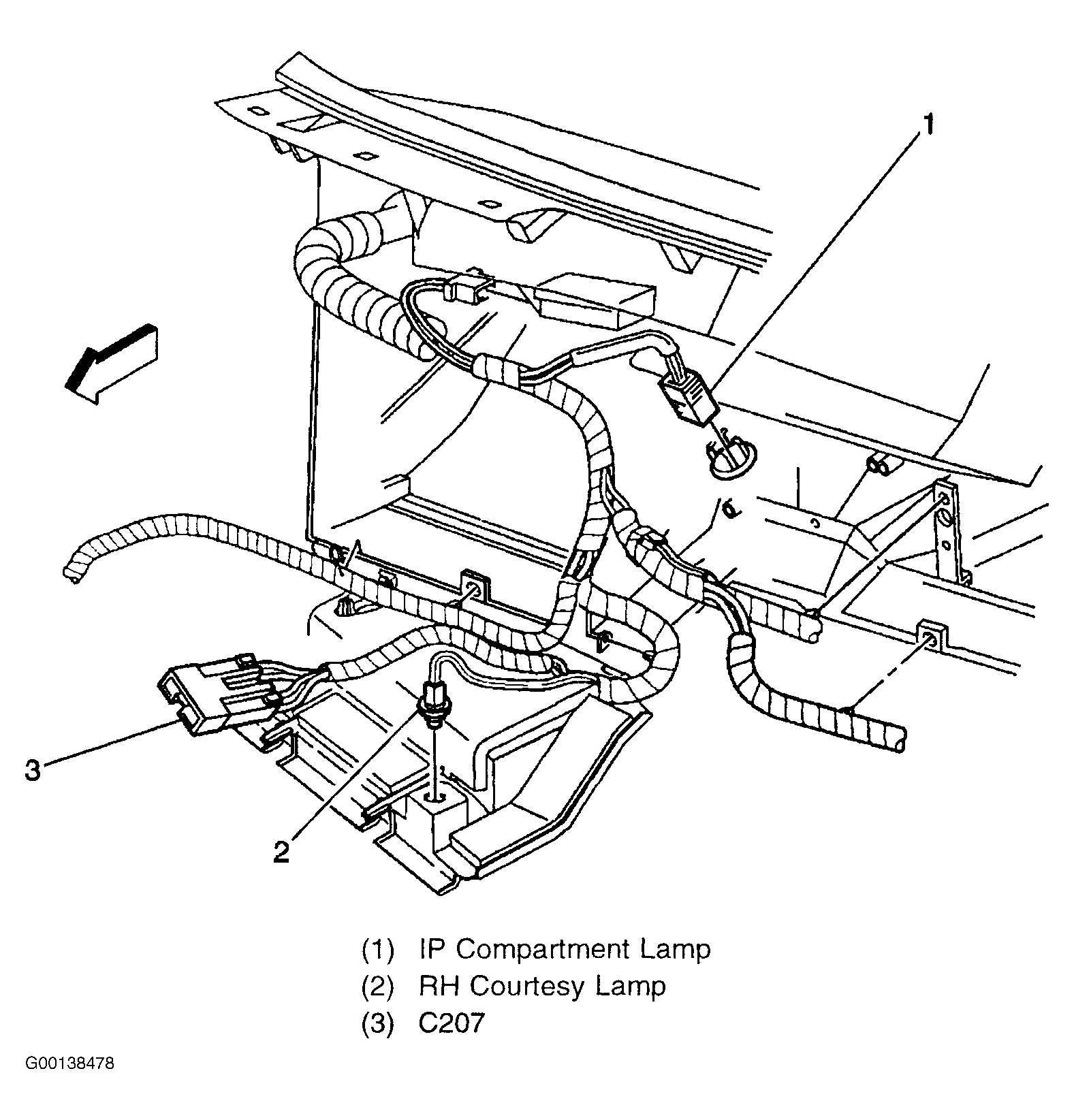

| C207 | Passenger Lower Instrument Panel (Fig 7 and Fig 8 ) |

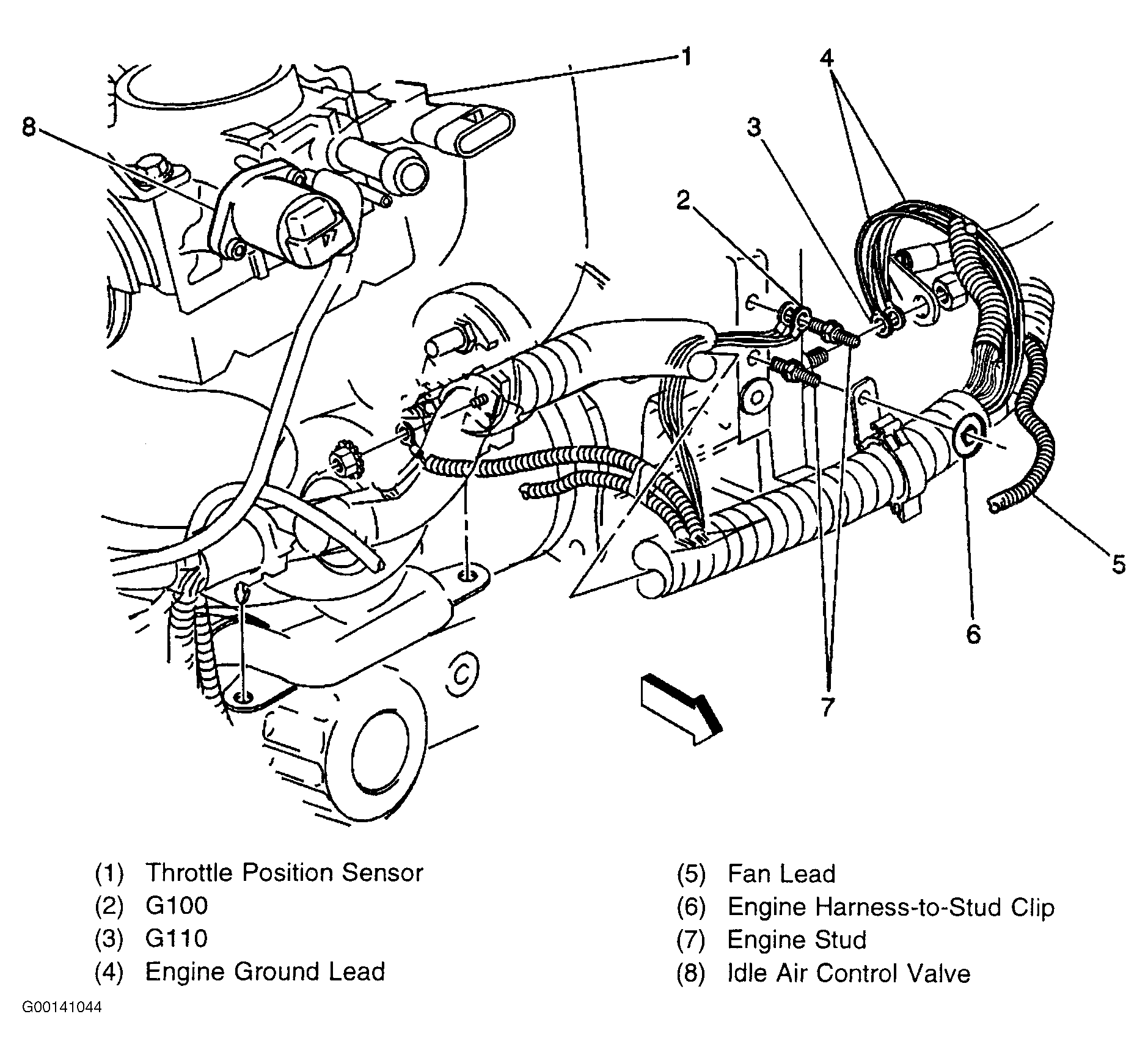

| G110 | Front Of Engine Compartment (Fig 9 ) |

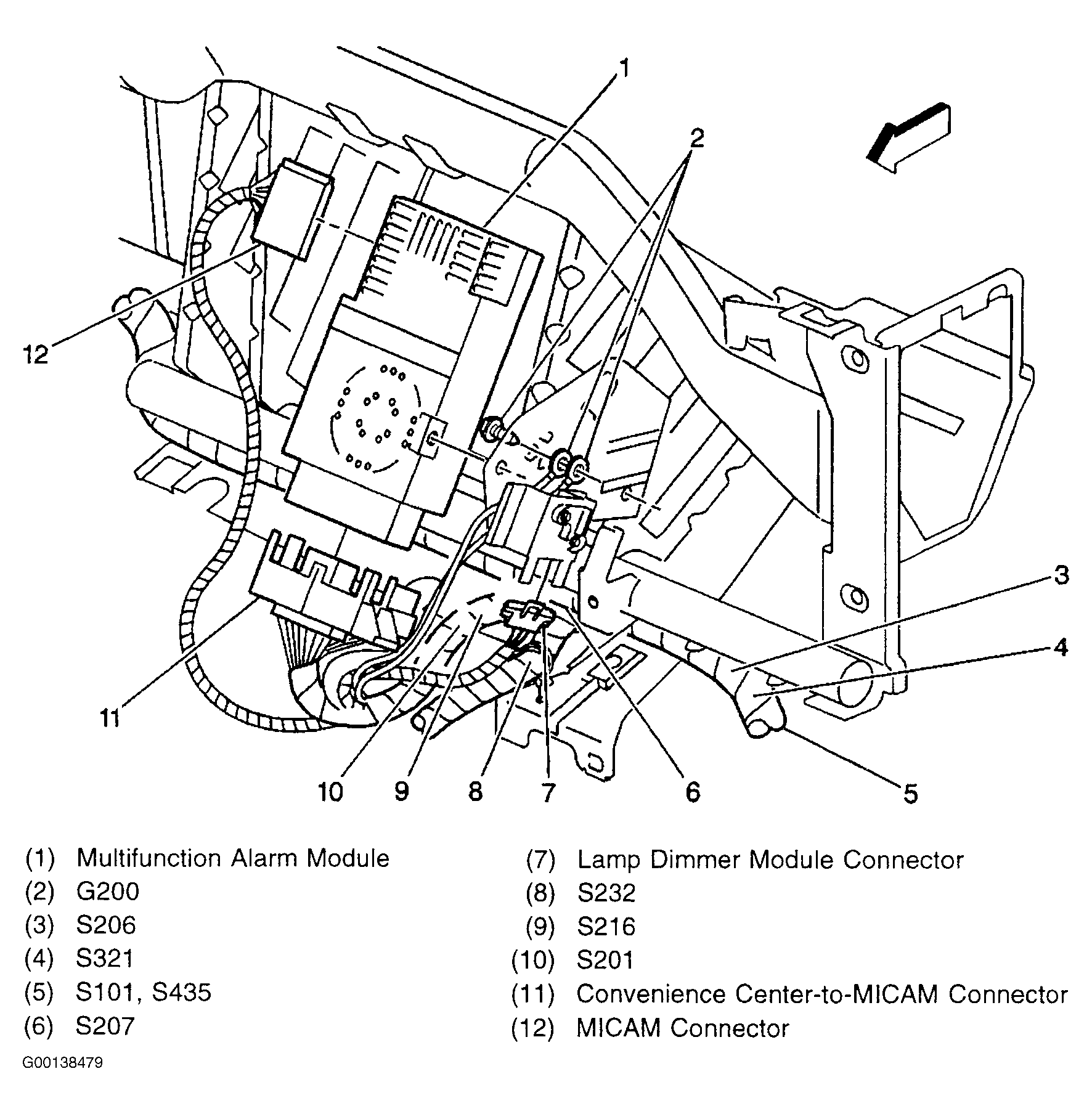

| G200 | Driver Side Of Instrument Panel, Near Steering Column (Fig 10 ) |

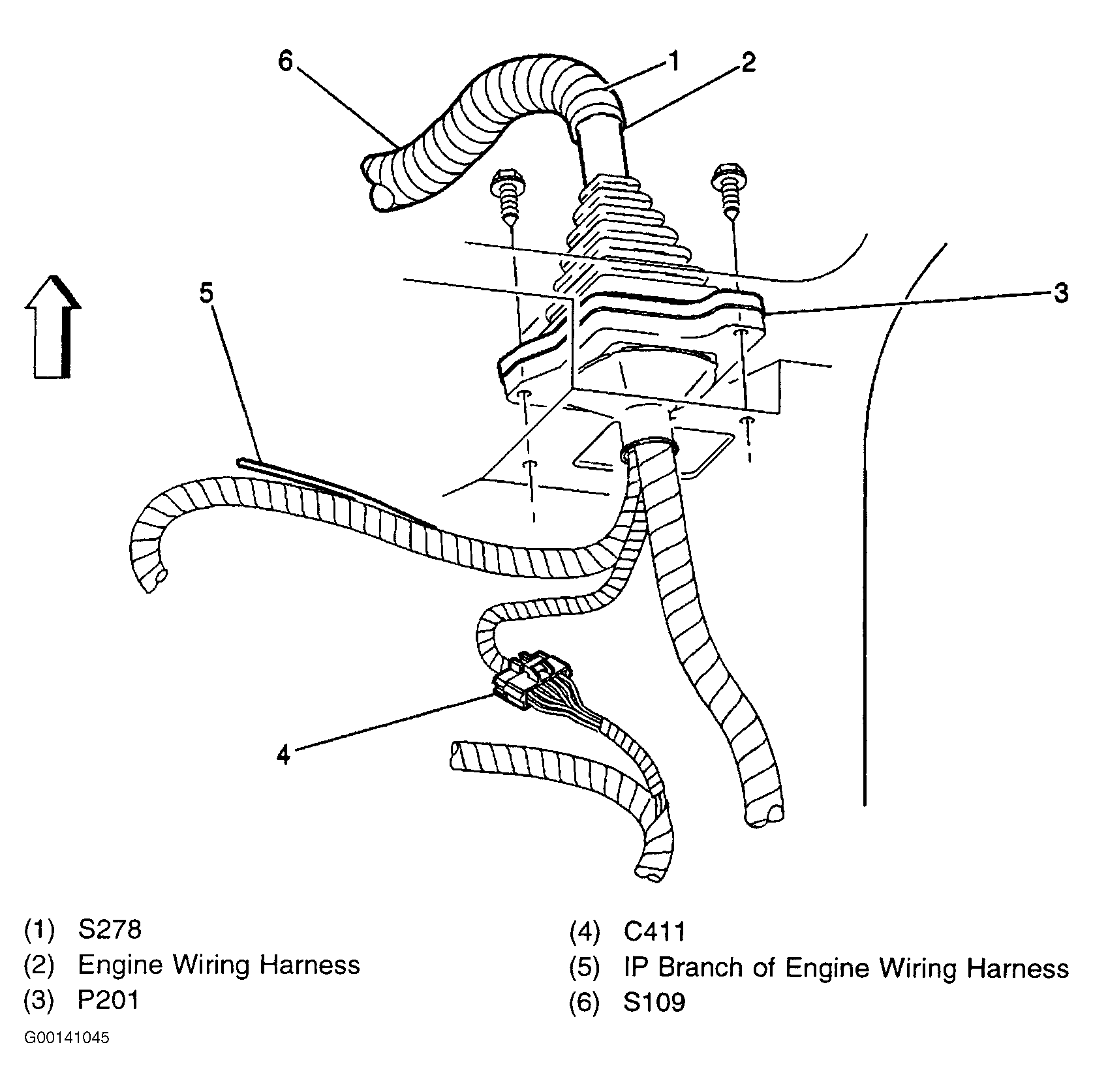

| P201 | Passenger Upper Side Of Instrument Panel (Fig 11 ) |
| S171 | Passenger Rear Of Engine Compartment (Fig 2 ) |

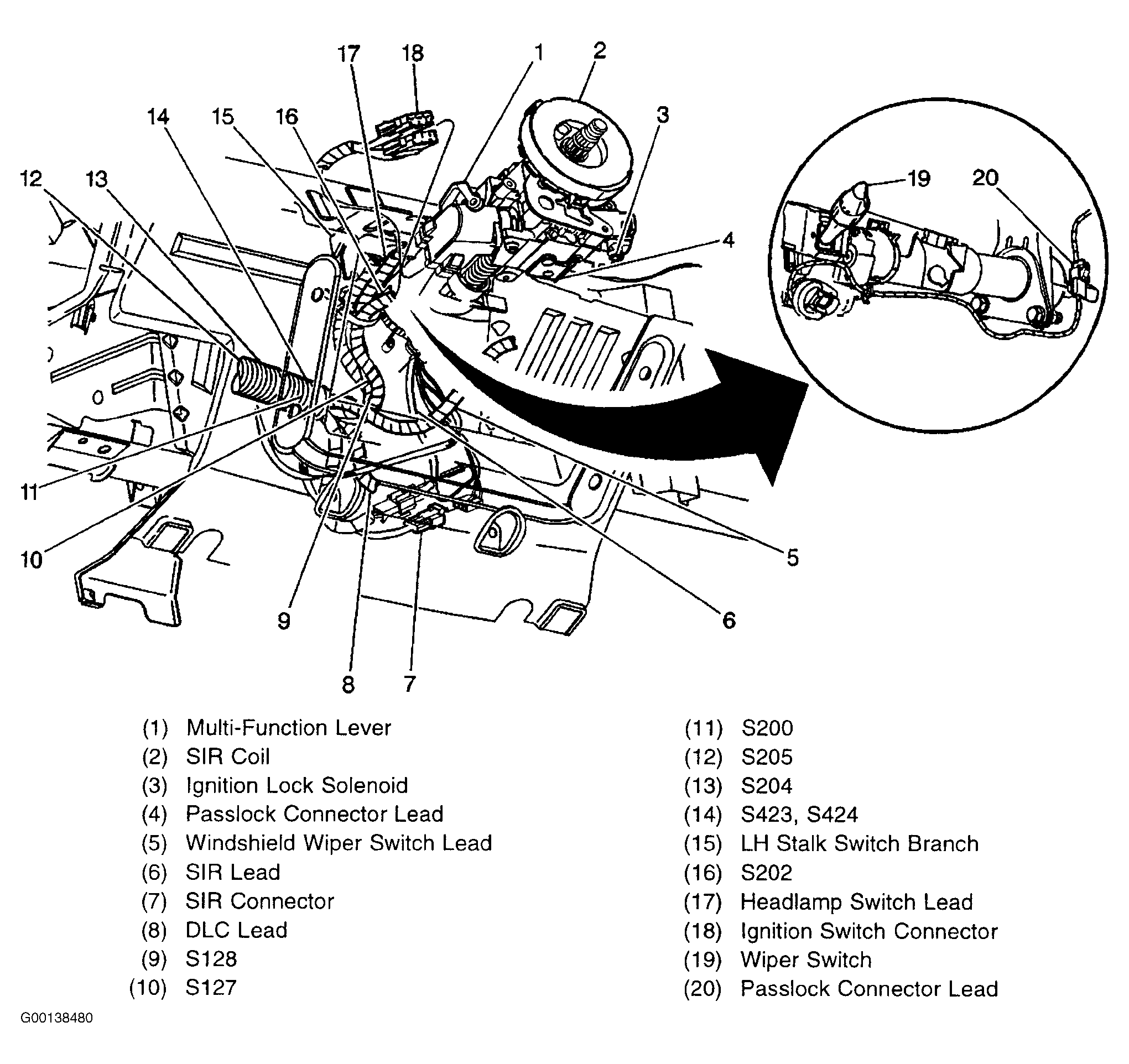

| S205 | Lower Driver Side Of Steering Column (Fig 12 ) |

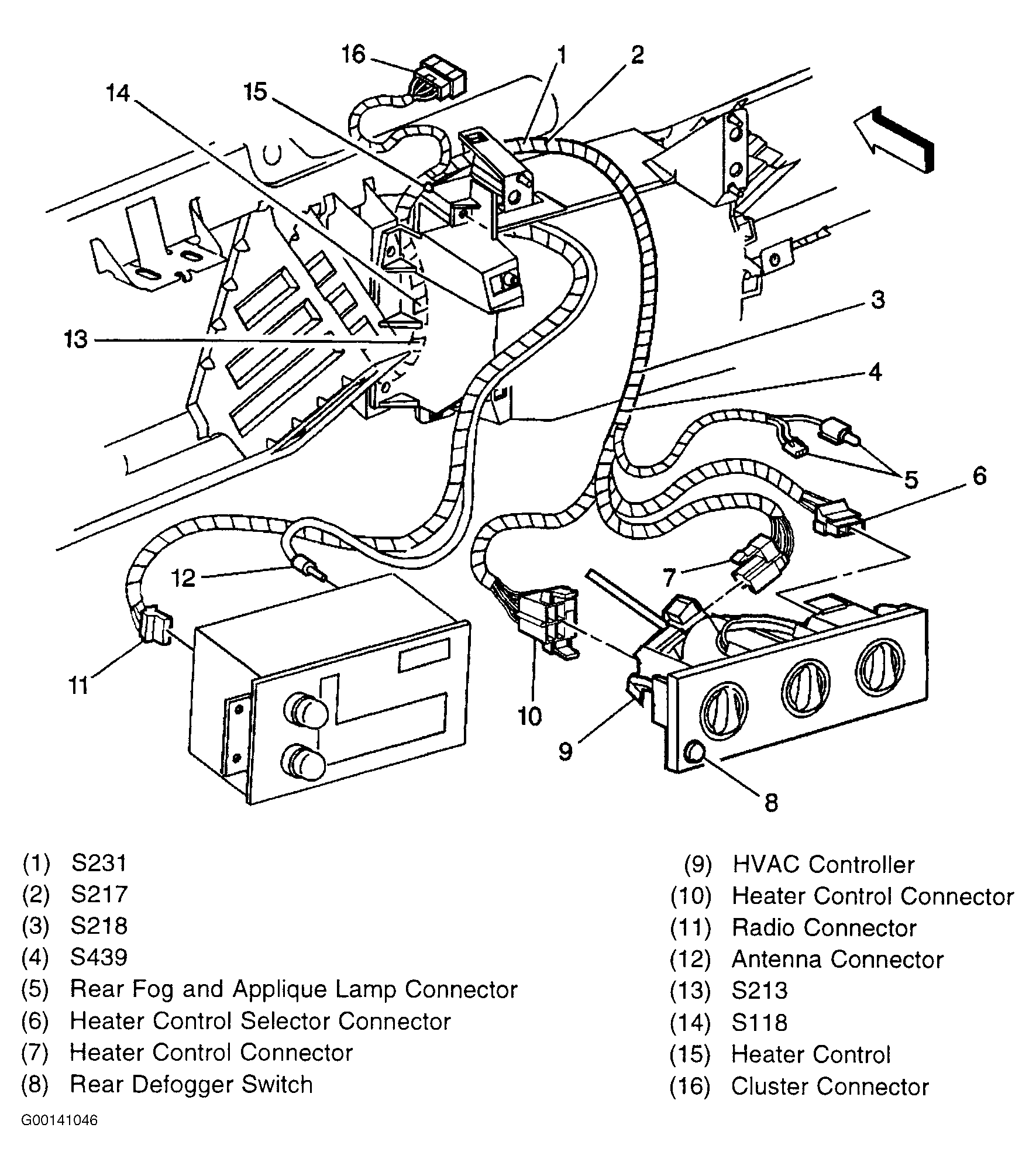

| S217 | Center Of Instrument Panel, Near HVAC Control Assembly (Fig 13 ) |
| S277 | Center Of Instrument Panel, Near Tie Bar (Fig 5 ) |
| S278 | Passenger Upper Side Of Instrument Panel (Fig 11 ) |
