Circuit Protection Devices

CIRCUIT PROTECTION DEVICES

Component Component Location
Diode, A/C Compressor Near A/C compressor, in harness.

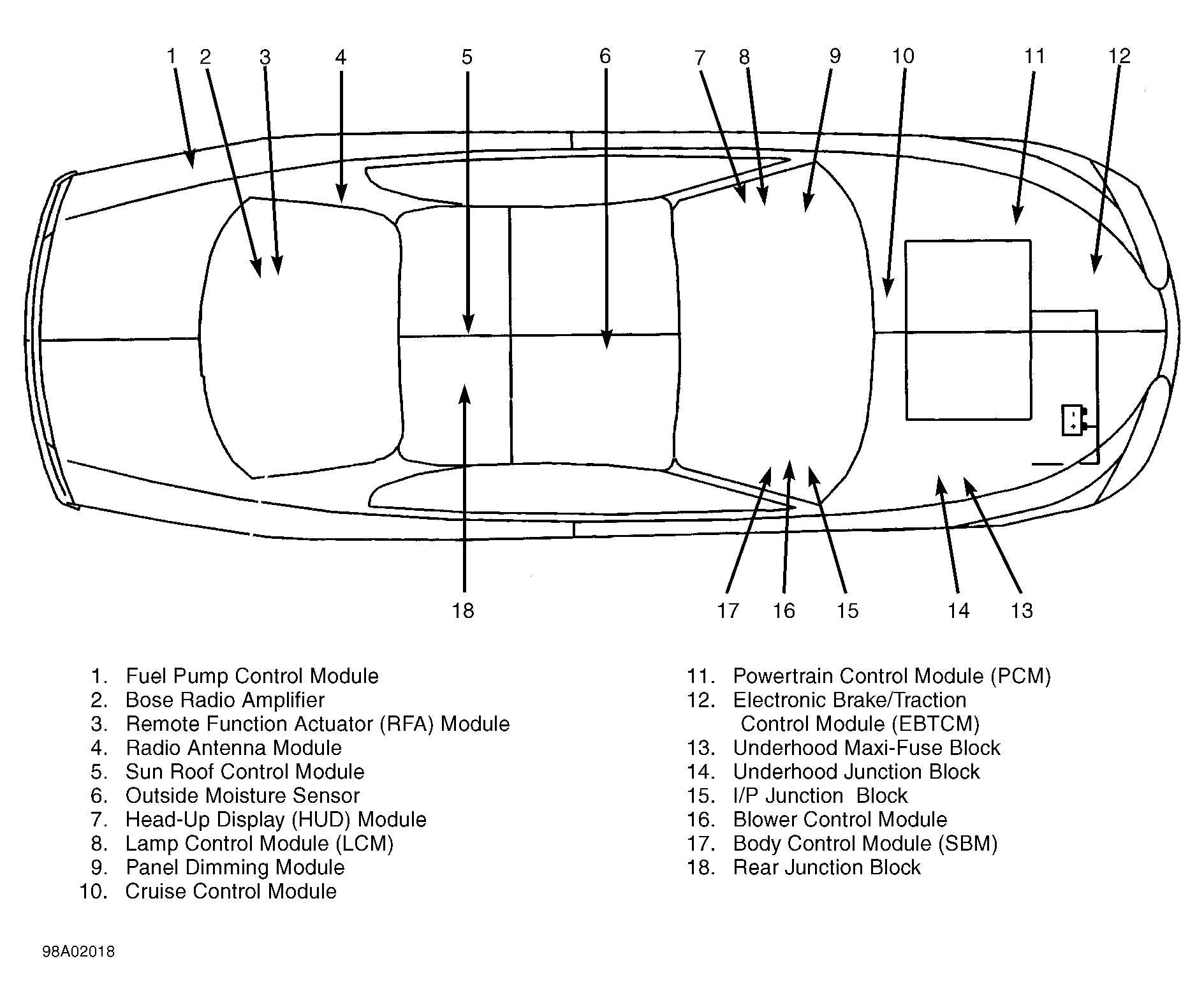

I/P Junction Block Behind glove box. See Figure .
Rear Junction Block Below right side of rear seat. See Figure .
Underhood Junction Block On right front of engine compartment, near battery. See Figure .
Underhood Maxi-Fuse Block On right front of engine compartment, forward of strut tower. See Figure .
