Instrument Panel Fuse Block

NOTE: Instrument panel fuse block is located on passenger's side end of instrument panel. See Fig 1 .

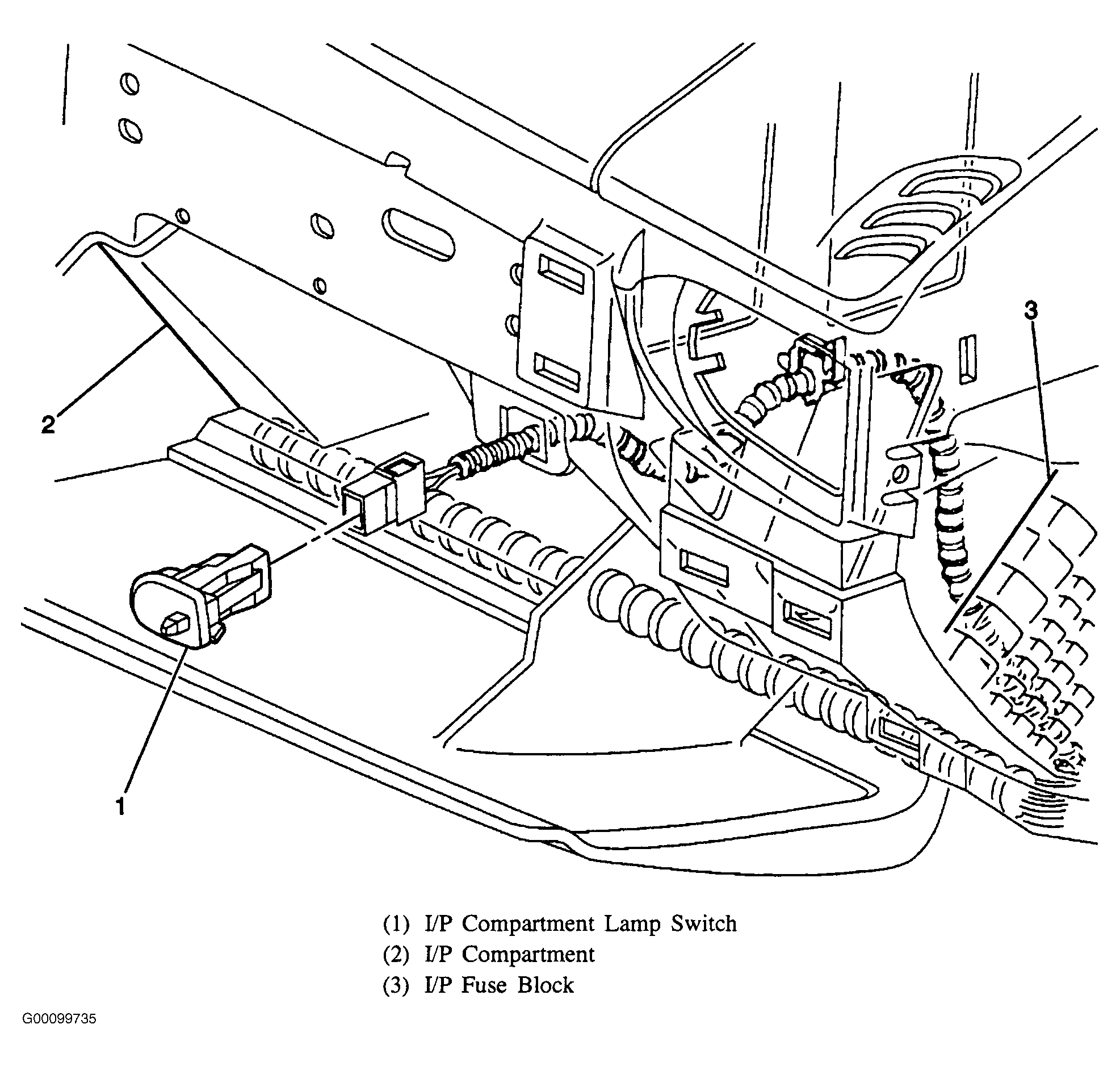

Fig 1: Locating Instrument Panel Fuse Block
G00099735Courtesy of GENERAL MOTORS CORP.

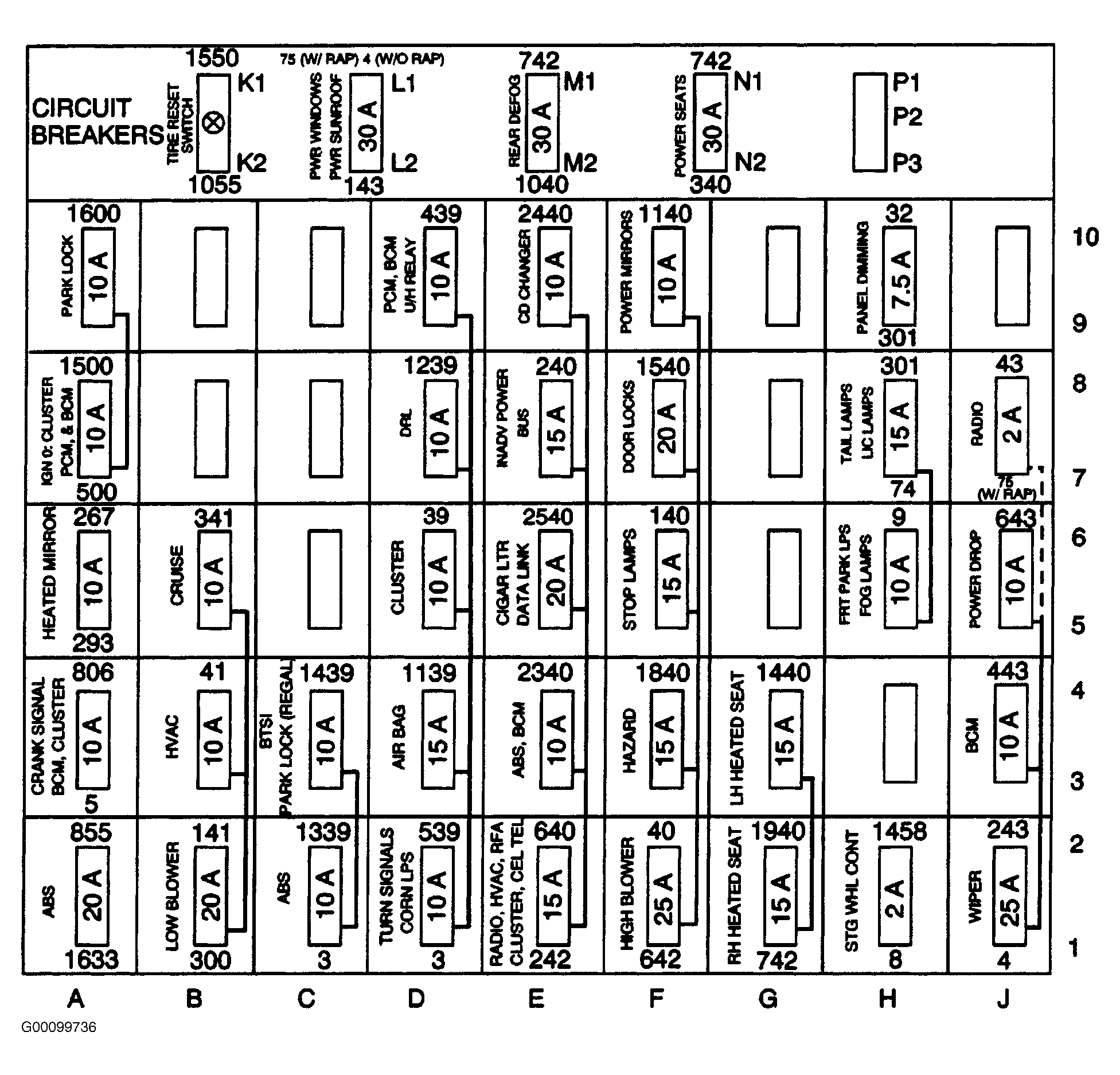

Fig 2: Identifying Instrument Panel Fuse Block Components
G00099736Courtesy of GENERAL MOTORS CORP.

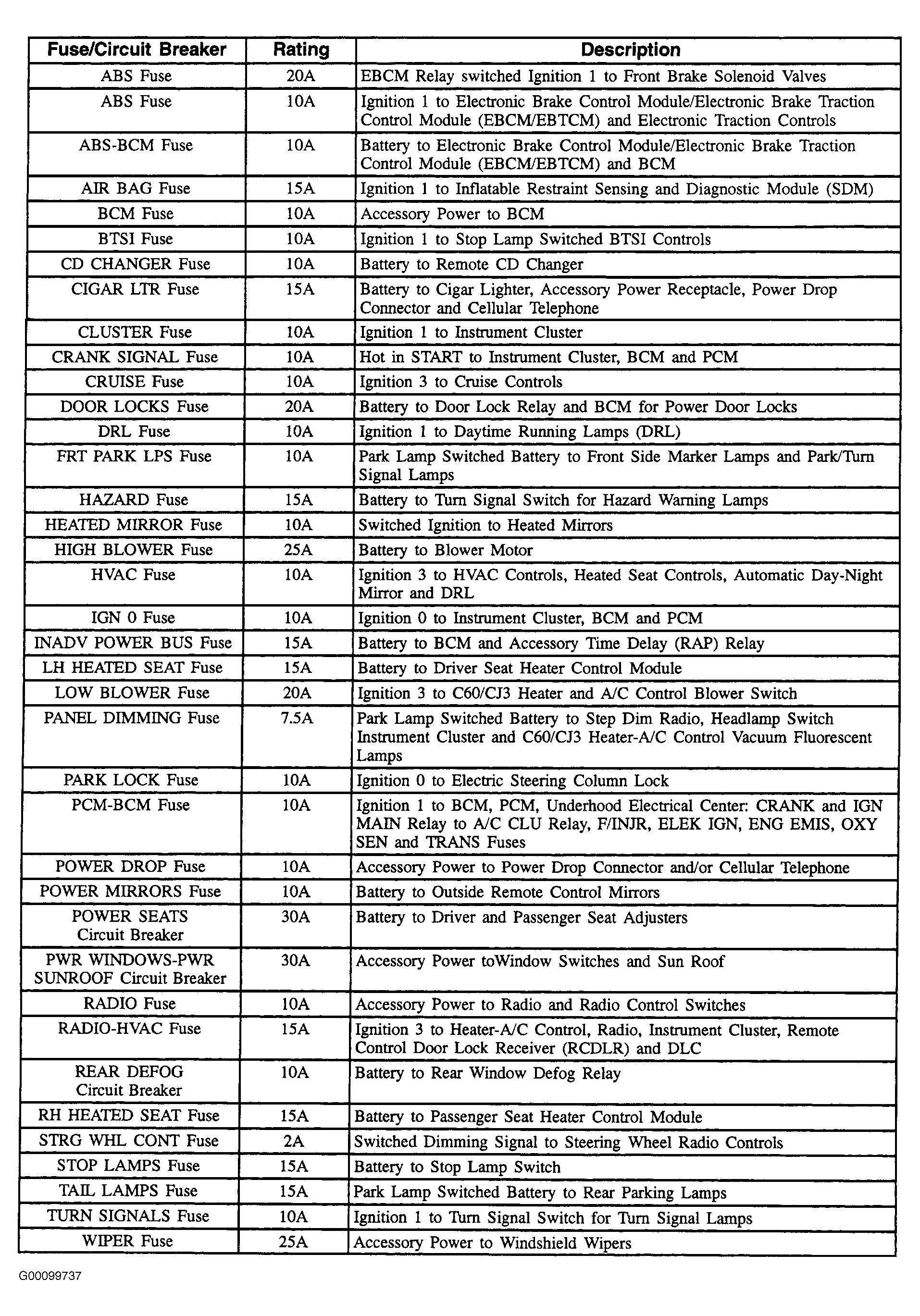

Fig 3: Instrument Panel Fuse Block Legend
G00099737Courtesy of GENERAL MOTORS CORP.
