LEMON Manuals
: Even more car manuals for everyone
Home
>>
Buick
>>
1997
>>
Regal GS
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Connector Terminal Identification
>>
Windshield Wiper
>>
Century, Grand PRIX & Regal
Century, Grand PRIX & Regal

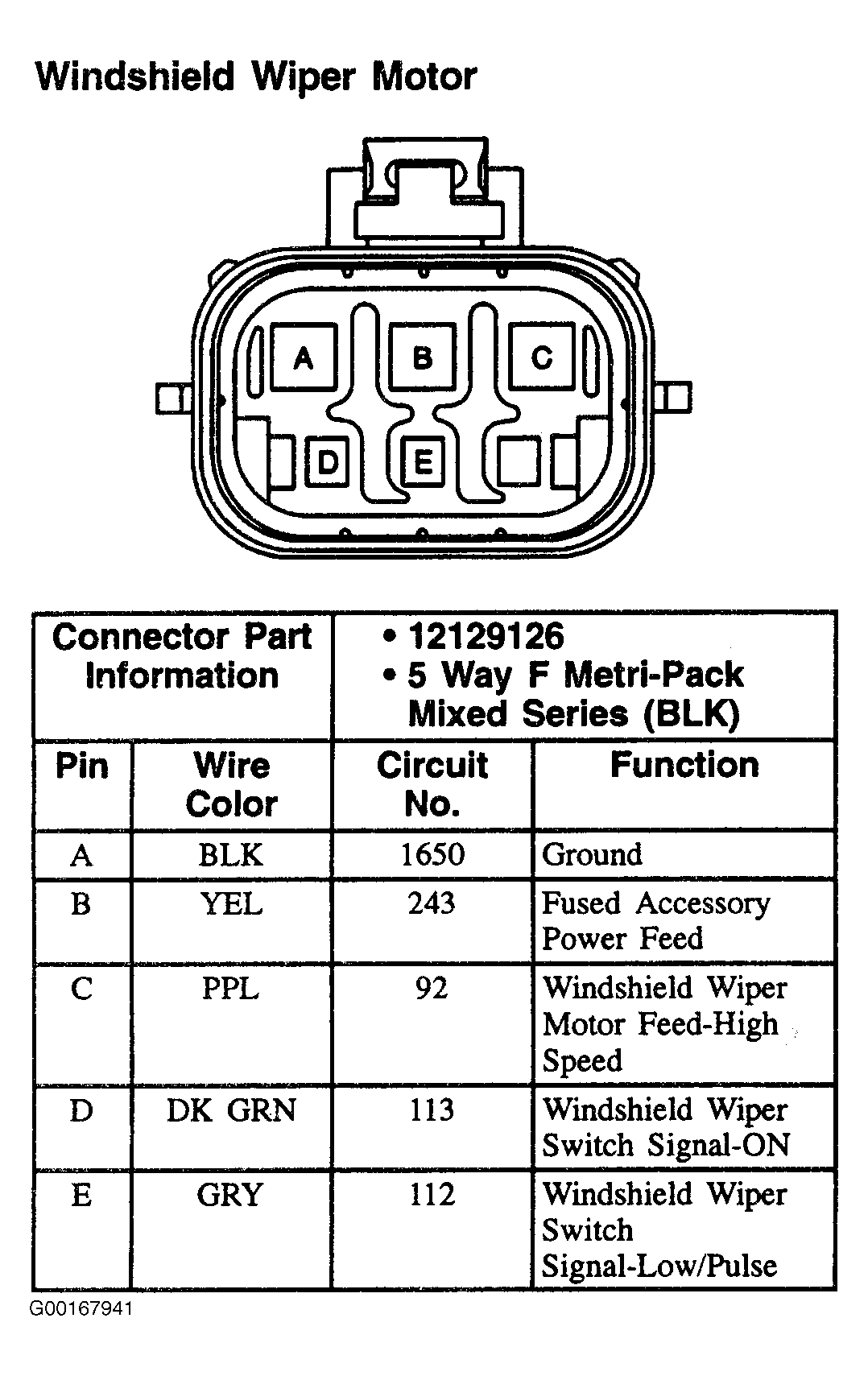

Fig 1: Windshield Wiper Motor (Century, Grand Prix & Regal) - 5-Pin Connector (Black)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
