Outside Remote Control Rearview Mirror Switch

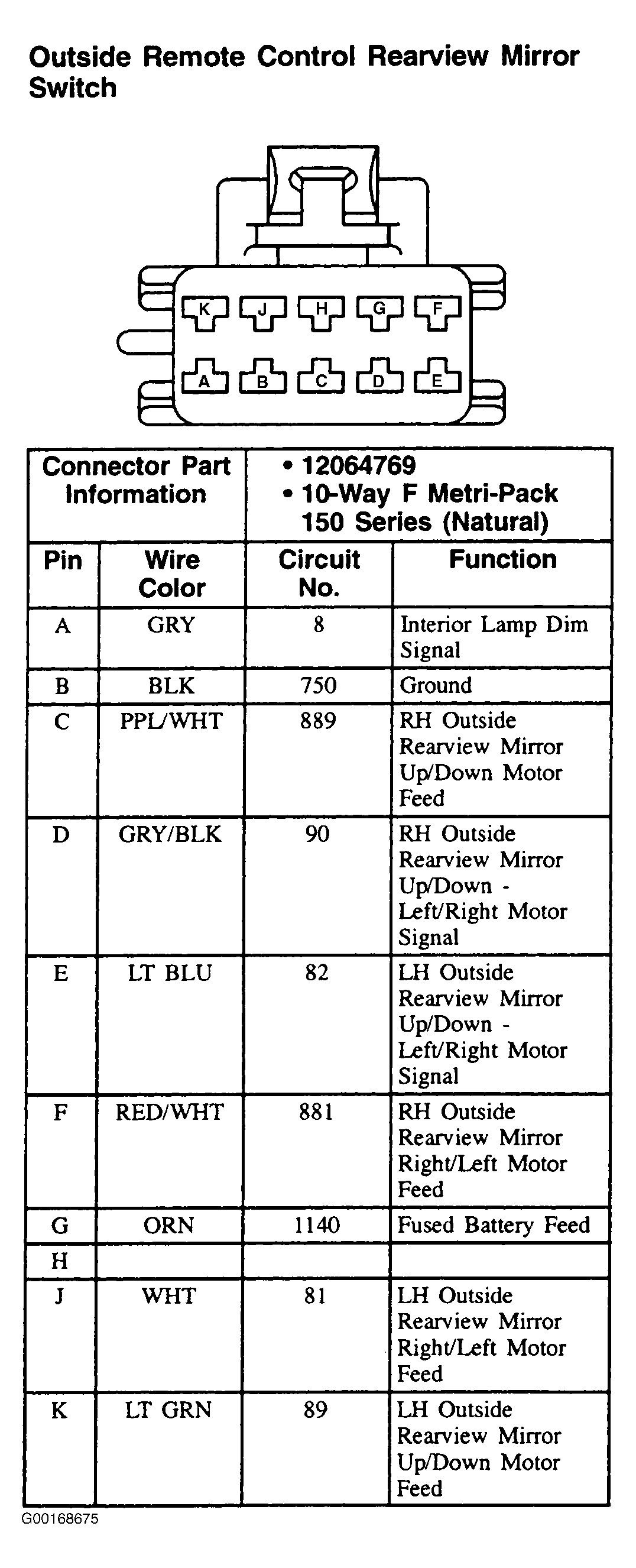

Fig 1: Outside Remote Control Rearview Mirror Switch (Century & Regal) - 10-Pin Connector (Natural)

G00168675

Courtesy of GENERAL MOTORS CORP.
