Home
>>
Buick
>>
1997
>>
Regal GS
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Connector Terminal Identification
>>
Rear Compartment
>>
Century, Grand PRIX & Regal
Century, Grand PRIX & Regal

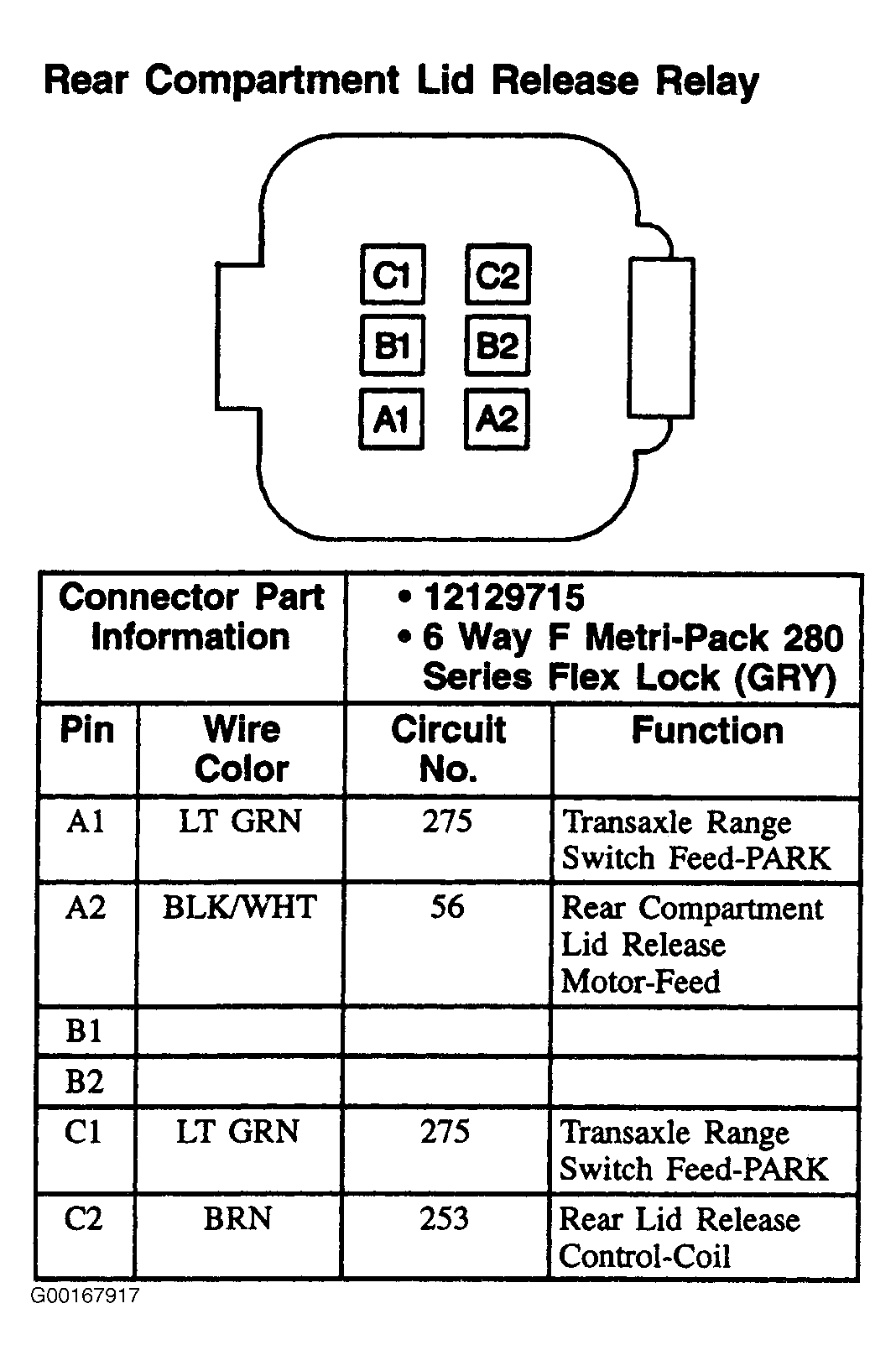

Fig 1: Rear Compartment Lid Release Relay (Century, Grand Prix & Regal) - 6-Pin Connector (Gray)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
