Passenger Seat Heater Control Module

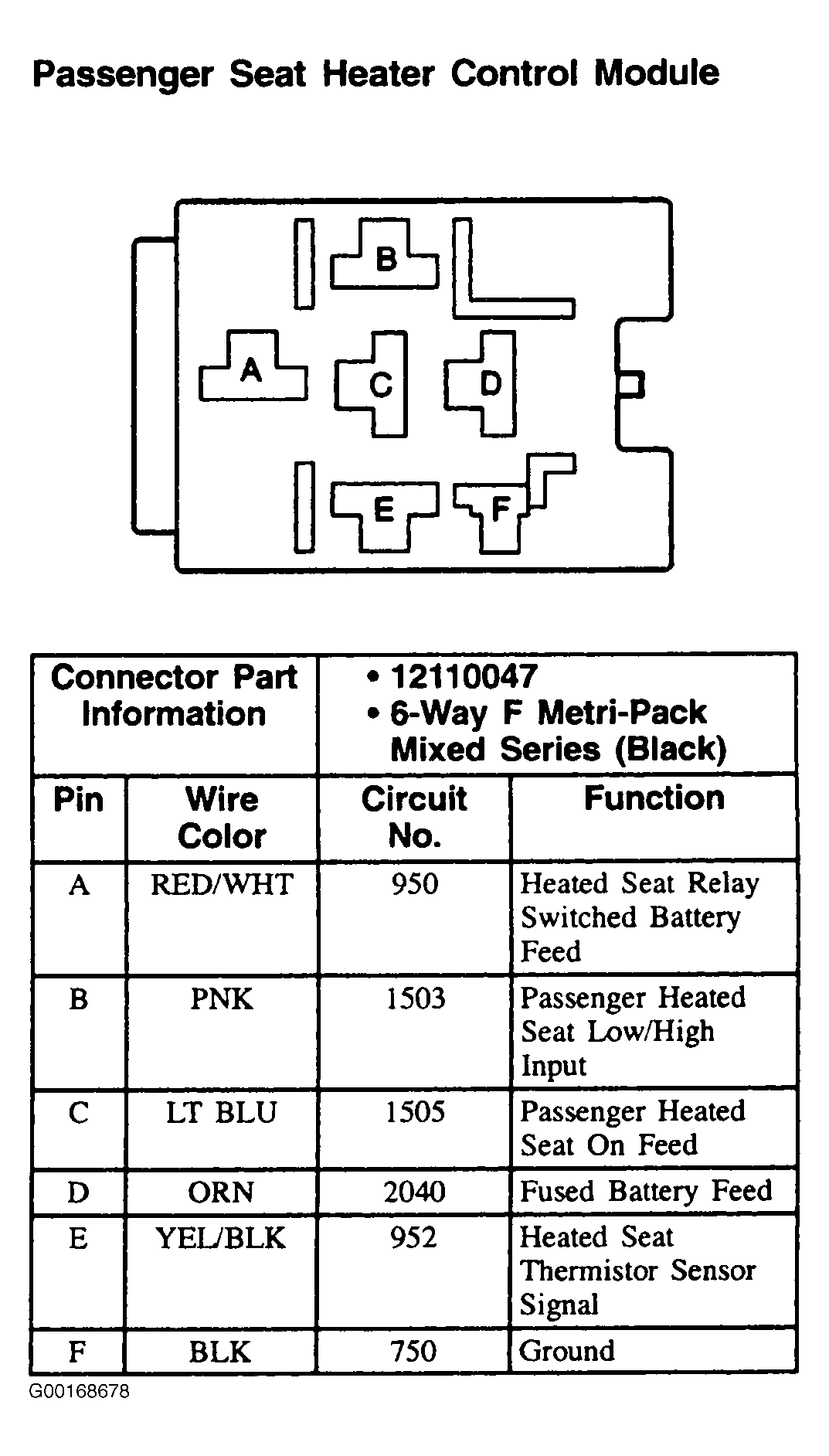

Fig 1: Passenger Seat Heater Control Module (Century & Regal) - 6-Pin Connector (Black)

G00168678

Courtesy of GENERAL MOTORS CORP.
