Connector Terminal Identification
>>
Headlamp
>>
Century & Regal
Century & Regal

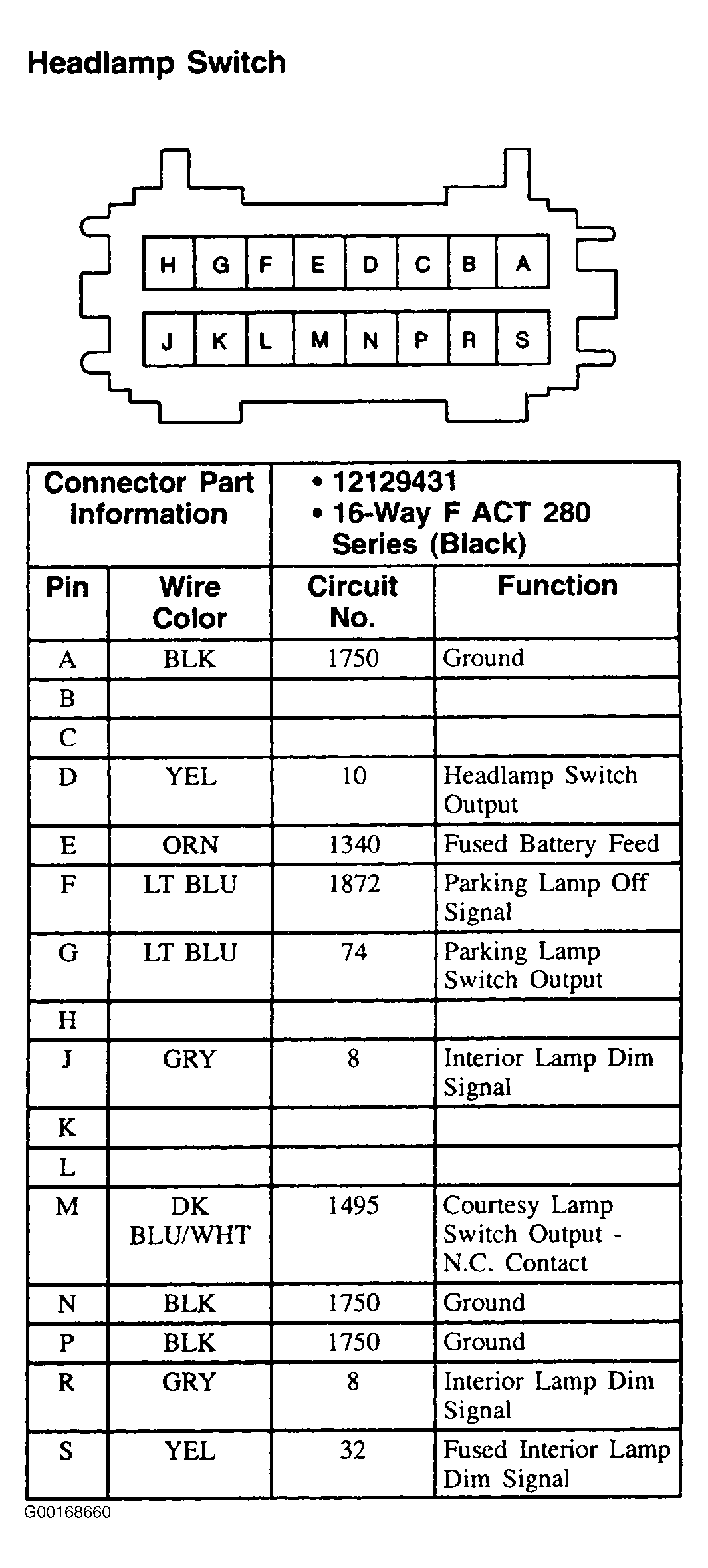

Fig 1: Headlamp Switch (Century & Regal) - 16-Pin Connector (Black)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
