Grand Prix

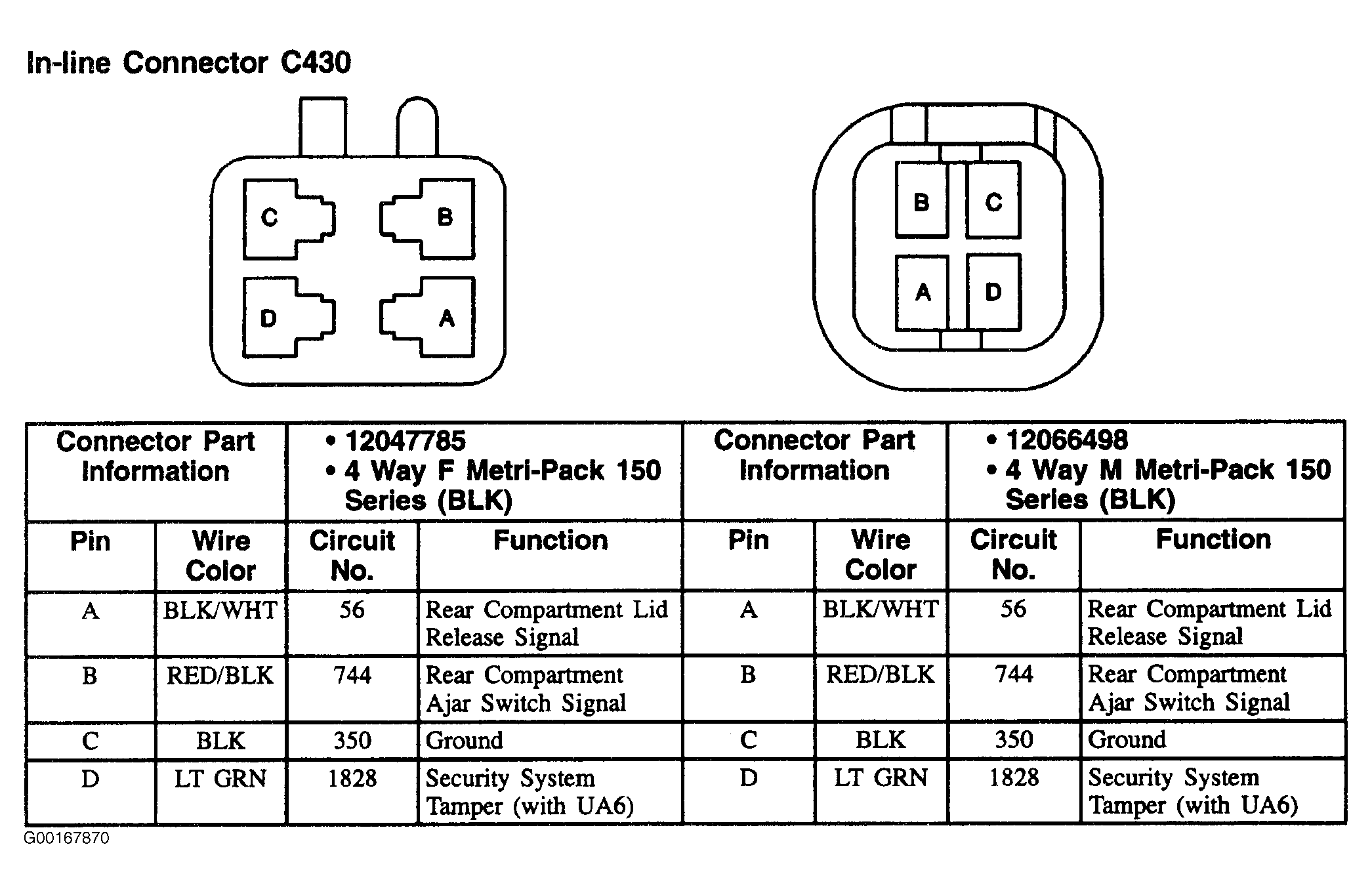

Fig 1: C430 (Grand Prix) - 4-Pin Connector (Black/Black)

G00167870

Courtesy of GENERAL MOTORS CORP.
