Century & Regal

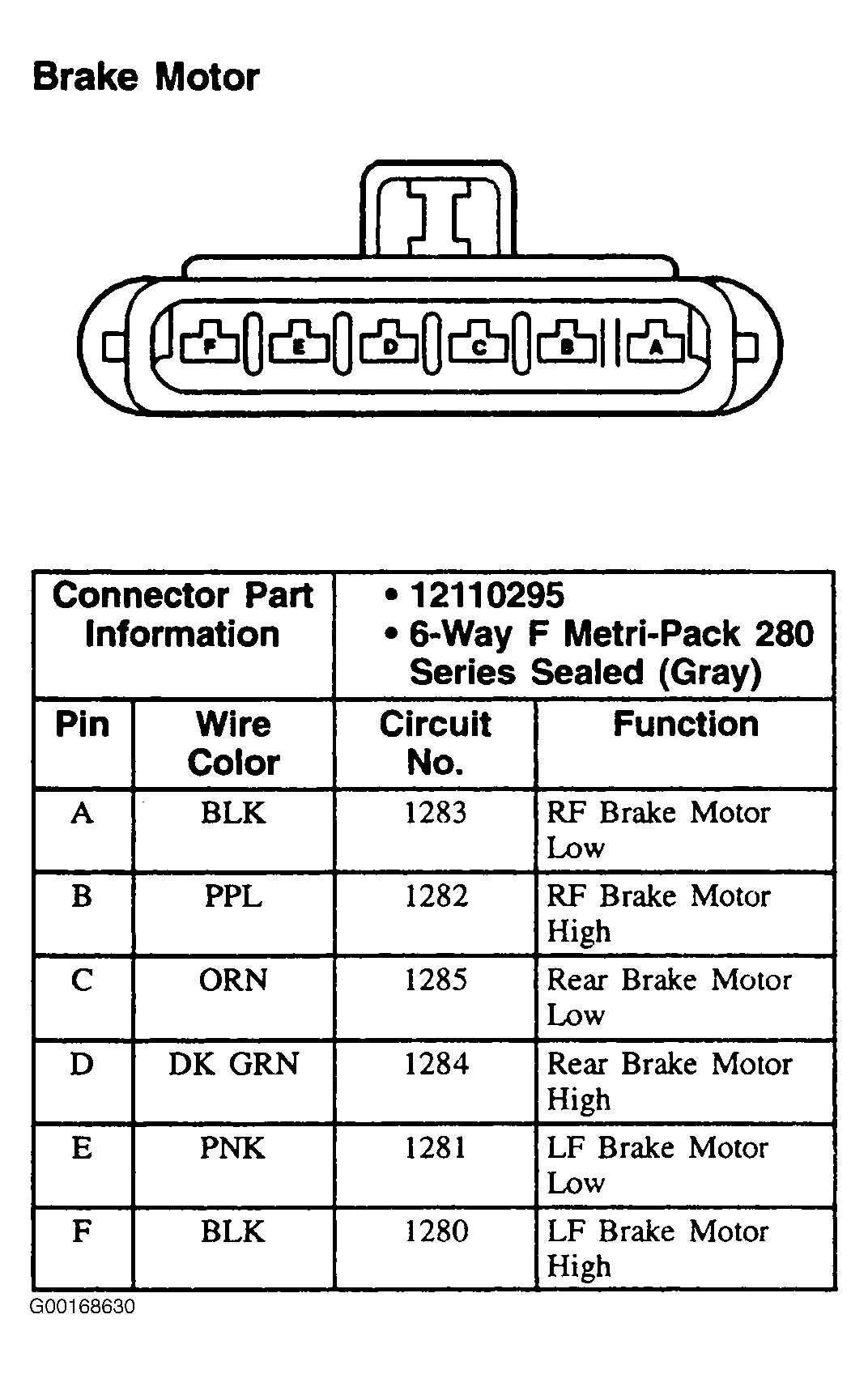

Fig 1: Brake Motor (Century & Regal) - 6-Pin Connector (Gray)

G00168630

Courtesy of GENERAL MOTORS CORP.
