Auxiliary Spring: Installation

To install, reverse removal procedure. Apply Thread Locker (GM 1052624) to rear lateral link-to-knuckle bolt. Tighten fasteners to specification. See TORQUE SPECIFICATIONS  table.

Fig 1: Locating Auxiliary Spring Assembly

Courtesy of GENERAL MOTORS CORP.

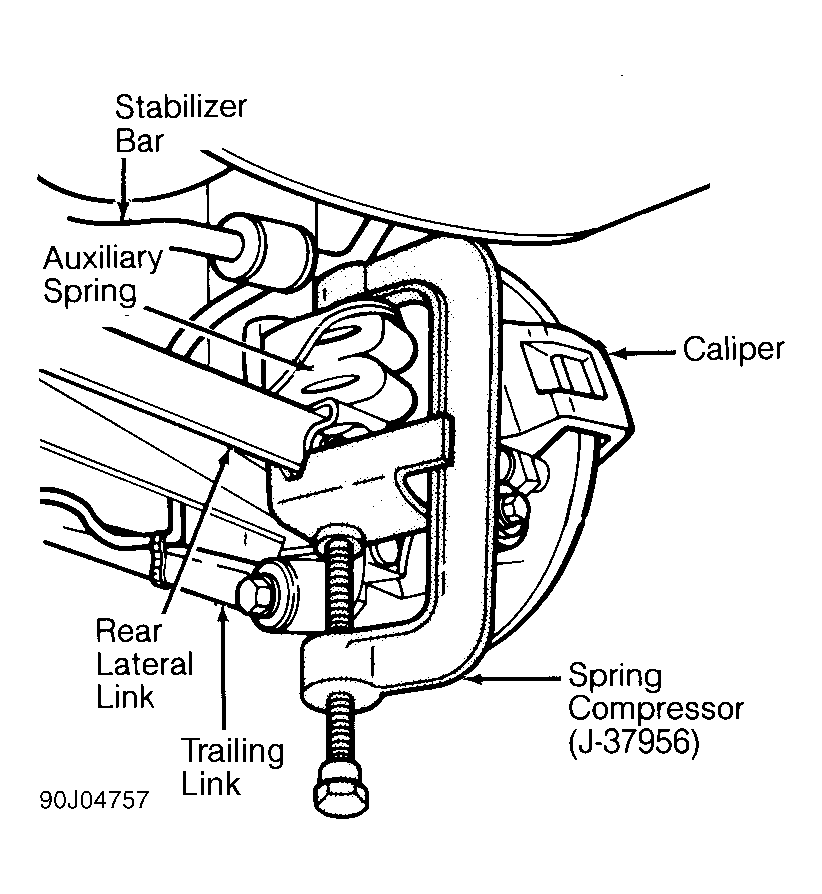

Fig 2: Mounting Auxiliary Spring Compressor (J-37956)

Courtesy of GENERAL MOTORS CORP.
