Left Hand (HVAC System A/C Front, Manual Controls/Manual Temperature Control, Auxiliary Temperature Control)

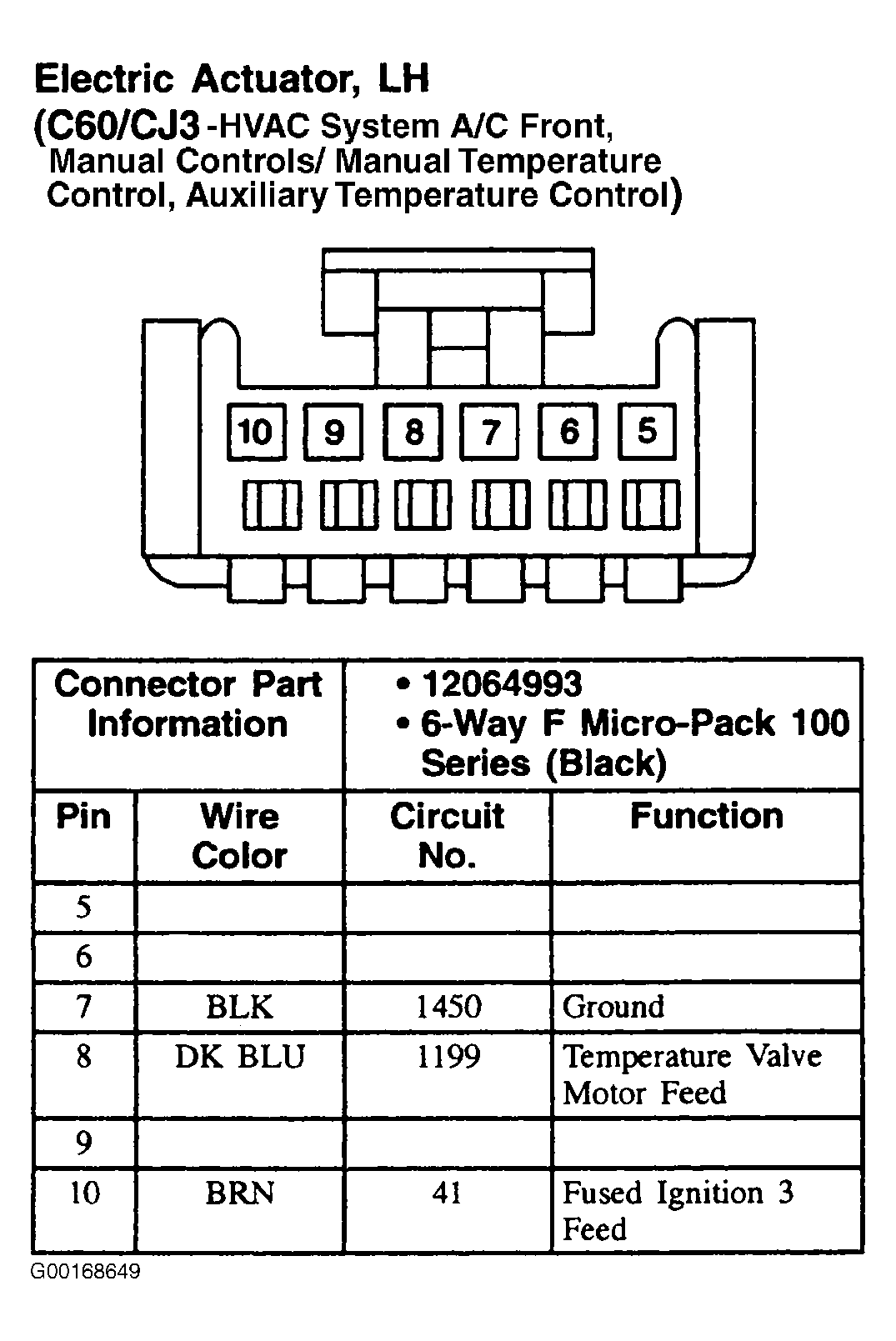

Fig 1: Electric Actuator, Left Hand (C60/CJ3 - HVAC System A/C Front, Manual Controls/Manual Temperature Control, Auxiliary Temperature Control) (Century & Regal) - 6-Pin Connector (Black)
G00168649Courtesy of GENERAL MOTORS CORP.
