Connector Terminal Identification
>>
Daytime Running Lamp
>>
Century & Regal
>>
Daytime Running Lamp Control Module C2
Daytime Running Lamp Control Module C2

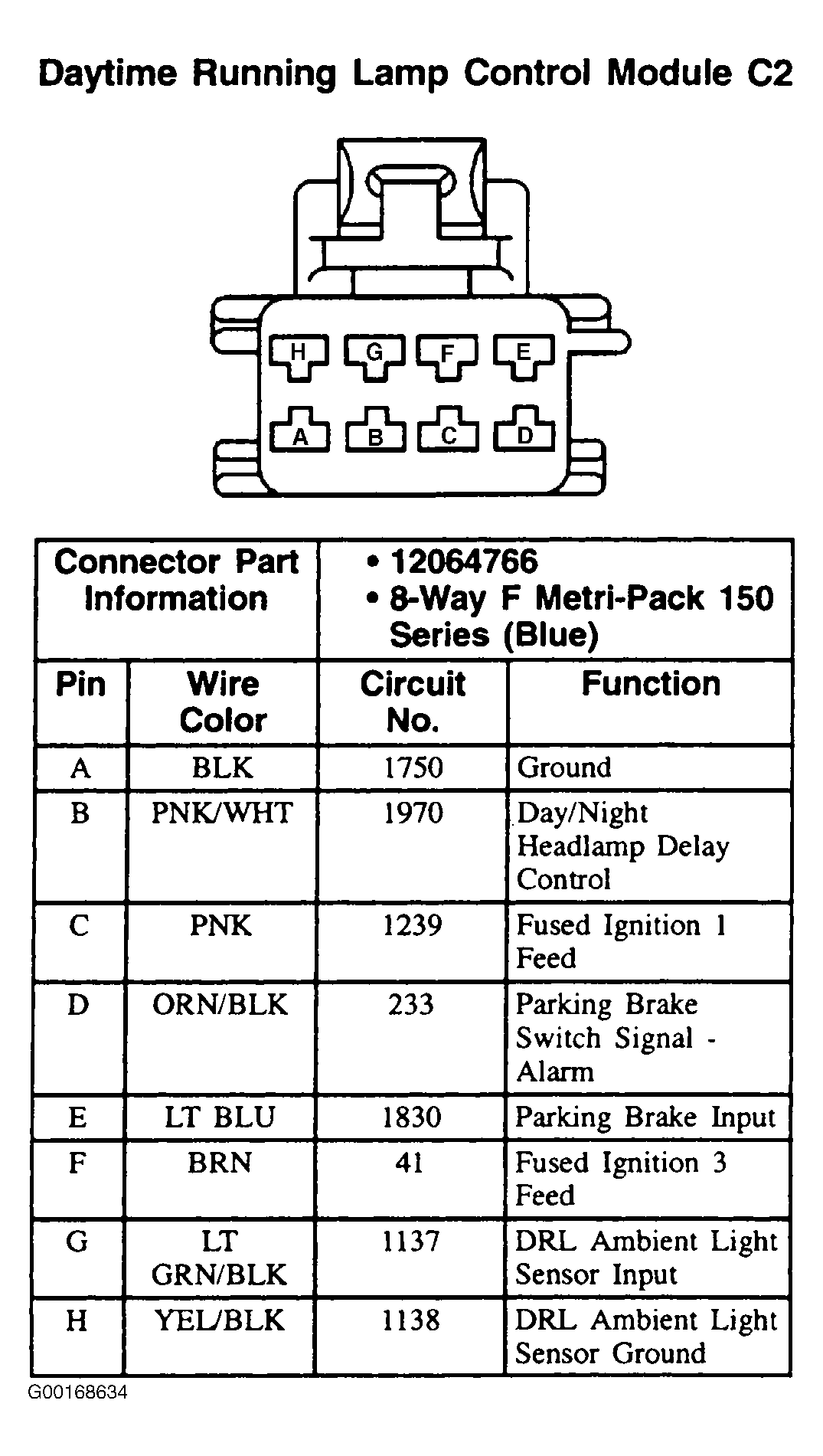

Fig 1: Daytime Running Lamp Control Module C2 (Century & Regal) - 8-Pin Connector (Blue)
Courtesy of GENERAL MOTORS CORP.
