Connector Terminal Identification
>>
Daytime Running Lamp
>>
Century & Regal
>>
Daytime Running Lamp Control Module C1
Daytime Running Lamp Control Module C1

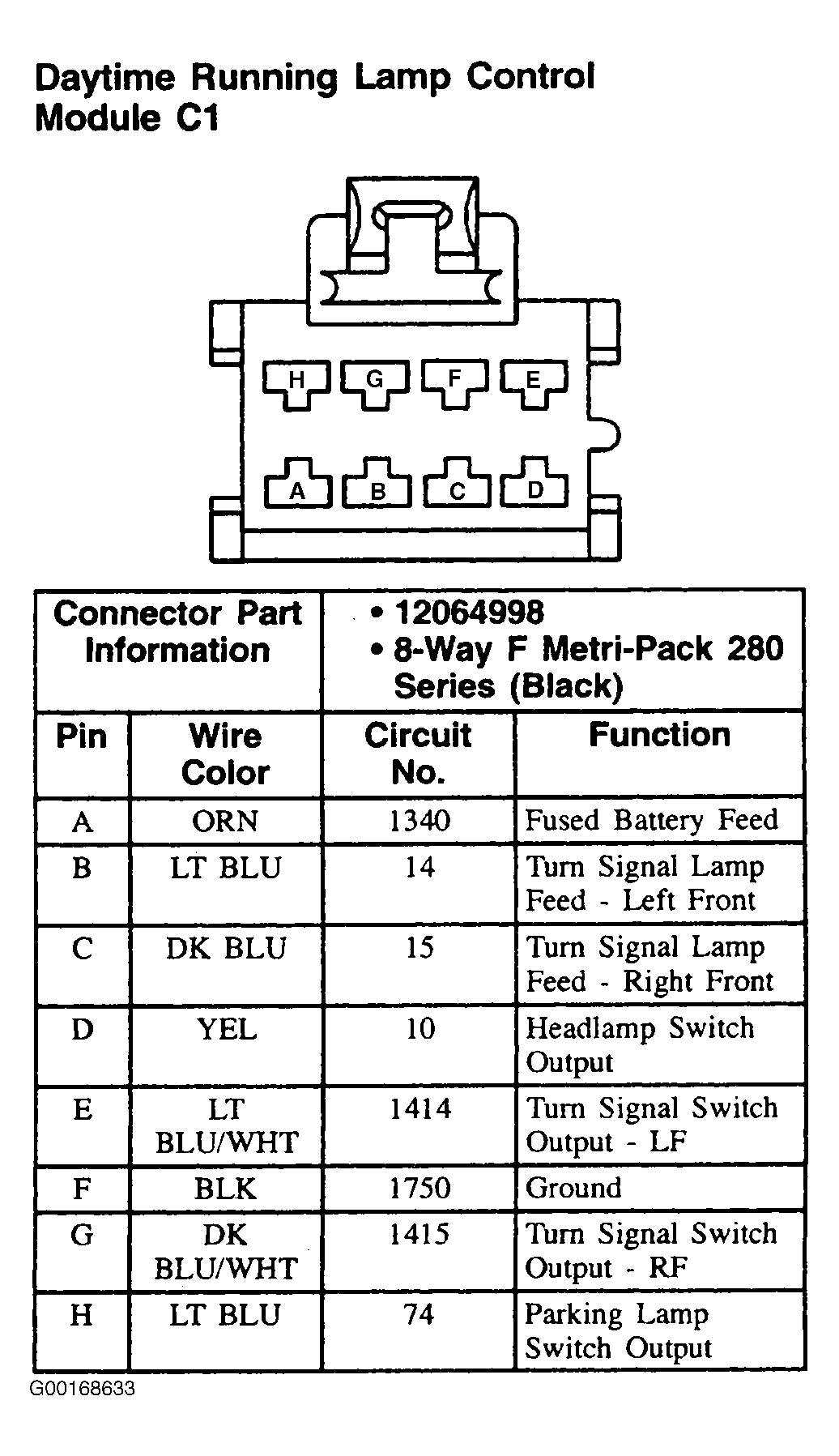

Fig 1: Daytime Running Lamp Control Module C1 (Century & Regal) - 8-Pin Connector (Black)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
