Component Locations
PASS-KEY II (R) SYSTEM COMPONENT LOCATION
| Component | Location | |
|---|---|---|
| Body Control Module (BCM) | Below Left Side Of Instrument Panel, Left Of Steering Column | |
| Data Link Connector (DLC) | Below Instrument panel, Right Of Steering Column | |
| Instrument Panel Fuse Block | ||
| Except Grand Prix | Right Side Of Dash, In Right Front Door Opening | |
| Grand Prix | Right Side Of Instrument Panel, In Panel Compartment Opening | |
| Powertrain Control Module (PCM) | In Engine Bay, Front Of Right Strut Tower | |

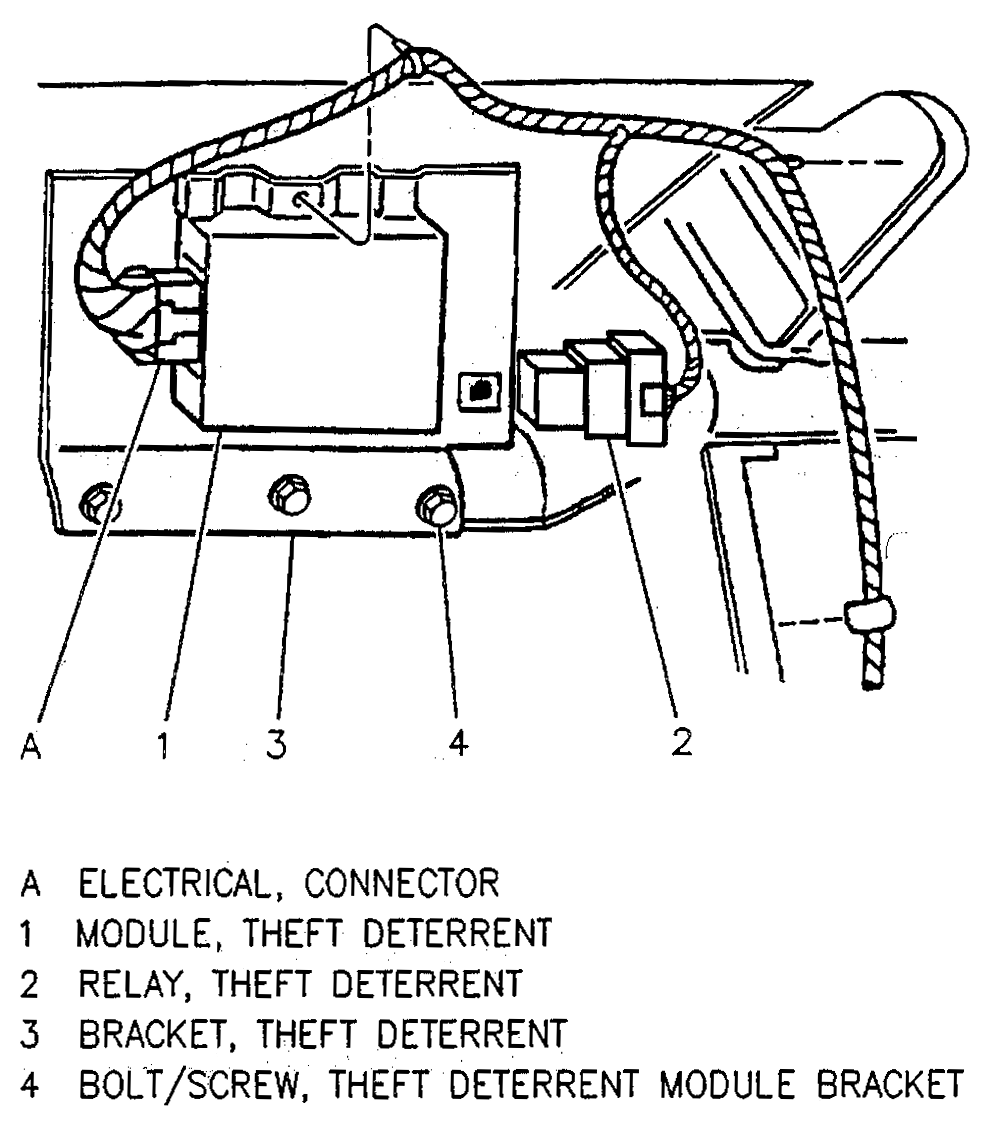

| Theft Deterrent Module | Behind Right Side Of Instrument Panel, Behind Glove Compartment | |
| Theft Deterrent Relay | ||
| Except Grand Prix | Behind Glove Box, Next To Theft Deterrent Module | |
| Grand Prix | Below Left Side Of Instrument Panel, Mounted To Leading Face Of BCM Mounting Bracket | |
| Theft Deterrent Shock Sensor | Behined Left Side Of Instrument Panel, Mounted To Right Side Of Knee Bolster Bracket | |
| Transaxle Range Switch | Left Of Engine, On Transaxle | |
| Underhood Electrical Center | ||
| Exc. Grand Prix | Left Side Of Engine Bay, Forward Of Strut Tower | |
| Grand Prix | Right Hand Side Of Engine Bay, Mounted To Strut Tower | |
