UNDERHOOD Fuse Block
UNDERHOOD Fuse Block
NOTE:
Underhood fuse block is located in passenger side rear corner of engine compartment.

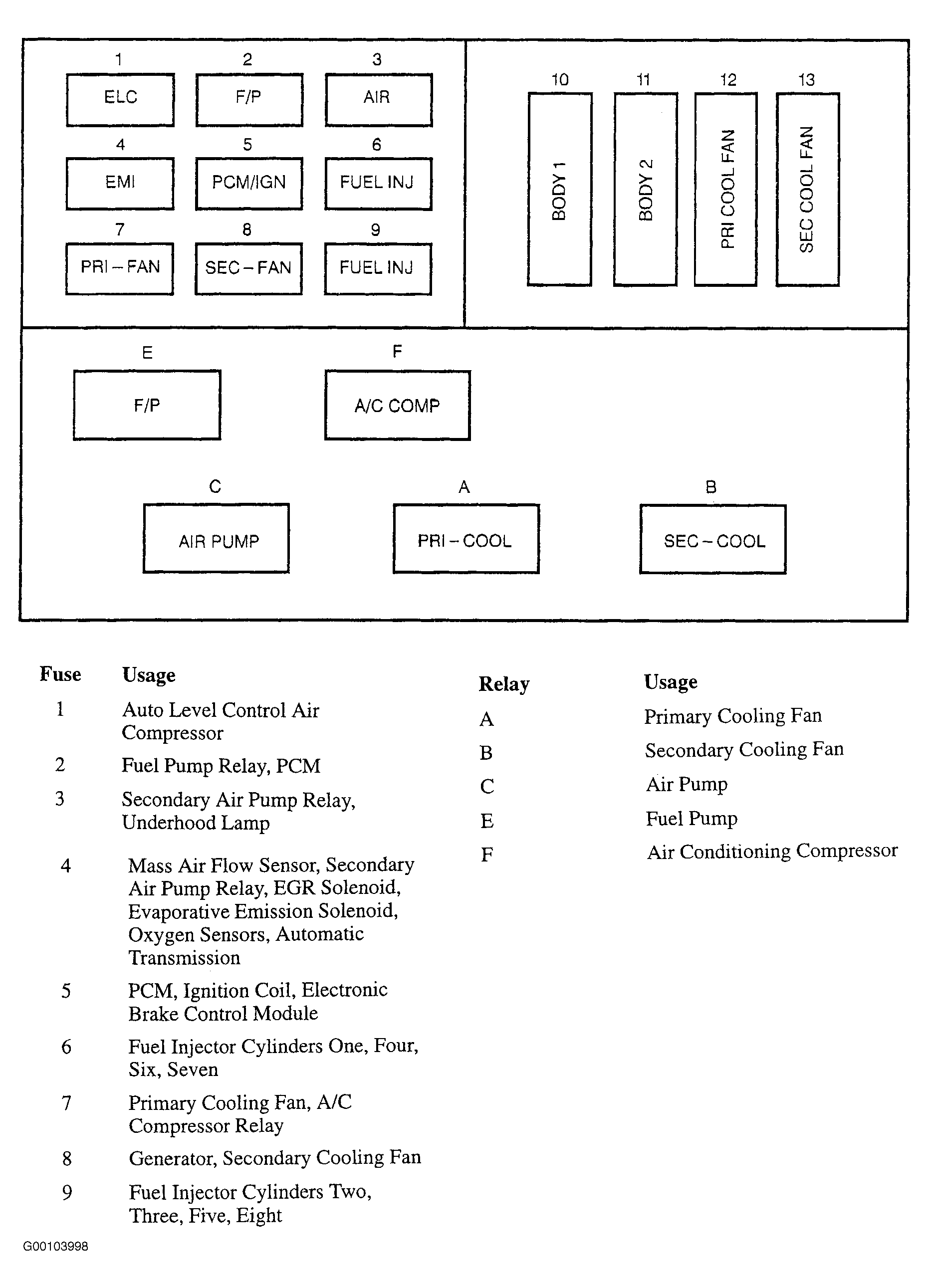

Fig 1: Identifying Underhood Fuse Block Components
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
