Roadmaster Base
>>
Repair and Diagnosis
>>
Electrical
>>
Fuses & Circuit Breakers
>>
Identification
>>
Instrument Panel Fuse Block
Instrument Panel Fuse Block
NOTE:
Instrument panel fuse block is located on the driver's side of the instrument panel.

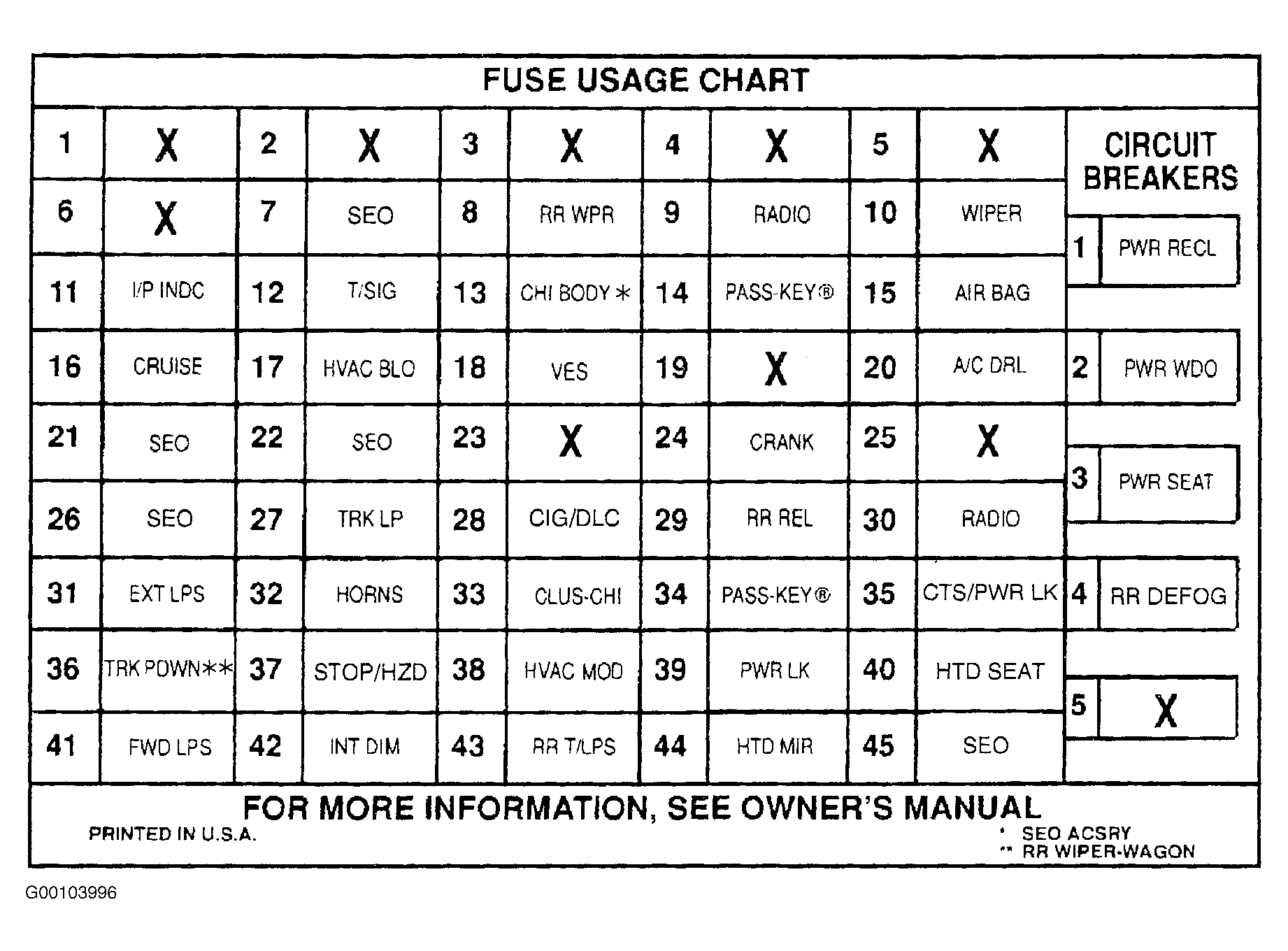

Fig 1: Identifying Instrument Panel Fuse Block Components
Courtesy of GENERAL MOTORS CORP.

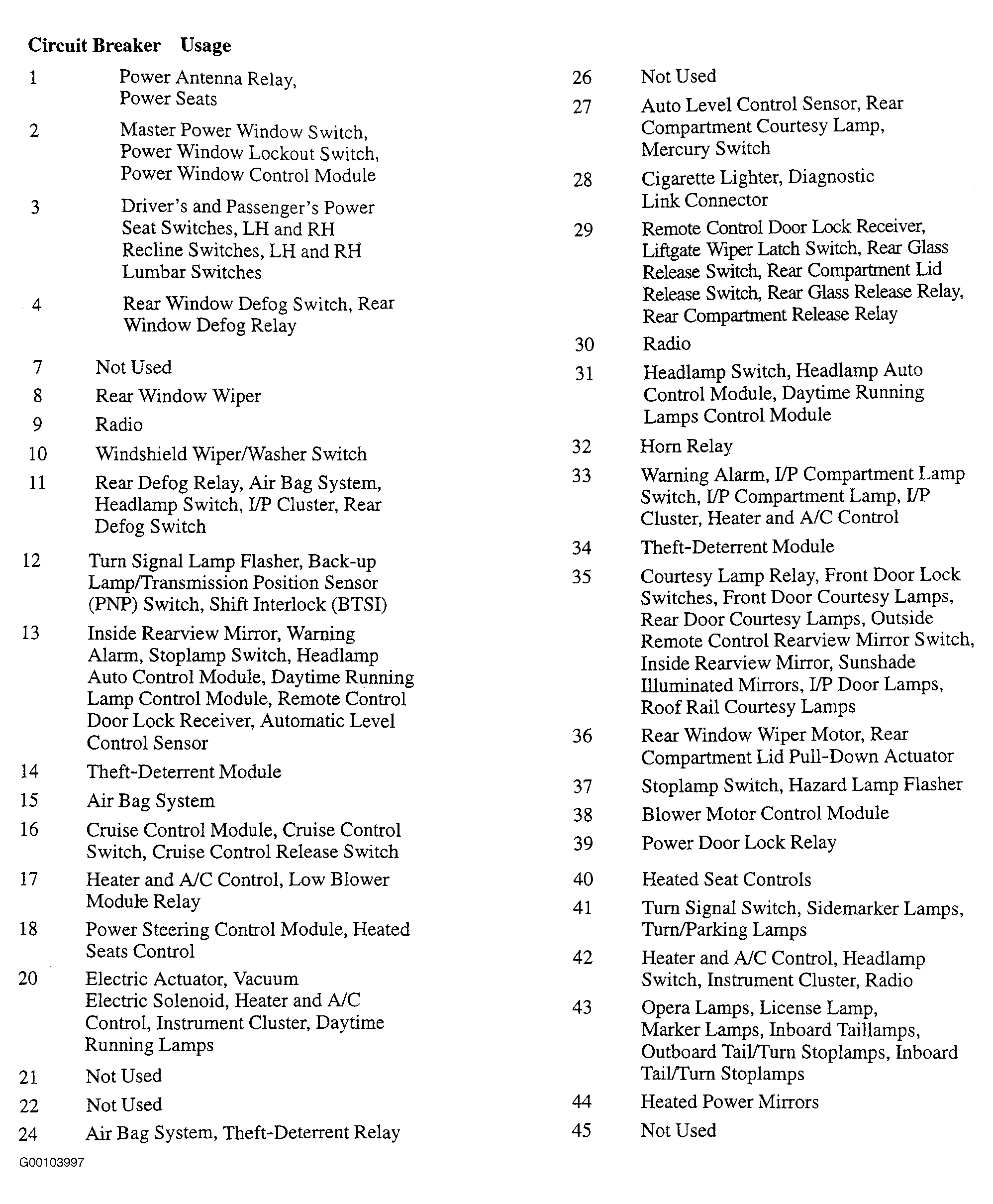

Fig 2: Instrument Panel Fuse Block Legend
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
