Connector Identification
Connector Identification
NOTE:
To identify SIR wiring connector terminals, see
Fig 1
.

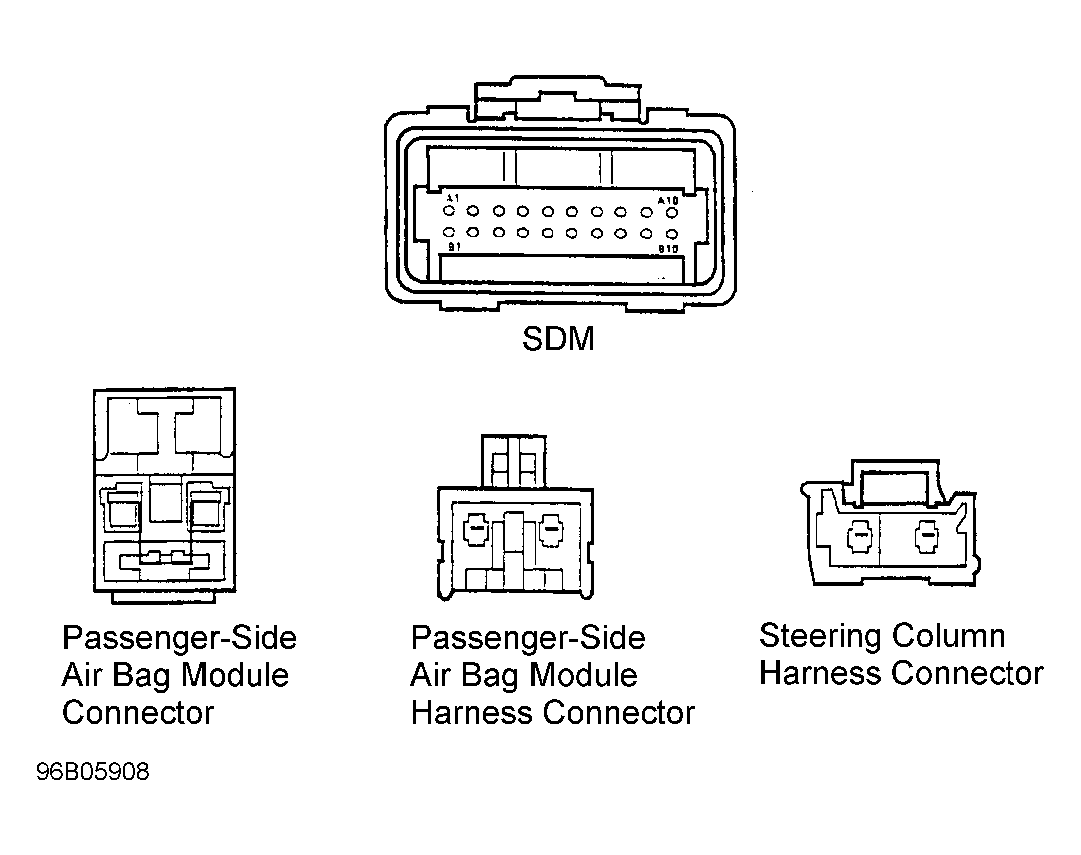

Fig 1: Identifying SIR Wiring Connector Terminals
Courtesy of GENERAL MOTORS CORP.
