Instrument Panel - Analog: Testing: Notes

WARNING: When battery is disconnected, vehicle computer and memory systems may lose memory data. Driveability problems may exist until computer systems have completed a relearn cycle. See COMPUTER RELEARN PROCEDURES article in GENERAL INFORMATION before disconnecting battery.

NOTE: Use illustrations for instrument panel cluster connector and terminal identification. See Fig 1 -4.

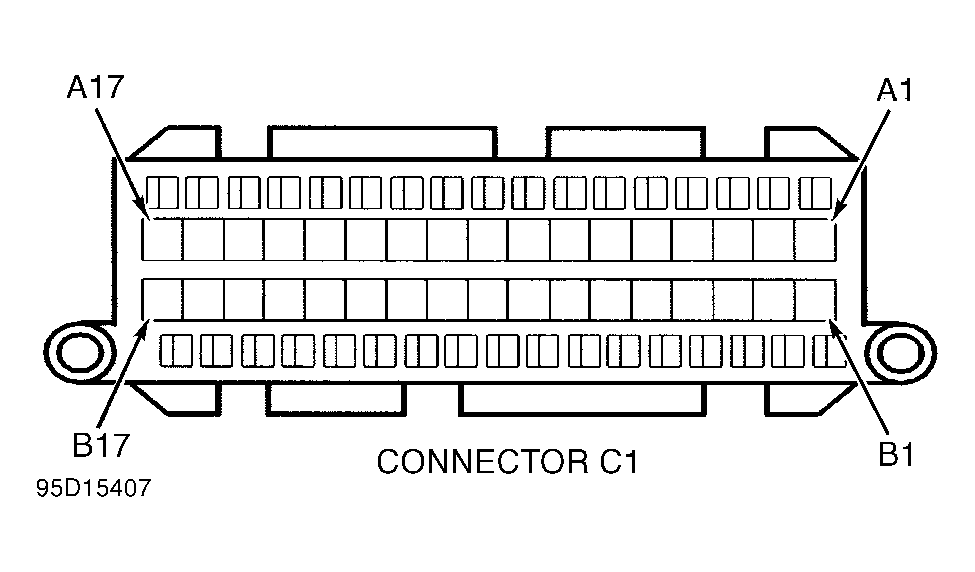

Fig 1: Instrument Panel Cluster Connector Terminal ID (Bonneville)

Courtesy of GENERAL MOTORS CORP.

Fig 2: Instrument Panel Cluster Connector Terminal ID (Bonneville, LeSabre)

Courtesy of GENERAL MOTORS CORP.

Fig 3: Instrument Panel Cluster Connector Terminal ID (Eighty Eight)

Courtesy of GENERAL MOTORS CORP.

Fig 4: Instrument Panel Cluster Connector Terminal ID (Eighty Eight)

Courtesy of GENERAL MOTORS CORP.
