Diagnostic Aids

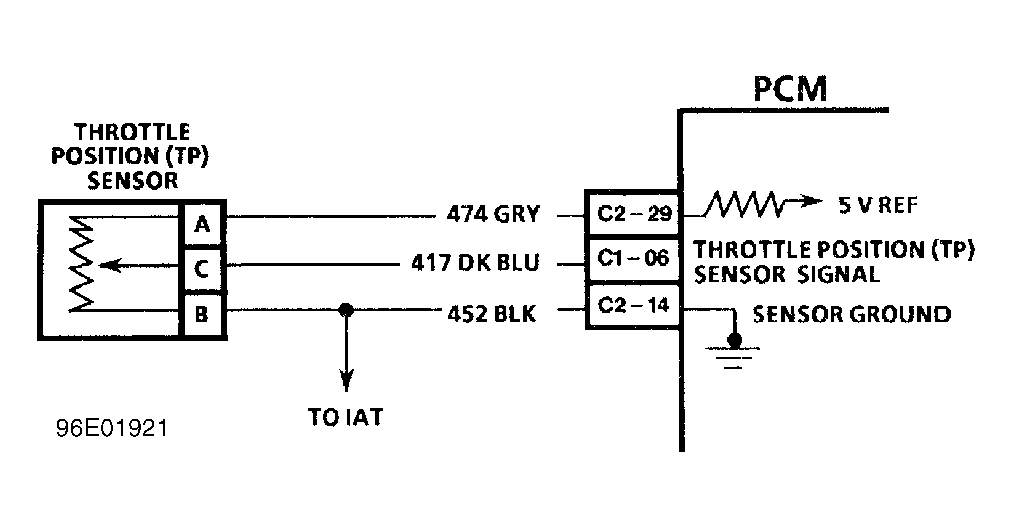

An intermittent problem can be caused by misrouted harness, rubbed-through wire insulation or broken wire inside insulation. If other DTC(s) are set for components that share the same ground and/or 5-volt reference circuit, check for faulty connections or wiring. PCM 5-volt reference circuits are internally connected within PCM. Also, using FREEZE FRAME data may aid in determining conditions present when DTC was set.
