Diagnostic Aids

Turn ignition on, with engine off. MAP sensor voltage signal should be 4.5-4.8 volts. Compare this reading with a known-good vehicle with same style MAP sensor. Voltage readings should be within .4 volt of each other.

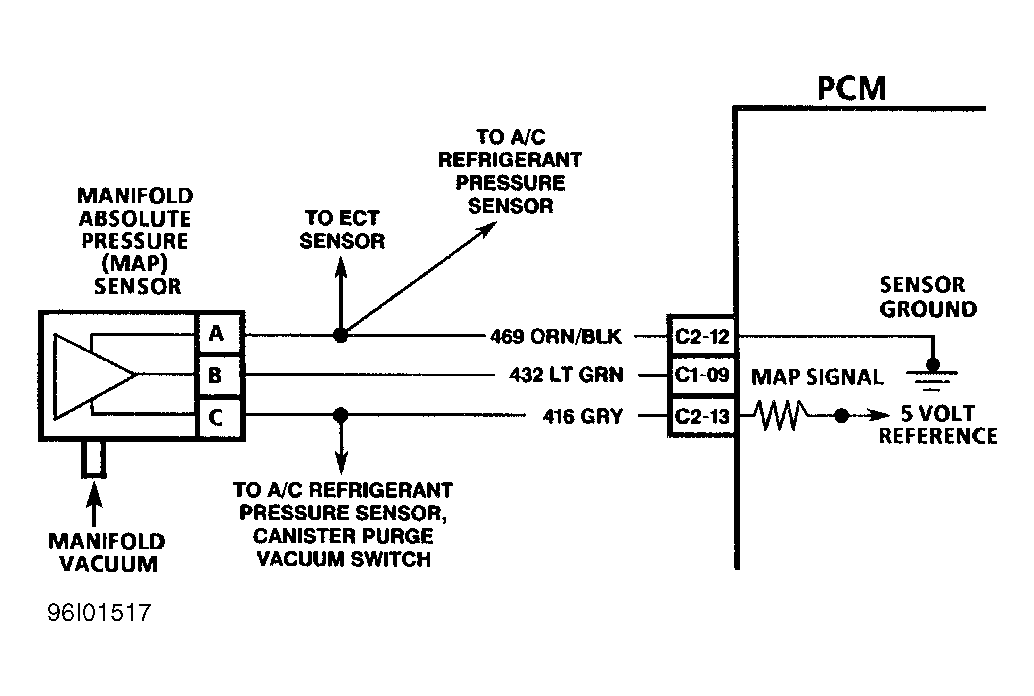

Fig 1: DTC P0106 Schematic
G96I01517
