Fuel Rail & Injectors: Installation

To install, reverse removal procedure. Coat NEW injector "O" rings with clean engine oil. Position injectors into intake manifold and injector retainer over injectors. Tighten injector retainer screws. See TORQUE SPECIFICATIONS . To complete installation, reverse removal procedure.

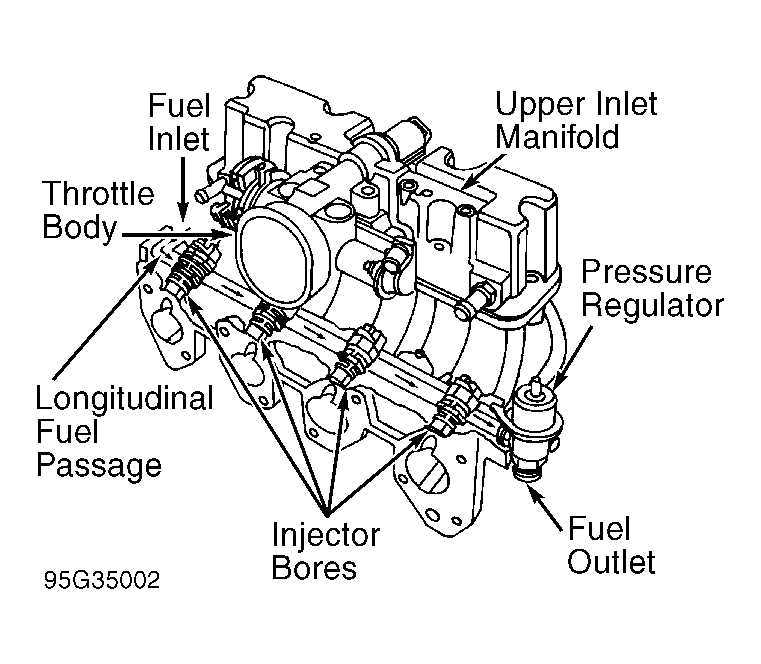

Fig 1: Locating Fuel Rail Assembly Components - (VIN 4)
G95G35002Courtesy of GENERAL MOTORS CORP.
