Diagnostic Aids

Check related harness connectors, including PCM harness. Check for damaged or pushed out terminals.

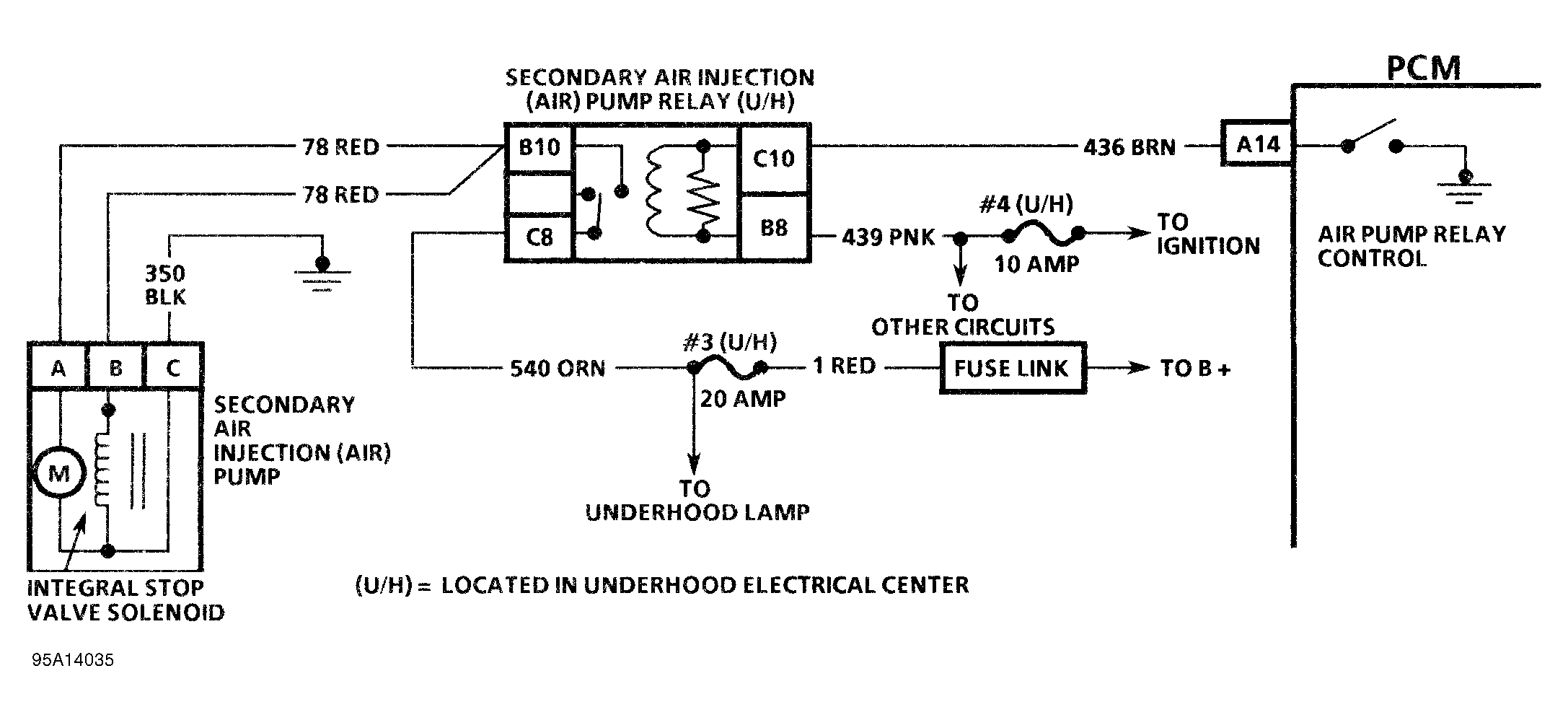

Fig 1: Code 29 Schematic (5.7L) Secondary Air Injection

G95A14035
