Riviera 3.8 1
>>
Repair and Diagnosis
>>
Maintenance
>>
Procedures
>>
Maintenance Information
>>
Service Point Locations
Service Point Locations

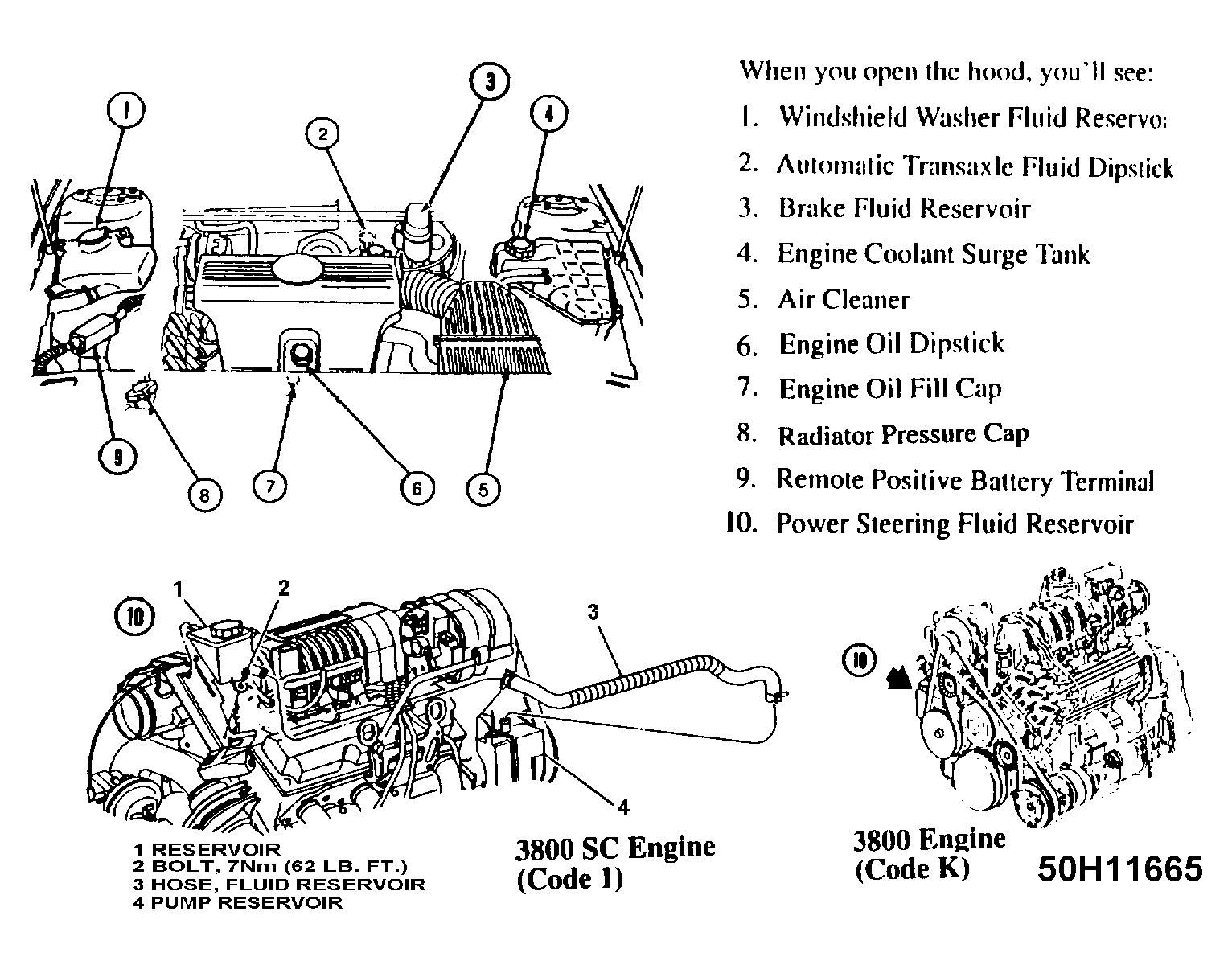

Fig 1: Service Point Locations (3.8L Shown)
Courtesy of GENERAL MOTORS CORP.

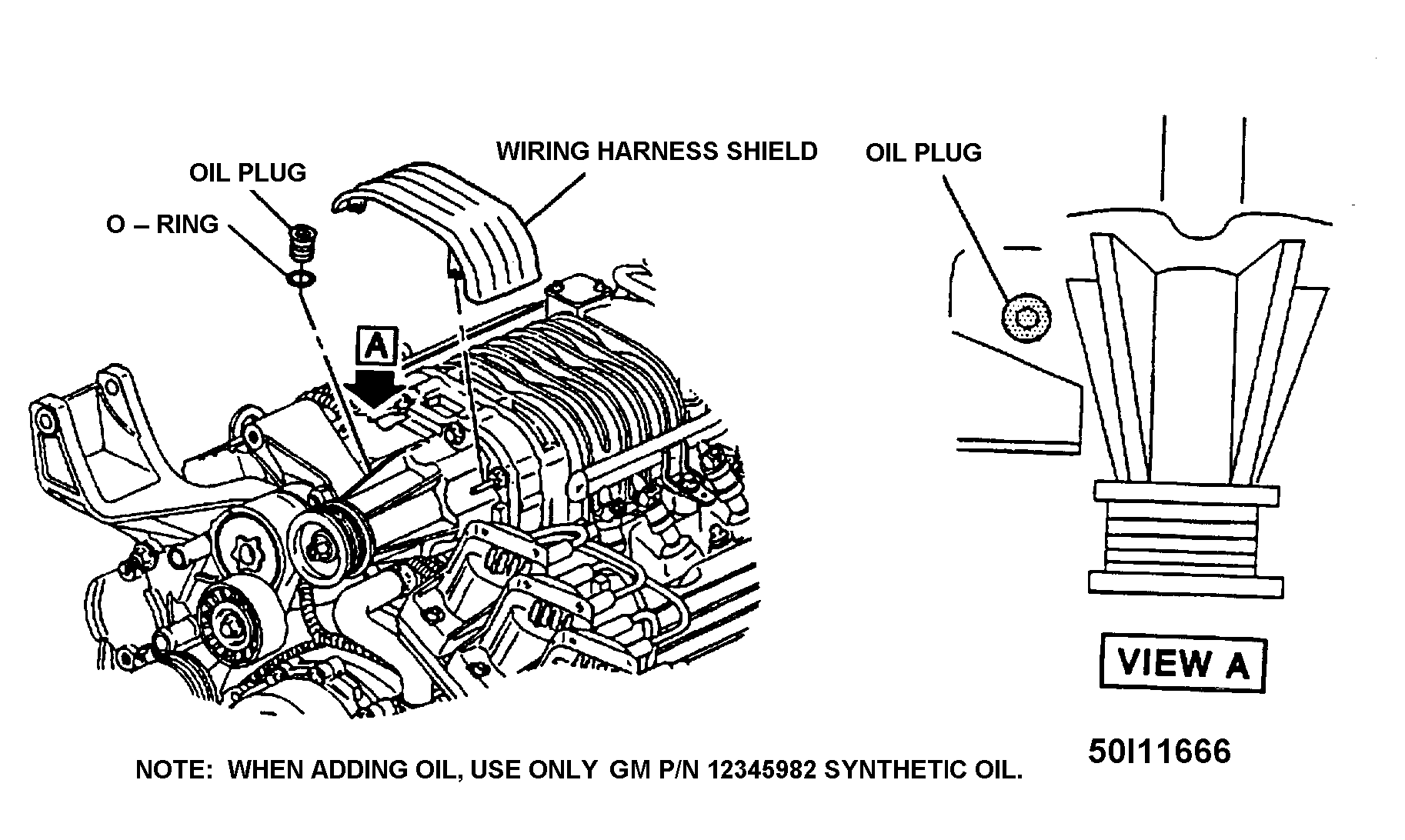

Fig 2: Supercharger Oil Plug Location
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
