Test Description

Fig 1: Code P1561 Schematic (3.8L) Cruise Vent Solenoid

G95A13870

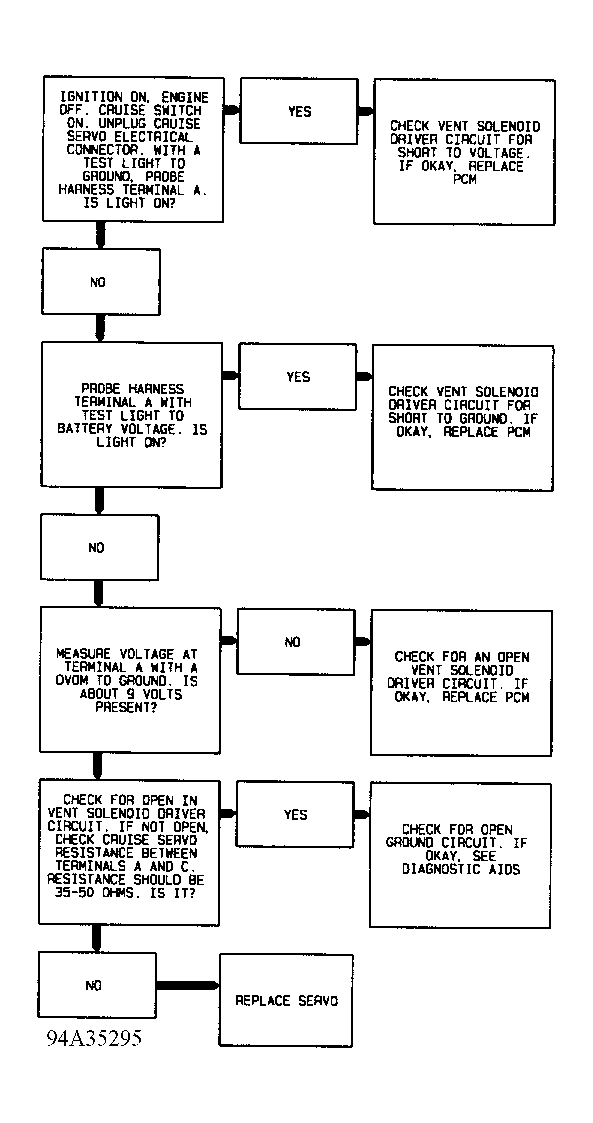

Fig 2: Code P1561 Diagnostic Flow Chart (3.8L) Cruise Vent Solenoid

G94A35295
