Test Description
NOTE:

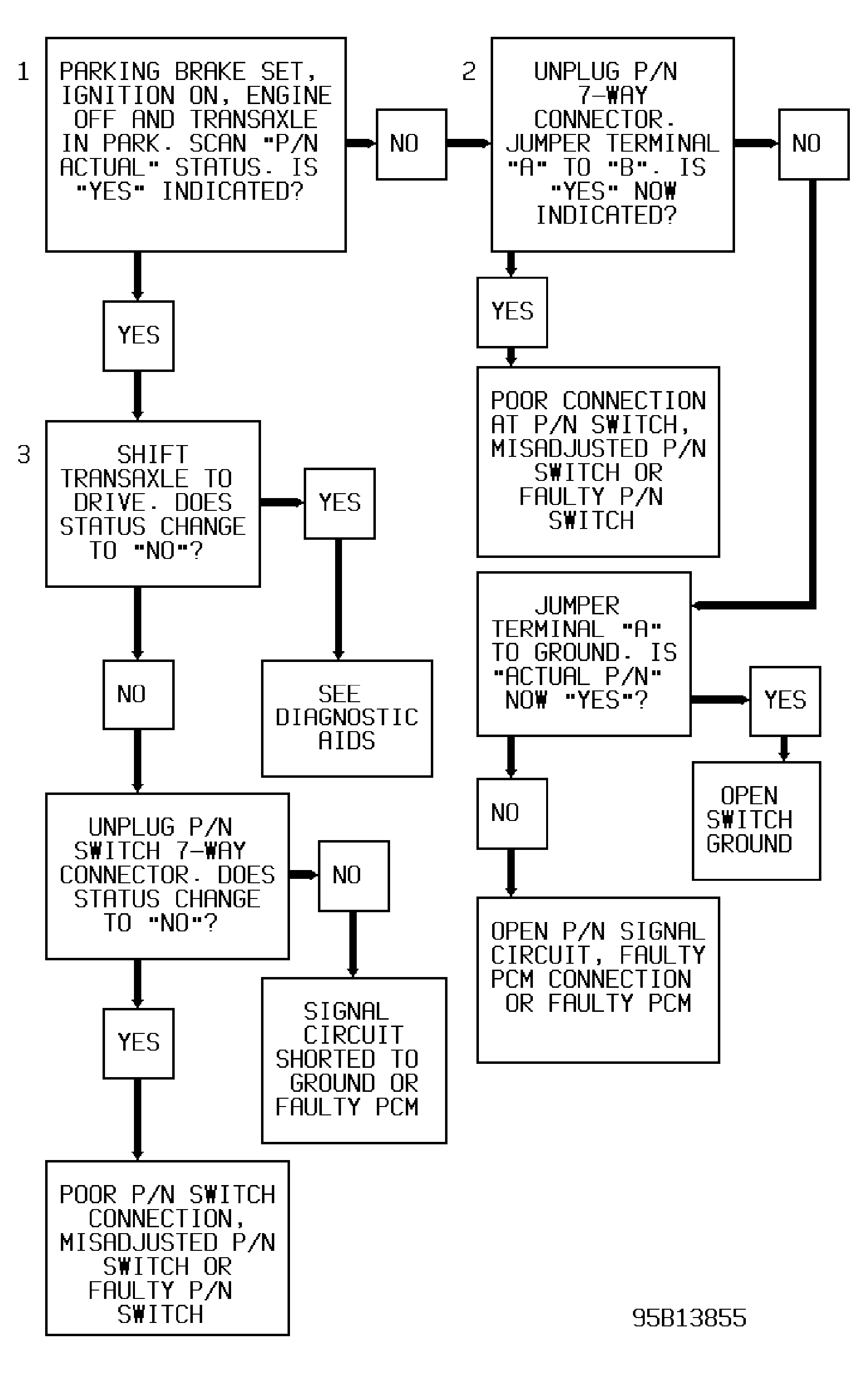

Test numbers refer to numbers on diagnostic chart.
- Checks for closed switch in Park.
- Checks for on open switch in Drive.
- Ensure scan tester does not indicate P/N "actual" as yes even when wiggling shifter. This tests for an intermittent or misadjusted switch.
