Test Description

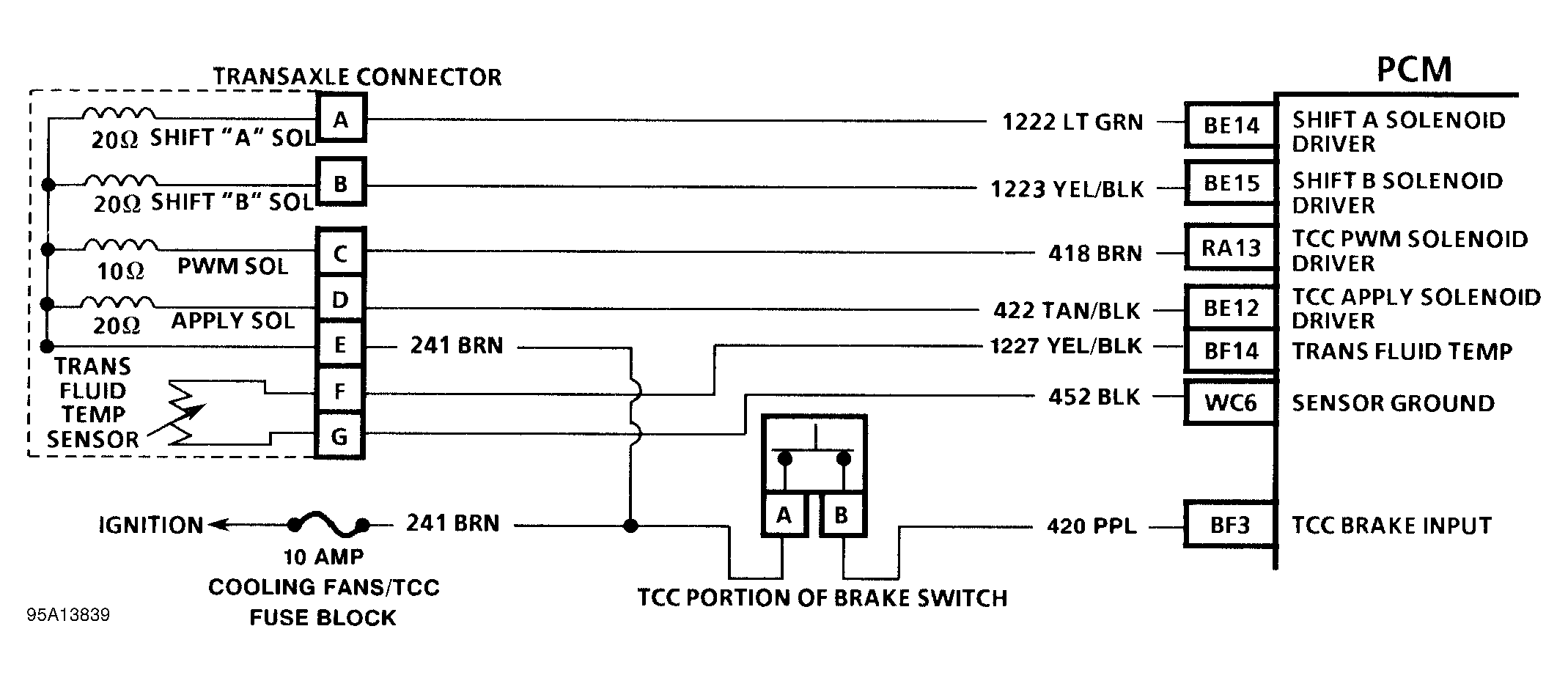

Fig 1: Code P0703 Schematic (3.8L) TCC Brake Switch Input

G95A13839

Fig 2: Code P0703 Diagnostic Flow Chart (3.8L) TCC Brake Switch Input

G94F35209
