Test Description
NOTE:
Test numbers refer to numbers on diagnostic chart.
- Checks to see if PCM recognizes a problem.

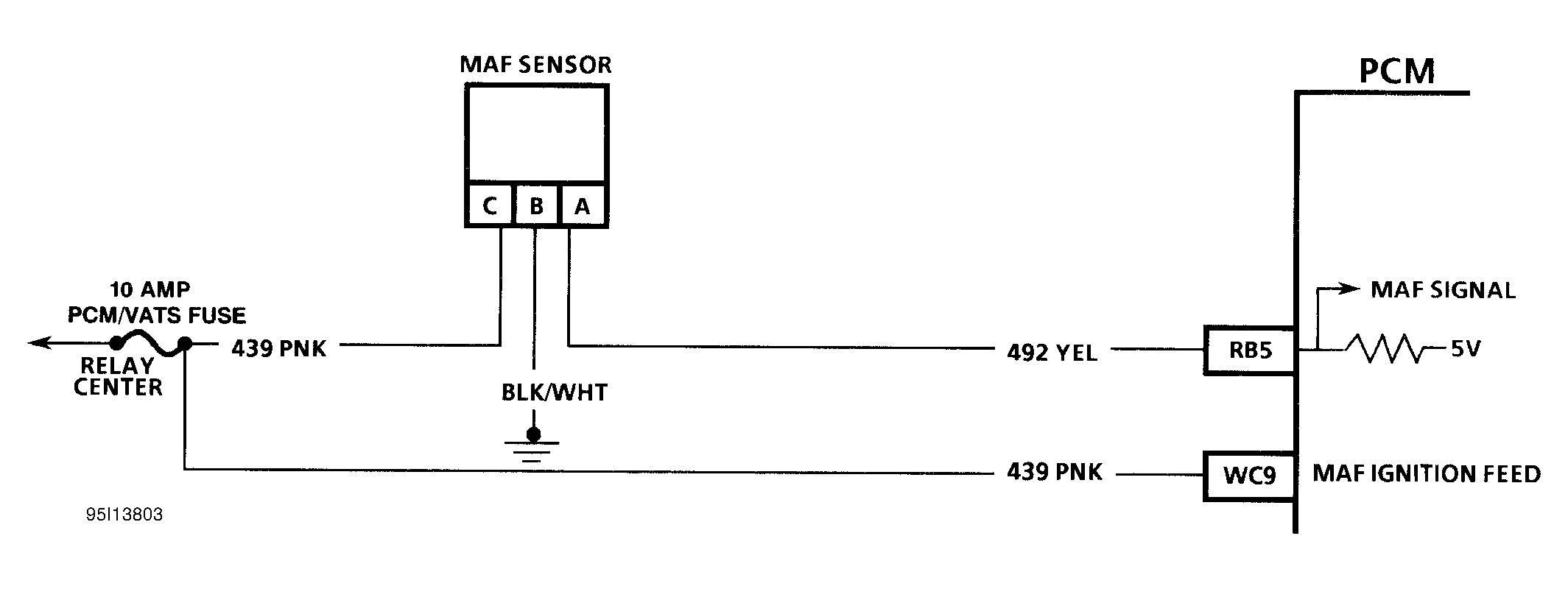

- Voltage reading at sensor harness terminal "A" of less than 4 volts or greater than 6 volts indicates a fault in Mass Airflow (MAF) sensor circuit, or poor connection.
- Verifies both ignition feed voltage and a good ground circuit are available.
