Home >> Buick >> 1995 >> LeSabre Custom >> Repair and Diagnosis >> Accessories & Equipment >> Communication Devices >> Retained Accessory Power System >> System Tests >> Test A: Remote Accessory Control (RAC) Module Power & Ground Test

Test A: Remote Accessory Control (RAC) Module Power & Ground Test

For test procedures, see Fig 1 .

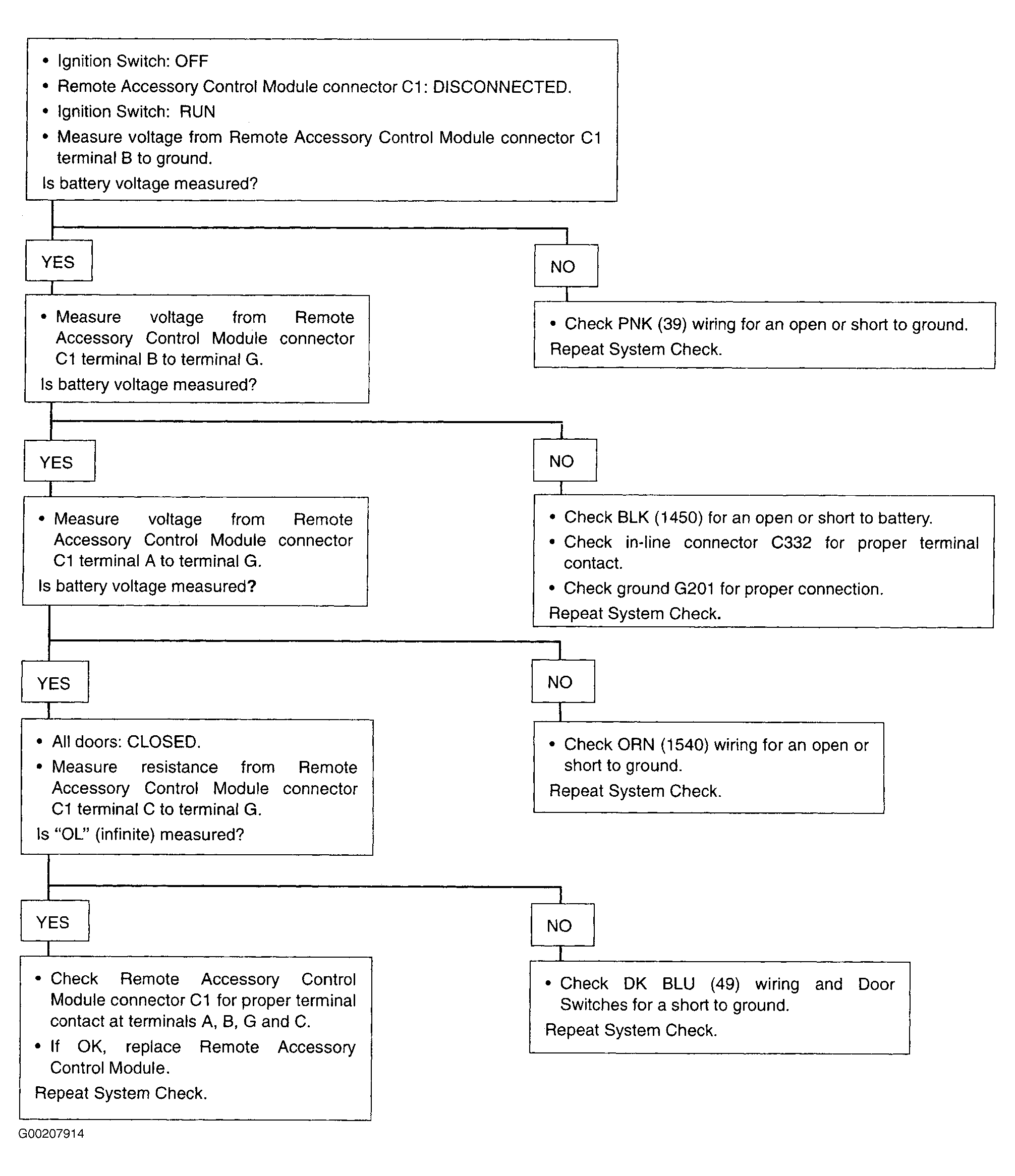

Fig 1: Test A: Remote Accessory Control (RAC) Module Power & Ground Test
G00207914Courtesy of GENERAL MOTORS CORP.
