Connector Identification

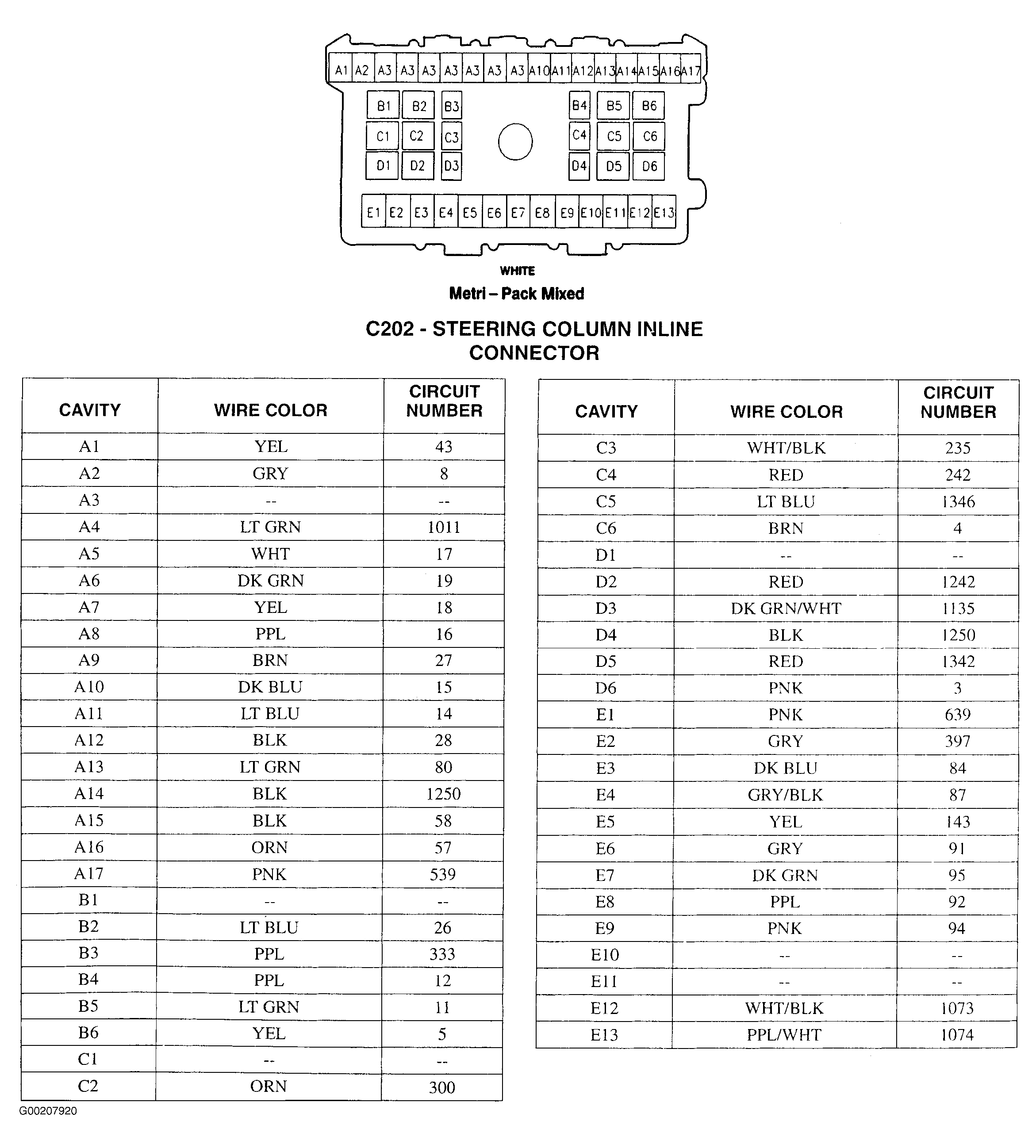

Fig 1: Identifying C202 - Steering Column Inline Connector

Courtesy of GENERAL MOTORS CORP.

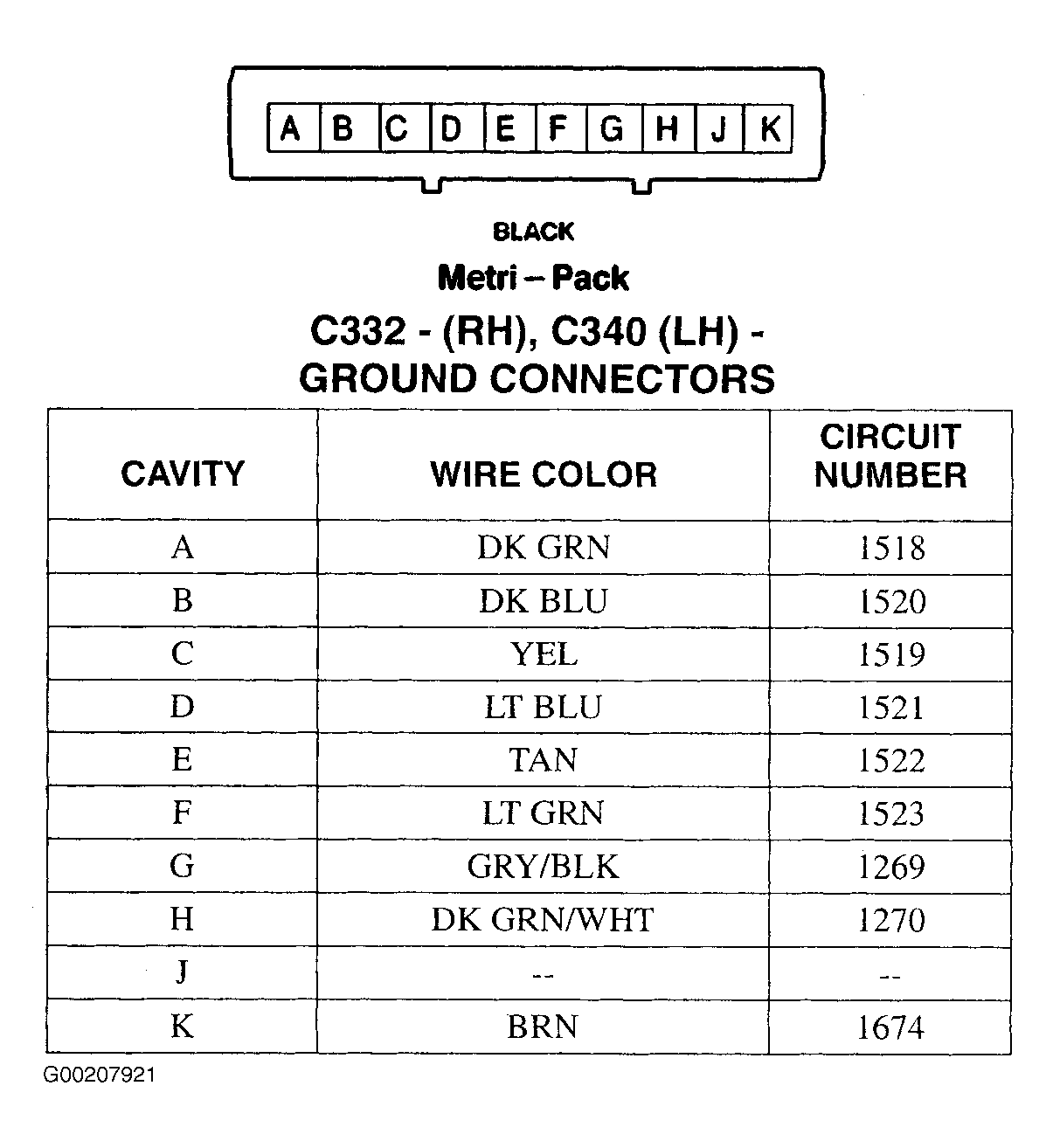

Fig 2: Identifying C332 & C340 Ground Connectors

Courtesy of GENERAL MOTORS CORP.

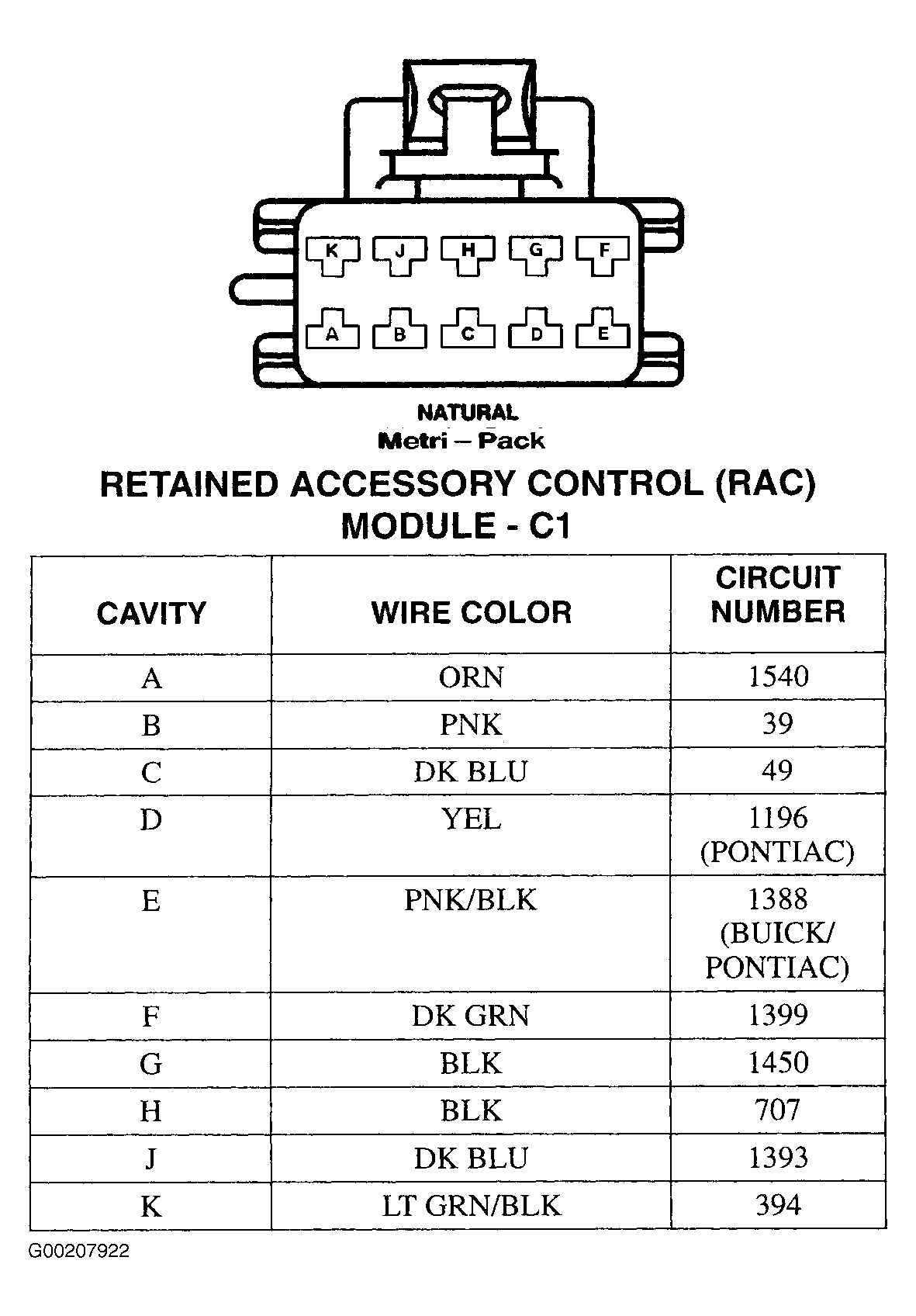

Fig 3: Identifying Retained Accessory Control (RAC) Module - C1

Courtesy of GENERAL MOTORS CORP.

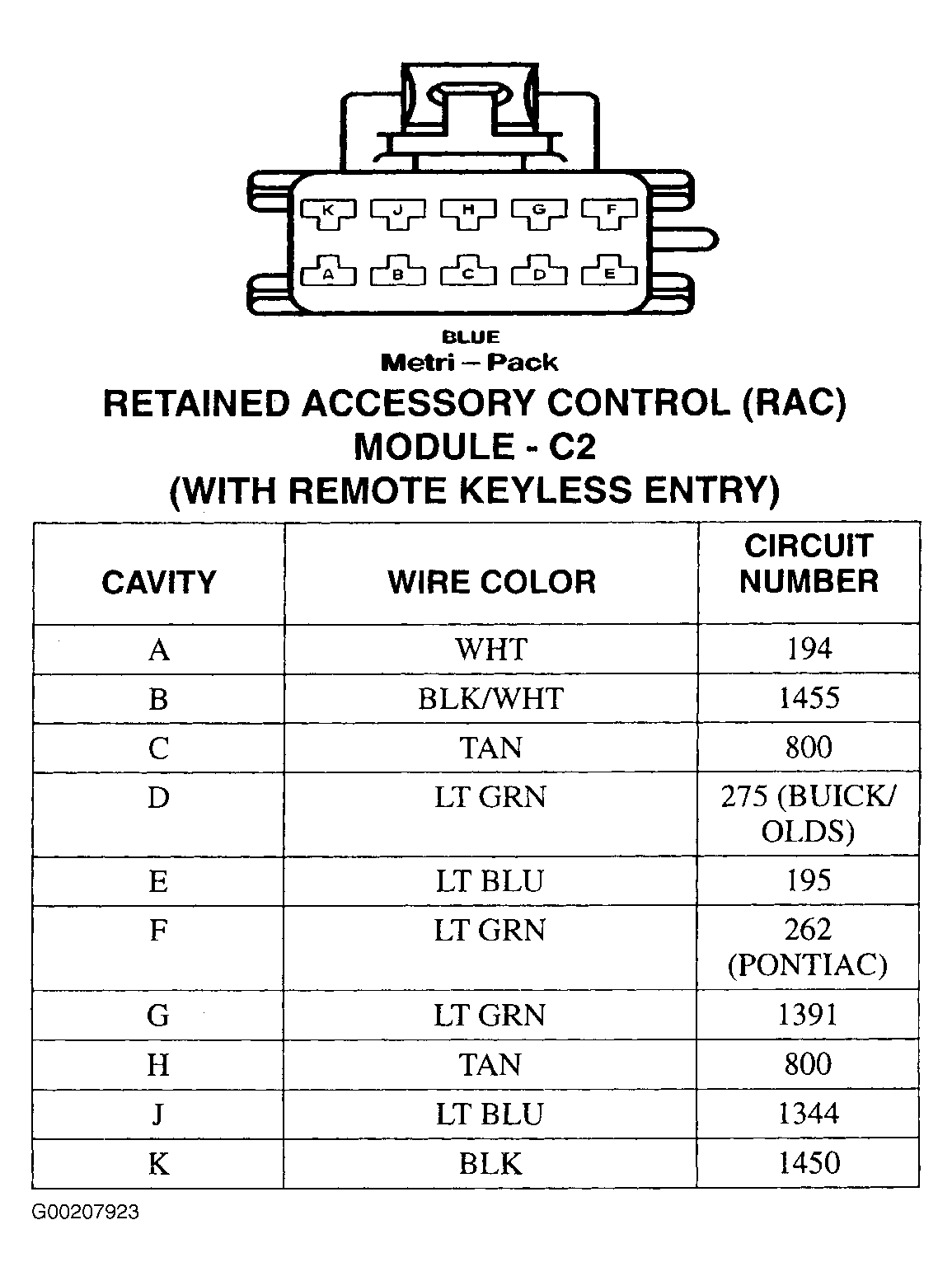

Fig 4: Identifying Retained Accessory Control (RAC) Module - C2 (With Remote Keyless Entry)

Courtesy of GENERAL MOTORS CORP.

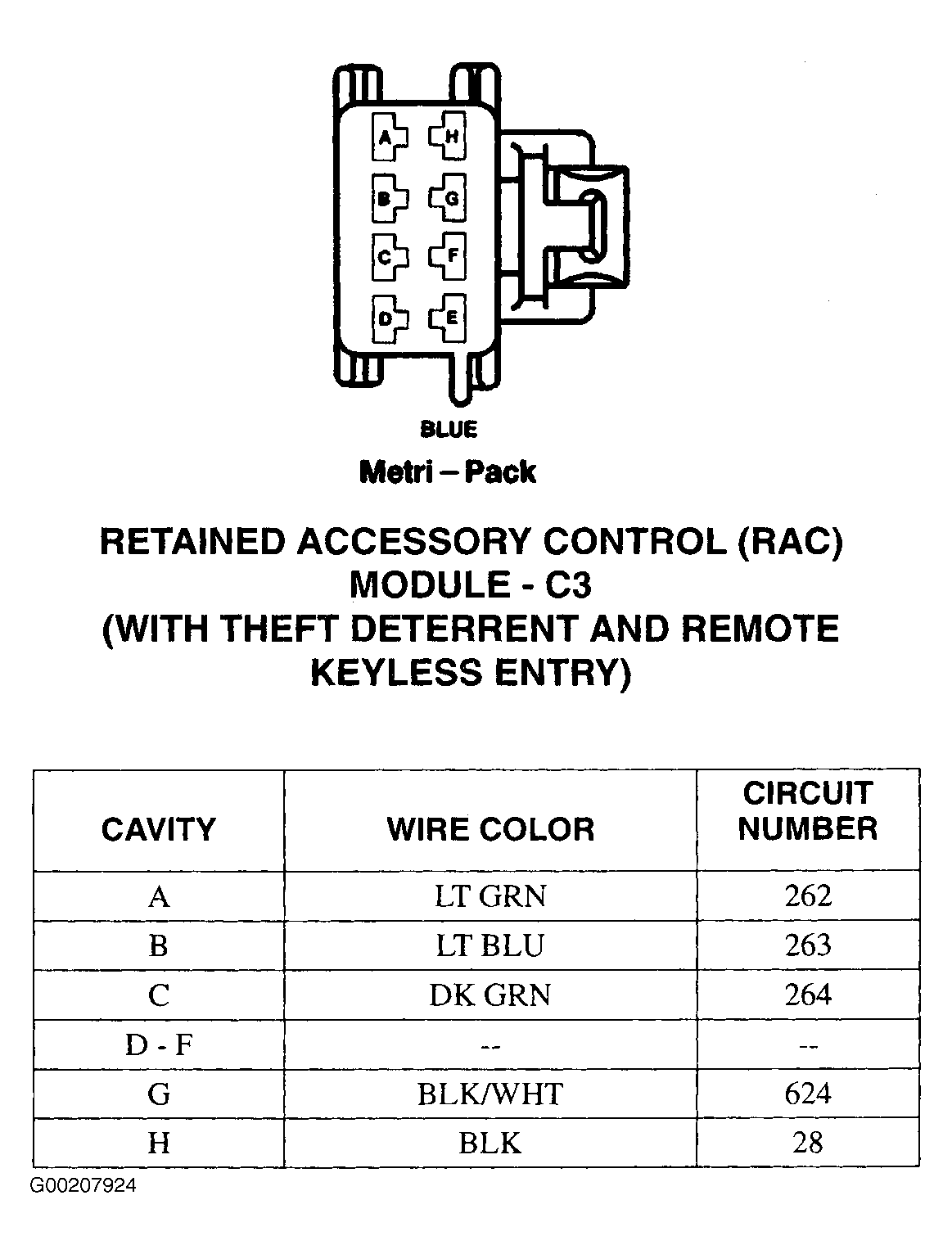

Fig 5: Identifying Retained Accessory Control (RAC) Module - C3 (With Theft Deterrent & Remote Keyless Entry)

Courtesy of GENERAL MOTORS CORP.
